Parts Catalog

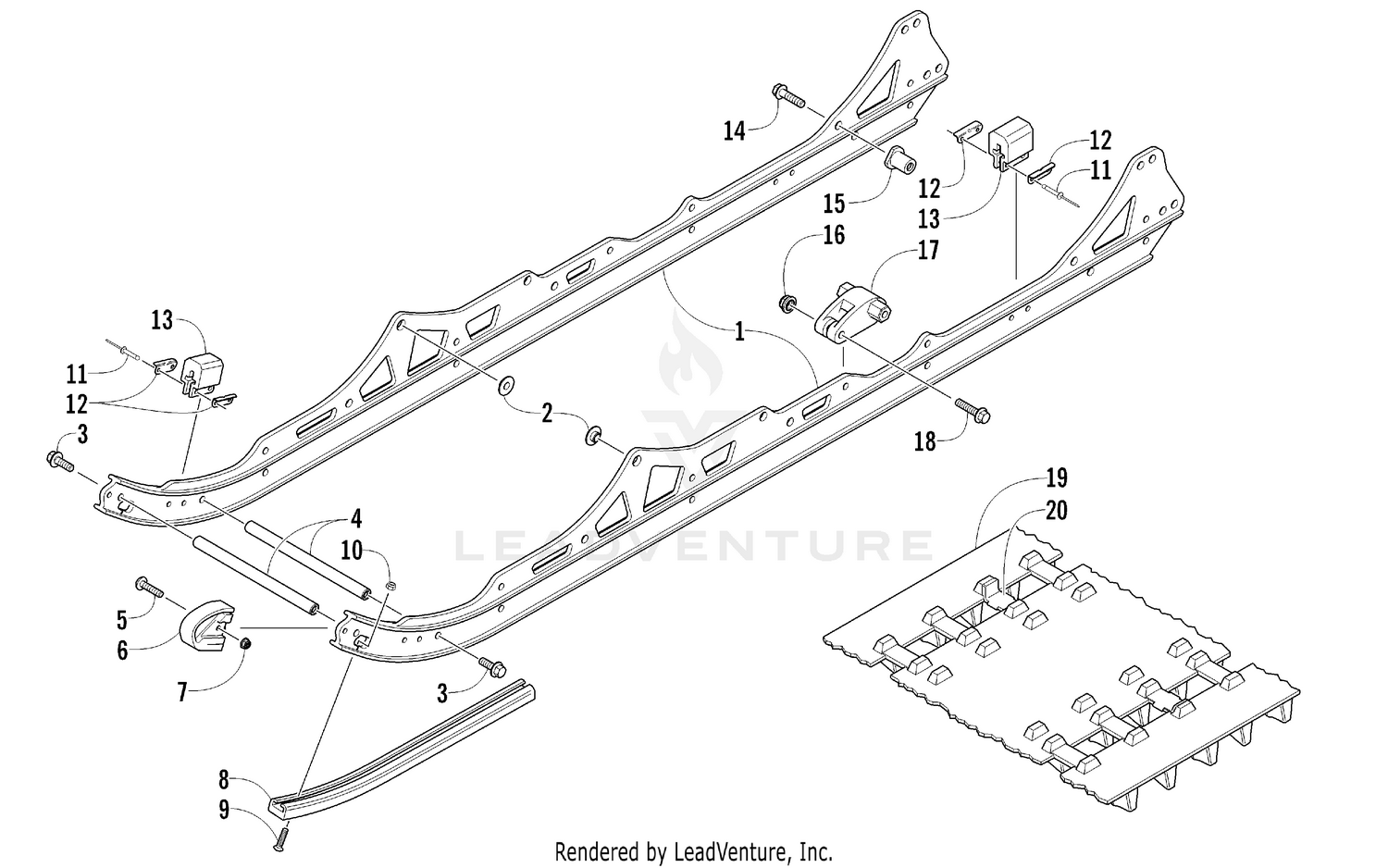

SLIDE RAIL AND TRACK ASSEMBLY [97557]

Parts (18)

Ref	Part Number	Description
1	2704-221	Rail, Formed - Black Price: $349.95
2	3604-266	Insert, Rail Price: $3.51
3	8408-826	Screw, Cap Price: $0.46
4	3604-425	Axle Price: $43.15
5	8476-625	Screw, Machine Price: $1.92
6	3604-003	End Cap, Slide Rail Price: $20.56
7	8427-602	Nut, Hex Price: $0.23
8	3604-424	Wearstrip, Slide Rail Price: $34.95
9	0123-859	Screw, Machine Price: $1.18
10	8047-366	Nut, Lock Price: $0.46
11	8060-633	Rivet, Blind - DH Price: $1.20
12	0604-967	Bracket, Retaining Price: $3.75
13	0604-918	Pad, Shock Price: $14.49
14	8408-031	Screw, Cap Price: $2.30
15	3604-979	Axle Price: $3.75
16	8427-802	Nut, Lock Price: $0.58
17	3604-513	Block, Spring Tension Price: $19.35
18	8408-850	Screw, Cap Price: $1.20
