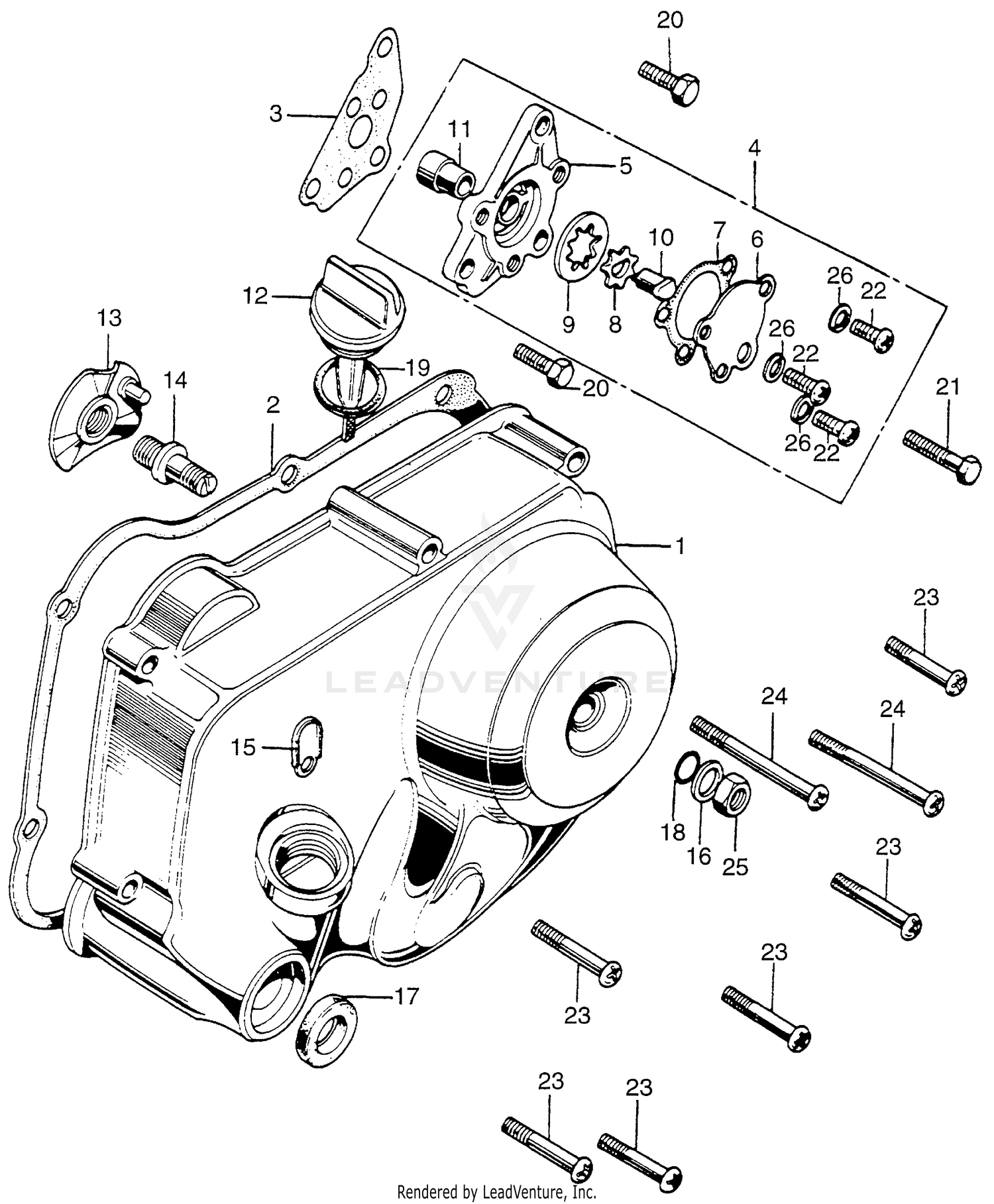

| Ref | Part Number | Description |
|---|
| 1 |
11330-045-020 |
COVER, R. CRANKCASE This part replaces 11330-045-010. Price: $120.23 |
| 2 |
11394-GW8-682 |
GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680. Price: $16.44 |
| 3 |
15119-035-020 |
GASKET, OIL PUMP BODY Price: $3.91 |
| 4 |
15300-035-000 |
PUMP ASSY., OIL Price: $44.07 |
| 5 |
15311-035-013 |
BODY, OIL PUMP (NOT AVAILABLE) Price: $17.61 |
| 6 |
15321-035-000 |
COVER, OIL PUMP (NOT AVAILABLE) Price: $3.12 |
| 7 |
15329-035-003 |
GASKET, OIL PUMP COVER This part replaces 15329-035-000. Price: $5.31 |
| 8 |
15331-035-004 |
ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) This part replaces 15331-035-000. Price: $3.76 |
| 9 |
15332-035-004 |
ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) This part replaces 15332-035-000. Price: $5.29 |
| 10 |
15382-035-003 |
DRIVESHAFT, OIL PUMP (NOT AVAILABLE) This part replaces 15382-035-000. Price: $3.76 |
| 11 |
15383-035-003 |
PIN, OIL PUMP KNOCK This part replaces 15383-035-000. Price: $1.50 |
| 12 |
15650-098-730 |
DIPSTICK, OIL This part replaces 15650-051-690. Price: $9.78 |
| 13 |
22830-041-000 |
PLATE, CLUTCH LIFTER Price: $14.22 |
| 14 |
22846-040-010 |
BOLT, CLUTCH ADJUSTING Price: $7.91 |
| 15 |
43458-045-670 |
GUIDE, RR. BRAKE CABLE (NOT AVAILABLE) Price: $9.09 |
| 16 |
90485-040-000 |
WASHER (8MM) Price: $2.02 |
| 17 |
91202-KFL-841 |
OIL SEAL (13.8X24X5) Price: $6.33 |
| 18 |
91306-HB3-003 |
O-RING (8X1.7) (ARAI) This part replaces 91303-001-000. Price: $2.16 |
| 19 |
91307-035-000 |
O-RING (18X3) Price: $3.40 |
| 19 |
91307-KF0-003 |
O-RING (18X3) (ARAI) Price: $3.35 |
| 20 |
92101-06016-0A |
BOLT, HEX. (6X16) This part replaces 92000-06016. Price: $1.53 |
| 21 |
92101-06020-0A |
BOLT, HEX. (6X20) This part replaces 92000-06020. Price: $1.08 |
| 23 |
93500-06040-0A |
SCREW, PAN (6X40) This part replaces 93500-06038. Price: $1.48 |
| 24 |
93500-06065-0A |
SCREW, PAN (6X65) This part replaces 93500-06065. Price: $1.68 |
| 25 |
94030-08000 |
NUT, HEX. (8MM) Price: $1.12 |
