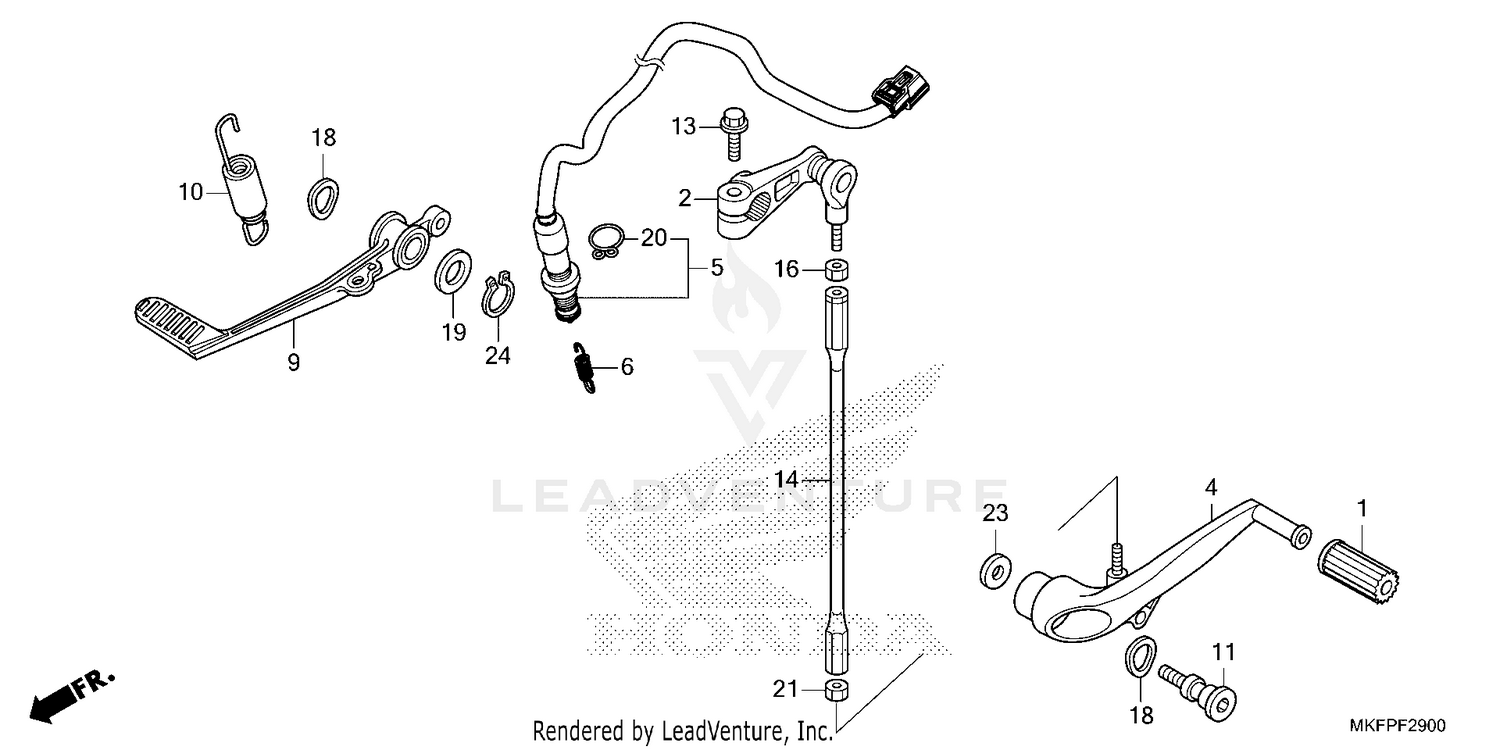

| Ref | Part Number | Description |
|---|
| 1 |
24705-MR7-000 |
RUBBER, GEARSHIFT PEDAL Price: $4.73 |
| 2 |
24710-MFL-D20 |
ARM, GEARSHIFT Price: $76.42 |
| 4 |
24720-MFL-305 |
PEDAL, GEARSHIFT (COO) This part replaces 24720-MFL-D20. Price: $110.55 |
| 5 |
35350-MKF-D41 |
SWITCH ASSY., RR. STOP Price: $40.65 |
| 6 |
35357-MBR-000 |
SPRING, STOP SWITCH Price: $2.73 |
| 9 |
46500-MFL-D20 |
PEDAL, RR. BRAKE Price: $133.65 |
| 10 |
46515-MBW-000 |
SPRING ASSY., BRAKE PEDAL Price: $8.82 |
| 11 |
90113-MCF-000 |
BOLT, CHANGE PIVOT Price: $10.00 |
| 13 |
90026-GHB-660 |
BOLT, FLANGE (6X20) Price: $2.65 |
| 14 |
90165-MFL-D20 |
BAR, CHANGE Price: $27.11 |
| 16 |
90201-700-000 |
NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD) Price: $0.87 |
| 18 |
90505-MBW-000 |
WASHER, CHANGE PEDAL WAVE Price: $5.05 |
| 19 |
90557-230-000 |
WASHER (15.2X25) Price: $2.73 |
| 20 |
90601-KAF-003 |
CLIP, SWITCH COVER Price: $3.05 |
| 21 |
94001-06020-0S |
NUT, HEX. (6MM) Price: $1.43 |
| 23 |
94103-08700 |
WASHER, PLAIN (8MM) Price: $0.98 |
