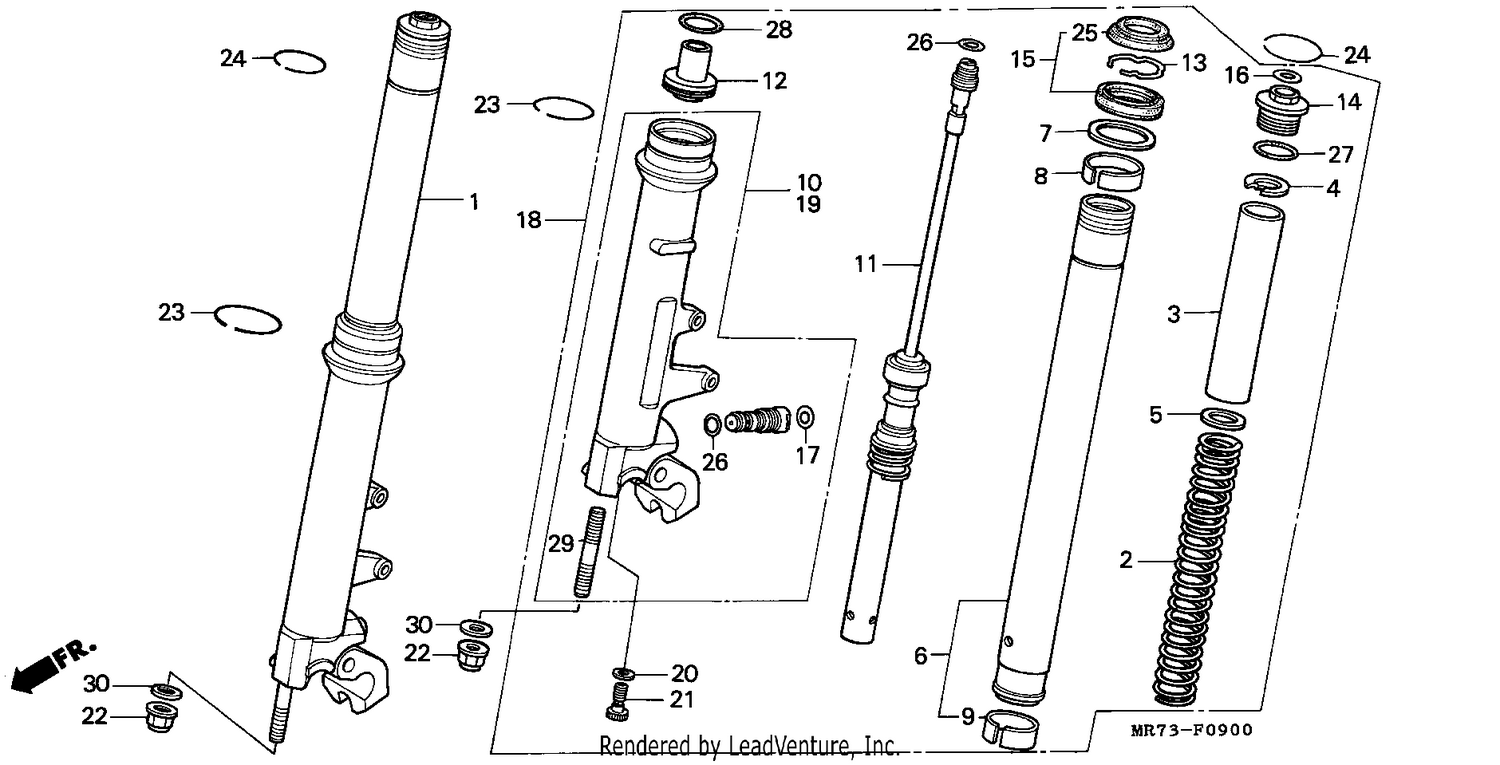

FRONT FORK

FRONT FORK

Parts (29)

RefPart NumberDescription
1 51400MR7601 FORK ASSY., R. FR. (SHOWA) Price: Call Us
2 51401MR7003 SPRING, FR. FORK (SHOWA) Price: Call Us
3 51402MR7003 COLLAR, SPRING Price: Call Us
4 51404MR7003 SEAT, SPRING Price: Call Us
5 51405KA4711 SEAT, SPRING Price: Call Us
6 51410MR7003 PIPE COMP., FR. FORK Price: Call Us
7 51412KA4711 RING, BACK UP Price: Call Us
8 51414MN1671 BUSH, GUIDE Price: Call Us
9 51415KS6831 BUSH, SLIDER (SHOWA) Price: Call Us
10 51421MR7003 CASE COMP., R. BOTTOM (SHOWA) Price: Call Us
11 51430MR7003 DAMPER COMP., FR. FORK Price: Call Us
12 51432MR7003 PIECE, OIL LOCK Price: Call Us
13 51447KA4711 RING, OIL SEAL STOPPER Price: Call Us
14 51454MR7003 BOLT, FR. FORK Price: Call Us
15 51490MR7305 SEAL SET, FR. FORK Price: Call Us
16 51496MR7003 LABEL Price: Call Us
17 51497MR7003 LABEL C Price: Call Us
18 51500MR7601 FORK ASSY., L. FR. (SHOWA) Price: Call Us
19 51521MR7003 CASE COMP., L. BOTTOM (SHOWA) Price: Call Us
20 52442KA3711 WASHER, SPECIAL, 10MM Price: Call Us
21 90126MR7003 BOLT, SOCKET, 10X35 Price: Call Us
22 90306181761 NUT, FLANGE, 12MM Price: Call Us
23 90605MR7000 RING, SNAP Price: Call Us
24 90657MR7000 RING, STOPPER Price: Call Us
25 91254MR7003 SEAL, DUST Price: Call Us
26 91311MR7003 O-RING, 13.8X2.4 Price: Call Us
27 91356KA4711 O-RING, 35.2X2.4 Price: Call Us
28 91358MA6003 O-RING, 39.5X2.0 Price: Call Us
29 92900120450E BOLT, STUD, 12X45 Price: Call Us
