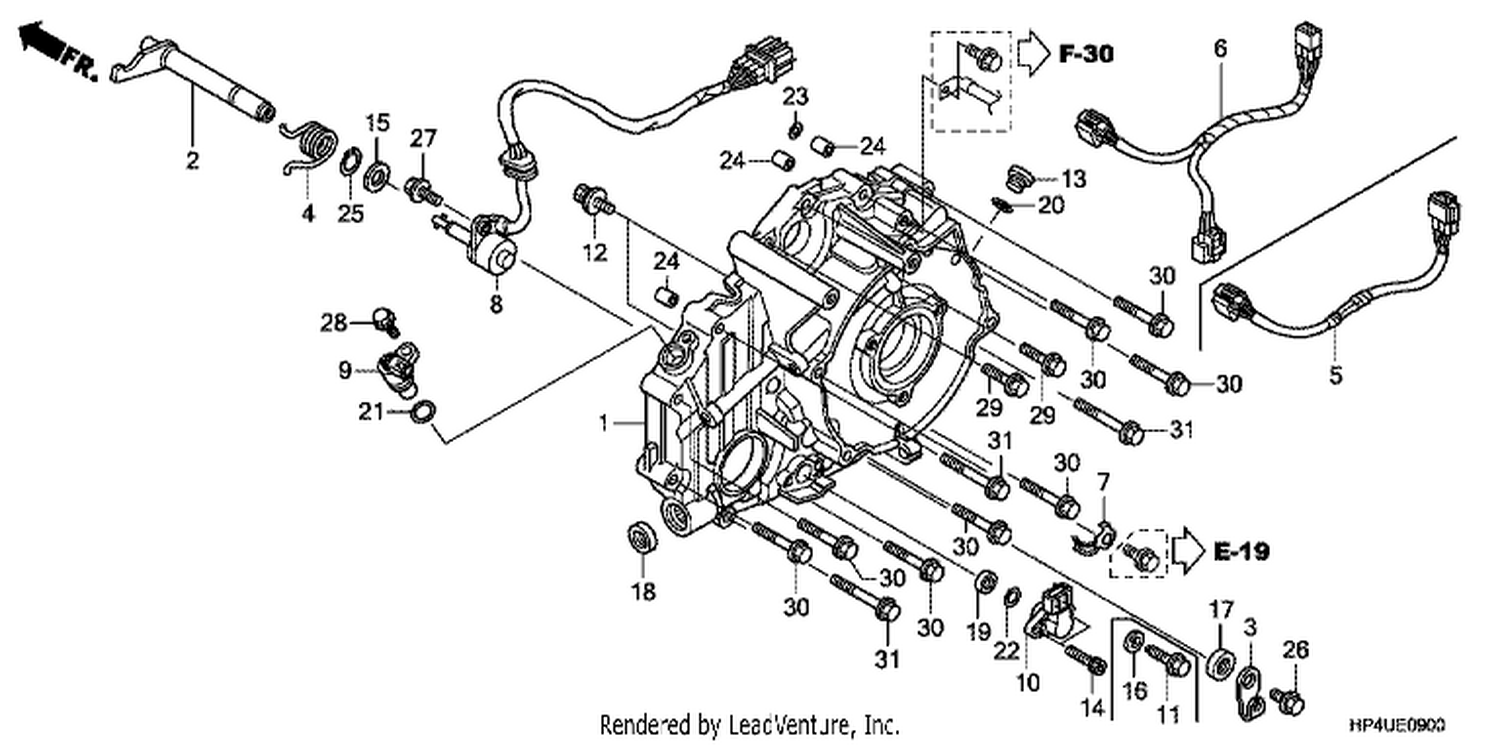

REAR CRANKCASE COVER

 REAR CRANKCASE COVER

Parts (26)

RefPart NumberDescription
1 11340HP5600 COVER COMP., RR. CRANKCASE Price: Call Us
2 24860HP5000 SHAFT COMP. A, REVERSE STOPPER Price: Call Us
3 24865HP5600 LEVER, REVERSE STOPPER Price: Call Us
4 24867HP5600 SPRING, REVERSE STOPPER Price: Call Us
6 32101HP5A50 SUB HARNESS, ENGINE Price: Call Us
7 32921HN5670 CLIP, A.C. GENERATOR CORD Price: Call Us
8 35759HP5600 SWITCH ASSY., CHANGE Price: Call Us
9 37700HP5601 SENSOR ASSY., SPEED Price: Call Us
10 38800HP0A11 SENSOR ASSY., ANGLE Price: Call Us
12 90021MM5000 BOLT-WASHER, 6X12 Price: Call Us
13 90084KY2000 CAP, 14MM Price: Call Us
14 90116HP5600 BOLT, SOCKET, 5X20 Price: Call Us
15 90452166600 WASHER, THRUST, 12MM Price: Call Us
17 91201965000 OIL SEAL, 12X22X5 Price: Call Us
19 91208689005 OIL SEAL, 8X16X6 (NOK) Price: Call Us
20 91303377000 O-RING, 13.8X2.5 Price: Call Us
21 91303KF0003 O-RING, 14.8X2.4 (ARAI) Price: Call Us
22 91308HN0A10 O-RING, ANGLE SENSOR Price: Call Us
23 91313MN5004 O-RING, 7.8X1.9 (NOK) Price: Call Us
24 9430108140 DOWEL PIN, 8X14 Price: Call Us
25 9451012000 CIRCLIP, EXTERNAL, 12MM Price: Call Us
26 957010601200 BOLT, FLANGE, 6X12 Price: Call Us
27 957010601400 BOLT, FLANGE, 6X14 Price: Call Us
28 957010601600 BOLT, FLANGE, 6X16 Price: Call Us
29 957010602500 BOLT, FLANGE, 6X25 Price: Call Us
30 957010604000 BOLT, FLANGE, 6X40 Price: Call Us
