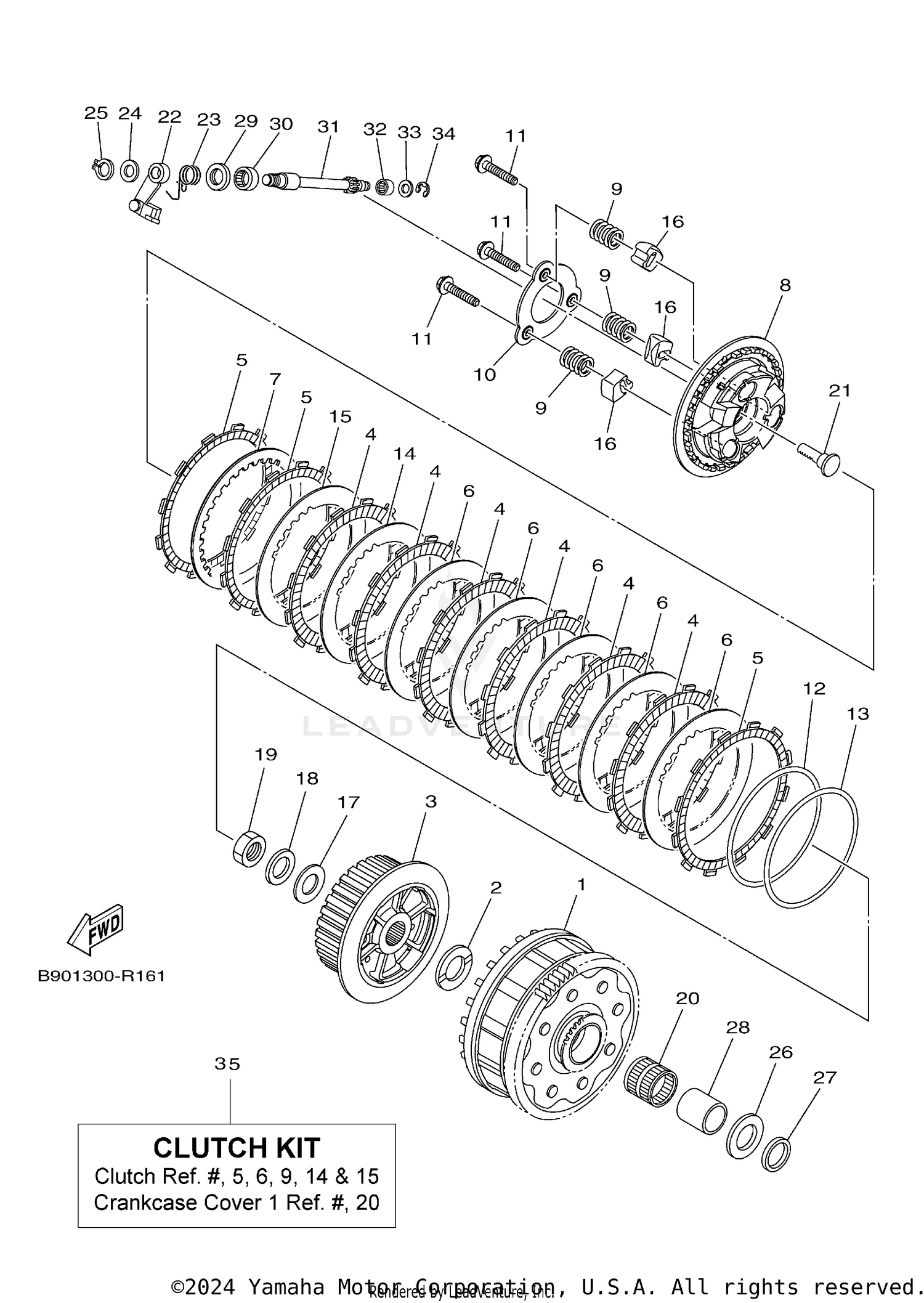

| Ref | Part Number | Description |
|---|
| 1 |
B7N-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. This part replaces 1RC-16150-00-00. Price: $520.99 |
| 2 |
5VY-16154-00-00 |
PLATE, THRUST 1 Price: $18.99 |
| 3 |
B90-16371-00-00 |
BOSS, CLUTCH Price: $169.99 |
| 4 |
5TA-16321-00-00 |
PLATE, FRICTION Price: $28.99 |
| 7 |
1TD-16324-00-00 |
PLATE, CLUTCH 1 Price: $10.99 |
| 8 |
B90-16350-00-00 |
PRESSURE PLATE ASSY Price: $126.99 |
| 10 |
B90-16352-00-00 |
PLATE, PRESSURE 2 Price: $11.49 |
| 11 |
2CR-16337-00-00 |
SCREW, SPRING Price: $4.70 |
| 12 |
1TD-16383-01-00 |
SPRING.,CUSHION This part replaces 1TD-16383-00-00. Price: $33.99 |
| 13 |
1TD-16384-00-00 |
PLATE, SEAT Price: $18.99 |
| 16 |
1TD-16178-00-00 |
ABSORBER 3 Price: $32.99 |
| 17 |
90201-20030-00 |
WASHER, PLATE Price: $8.49 |
| 18 |
90208-20001-00 |
WASHER, CONICAL SPRING Price: $18.49 |
| 19 |
90179-20020-00 |
NUT This part replaces 90179-20011-00. Price: $22.99 |
| 20 |
93310-33277-00 |
BEARING Price: $50.99 |
| 21 |
4XV-16356-01-00 |
ROD, PUSH 1 Price: $63.99 |
| 22 |
1RC-16340-01-00 |
PUSH LEVER ASSY This part replaces 1RC-16340-00-00. Price: $31.99 |
| 23 |
90508-18051-00 |
SPRING, TORSION Price: $8.49 |
| 24 |
90201-10029-00 |
WASHER, PLATE Price: $8.49 |
| 25 |
99009-10400-00 |
CIRCLIP Price: $5.49 |
| 26 |
5VY-16164-00-00 |
PLATE, THRUST 2 Price: $22.99 |
| 27 |
2C0-16164-00-00 |
PLATE, THRUST 2 Price: $10.99 |
| 28 |
1RC-16181-00-00 |
SPACER 1 Price: $66.99 |
| 29 |
93102-15212-00 |
OIL SEAL Price: $10.49 |
| 30 |
93315-21570-00 |
BEARING Price: $18.49 |
| 31 |
5VY-16382-10-00 |
AXLE, PUSH LEVER Price: $79.99 |
| 32 |
93317-11096-00 |
BEARING Price: $25.99 |
| 33 |
92907-08600-00 |
WASHER, PLATE Price: $3.25 |
| 34 |
99080-07600-00 |
CIRCLIP This part replaces 99001-07600-00. Price: $3.55 |
