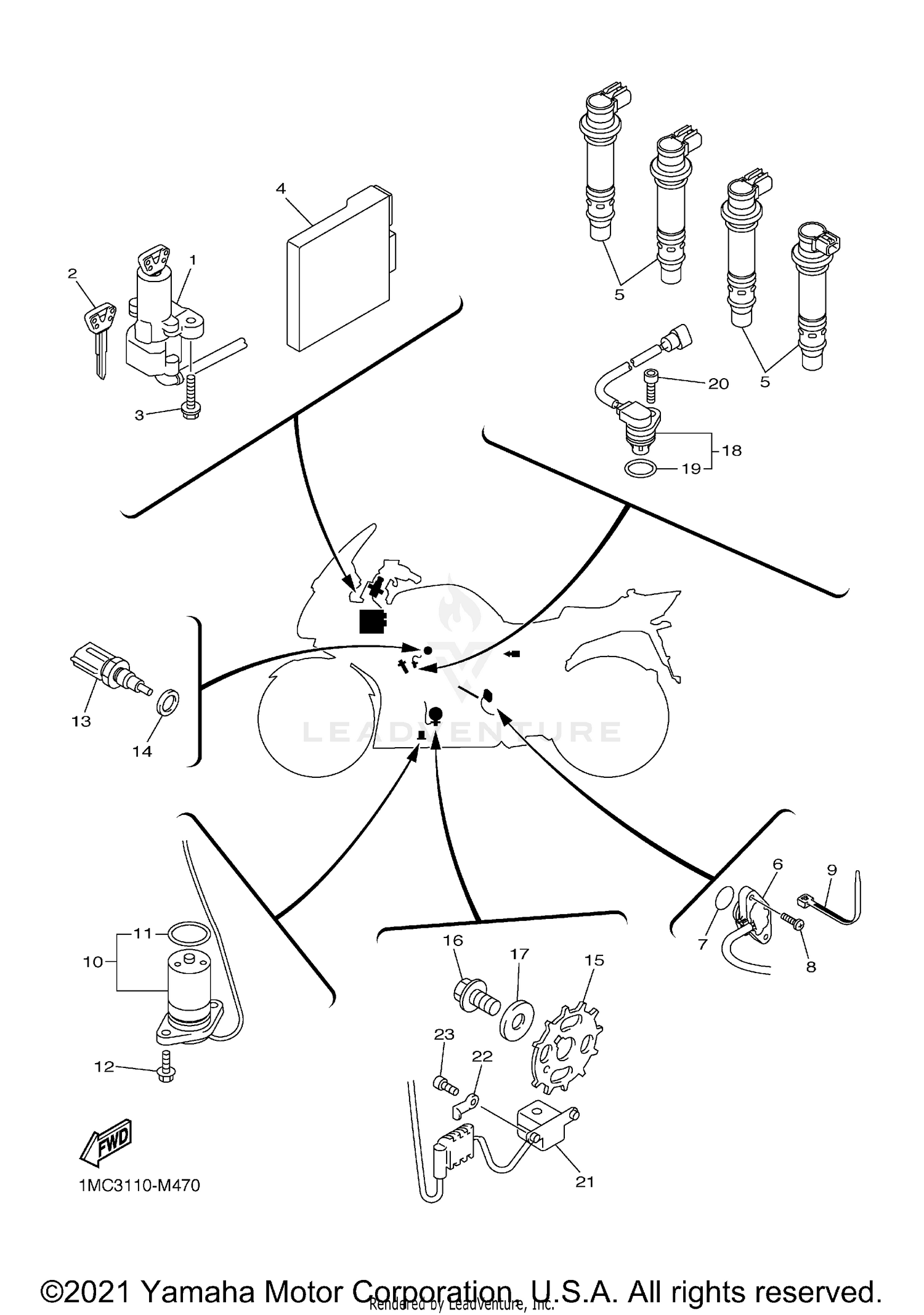

ELECTRICAL 1
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B9R-82501-11-00 | MAIN SWITCH STEERING LOCK This part replaces B9R-82501-10-00. Price: $188.99 |
| 3 | 90109-08196-00 | BOLT This part replaces 90109-08195-00. Price: $9.49 |
| 4 | B88-8591A-81-00 | ENGINE CONTROL UNIT ASSY This part replaces B88-8591A-51-00. Price: $1,212.99 |
| 5 | 1MC-82310-00-00 | IGNITION COIL ASSY Price: $134.99 |
| 6 | B88-82540-01-00 | NEUTRAL SWITCH ASSY This part replaces B88-82540-00-00. Price: $79.99 |
| 7 | 93210-21001-00 | O-RING Price: $6.49 |
| 8 | 90110-05038-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 9 | 1UA-82591-00-00 | BAND Price: $5.49 |
| 10 | 1MC-85720-01-00 | OIL LEVEL GAUGE ASSY Price: $132.99 |
| 11 | 4XV-8A8E0-00-00 | O-RING Price: $15.49 |
| 12 | 95022-06016-00 | BOLT, FLANGE Price: $3.90 |
| 13 | 5YP-85790-00-00 | THERMOSENSOR ASSY Price: $70.99 |
| 14 | 90201-12790-00 | WASHER, PLATE Price: $10.49 |
| 15 | 1MC-81673-00-00 | ROTOR Price: $39.99 |
| 16 | 90105-10153-00 | BOLT, FLANGE Price: $6.49 |
| 17 | 90201-10065-00 | WASHER, PLATE Price: $2.45 |
| 18 | 1MC-85896-01-00 | SENSOR, CAM POSITION Price: $111.99 |
| 19 | 4D9-81168-00-00 | O-RING Price: $7.49 |
| 20 | 91317-06016-00 | BOLT (4MY) This part replaces 90110-06193-00. Price: $1.25 |
| 21 | 3P6-81670-00-00 | PICK-UP ASSY Price: $133.99 |
| 22 | 90465-08055-00 | CLAMP Price: $4.00 |
