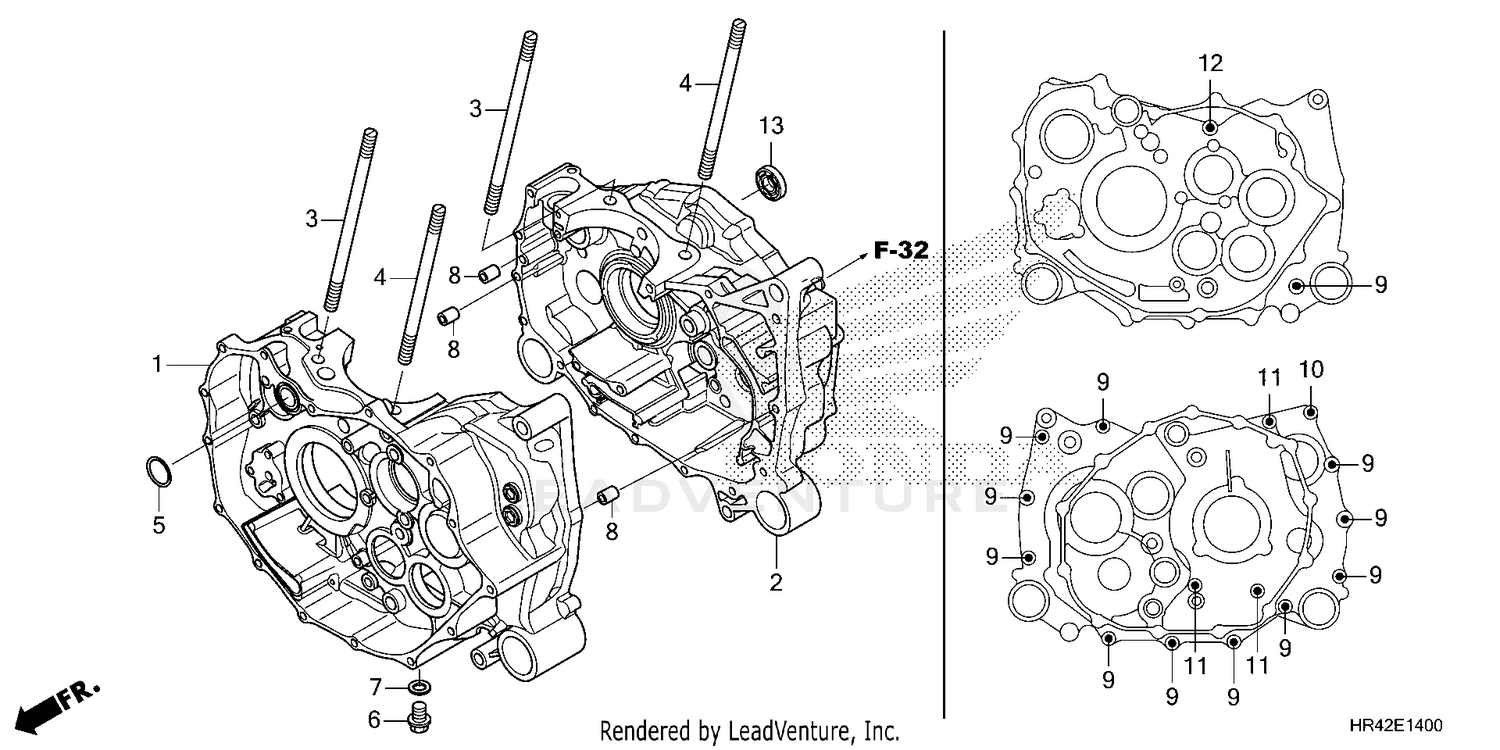

| Ref | Part Number | Description |
|---|
| 1 |
11100-HR5-A70 |
CRANKCASE, FR. Price: $537.47 |
| 2 |
11200-HR5-A70 |
CRANKCASE, RR. Price: $537.47 |
| 3 |
90013-HR0-F00 |
BOLT, STUD (10X177) Price: $14.95 |
| 4 |
90014-HR0-F00 |
BOLT, STUD (10X147) Price: $13.58 |
| 5 |
91304-HP5-601 |
O-RING (20.6X1.9) Price: $3.71 |
| 6 |
92800-12000 |
BOLT, DRAIN PLUG (12MM) Price: $4.05 |
| 7 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 8 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 9 |
95701-06040-00 |
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) Price: $1.97 |
| 10 |
95701-06060-00 |
BOLT, FLANGE (6X60) Price: $0.36 |
| 11 |
95701-06070-00 |
BOLT, FLANGE (6X70) Price: $2.40 |
| 12 |
95701-06085-00 |
BOLT, FLANGE (6X85) (Honda Code 2545317) Price: $1.96 |
