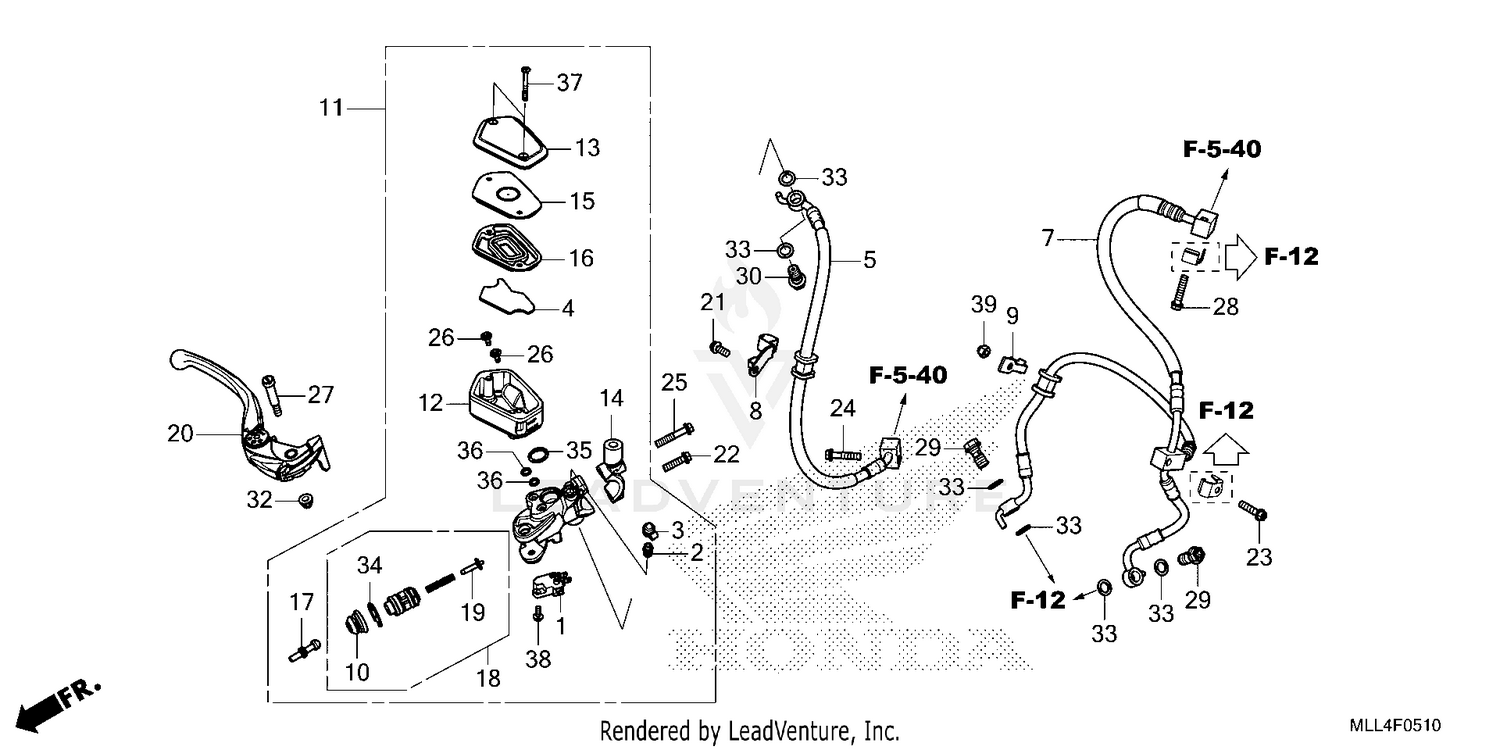

| Ref | Part Number | Description |
|---|
| 1 |
35340-MGS-D31 |
SWITCH ASSY., FR. STOP Price: $22.42 |
| 2 |
43352-568-003 |
SCREW, BLEEDER (NISSIN) Price: $9.98 |
| 3 |
43353-461-771 |
CAP, BLEEDER Price: $6.35 |
| 4 |
43523-MKJ-D01 |
FLOAT Price: $3.84 |
| 5 |
45125-MLL-D11 |
HOSE A, FR. BRAKE (NOT AVAILABLE) Price: $44.56 |
| 7 |
45128-MLL-D11 |
HOSE D, FR. BRAKE (NOT AVAILABLE) Price: $108.24 |
| 8 |
45155-MLL-D00 |
CLAMP A, FR. BRAKE HOSE (NOT AVAILABLE) Price: $5.56 |
| 9 |
45158-MFL-D00 |
CLAMP A, FR. BRAKE HOSE Price: $4.16 |
| 10 |
45504-MCF-006 |
BOOT Price: $13.56 |
| 11 |
45510-MKJ-D01 |
MASTER CYLINDER SUB-ASSY., FR. Price: $359.76 |
| 12 |
45511-MKJ-D01 |
TANK, OIL Price: $21.33 |
| 13 |
45513-MKJ-D01 |
CAP Price: $37.33 |
| 14 |
45518-MFN-D01 |
HOLDER, MASTER CYLINDER Price: $15.04 |
| 15 |
45518-MGE-006 |
PLATE, DIAPHRAGM Price: $9.20 |
| 16 |
45520-MGE-006 |
DIAPHRAGM Price: $17.31 |
| 17 |
45525-MEL-016 |
ROD, PUSH Price: $17.80 |
| 18 |
45530-MFN-D01 |
MASTER CYLINDER SET Price: $59.65 |
| 19 |
46140-MEL-006 |
GUIDE, SPRING Price: $5.07 |
| 20 |
53170-MLV-J01 |
LEVER, R. HANDLE Price: $61.25 |
| 21 |
90021-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 22 |
90021-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.49 |
| 23 |
90021-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 24 |
90021-GHB-690 |
BOLT, FLANGE (6X28) Price: $2.55 |
| 25 |
90021-GHB-710 |
BOLT, FLANGE (6X32) Price: $2.84 |
| 26 |
90101-MR7-006 |
SCREW, TRIPLE (4X11) Price: $3.55 |
| 27 |
90114-MCF-006 |
BOLT, HANDLE LEVER Price: $7.31 |
| 28 |
90114-MCS-G00 |
BOLT, FLANGE (6X28) Price: $1.60 |
| 29 |
90145-MKR-D10 |
BOLT, OIL (10X20) Price: $7.44 |
| 30 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 32 |
90302-GJB-J40 |
NUT, CAP (6MM) Price: $1.87 |
| 33 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 34 |
90651-MCF-006 |
CIRCLIP Price: $2.58 |
| 35 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 36 |
91355-MG9-006 |
O-RING (5.8X1.9) (NISSIN) Price: $3.95 |
| 37 |
93600-04035-1G |
SCREW, FLAT (4X35) Price: $0.55 |
| 38 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
