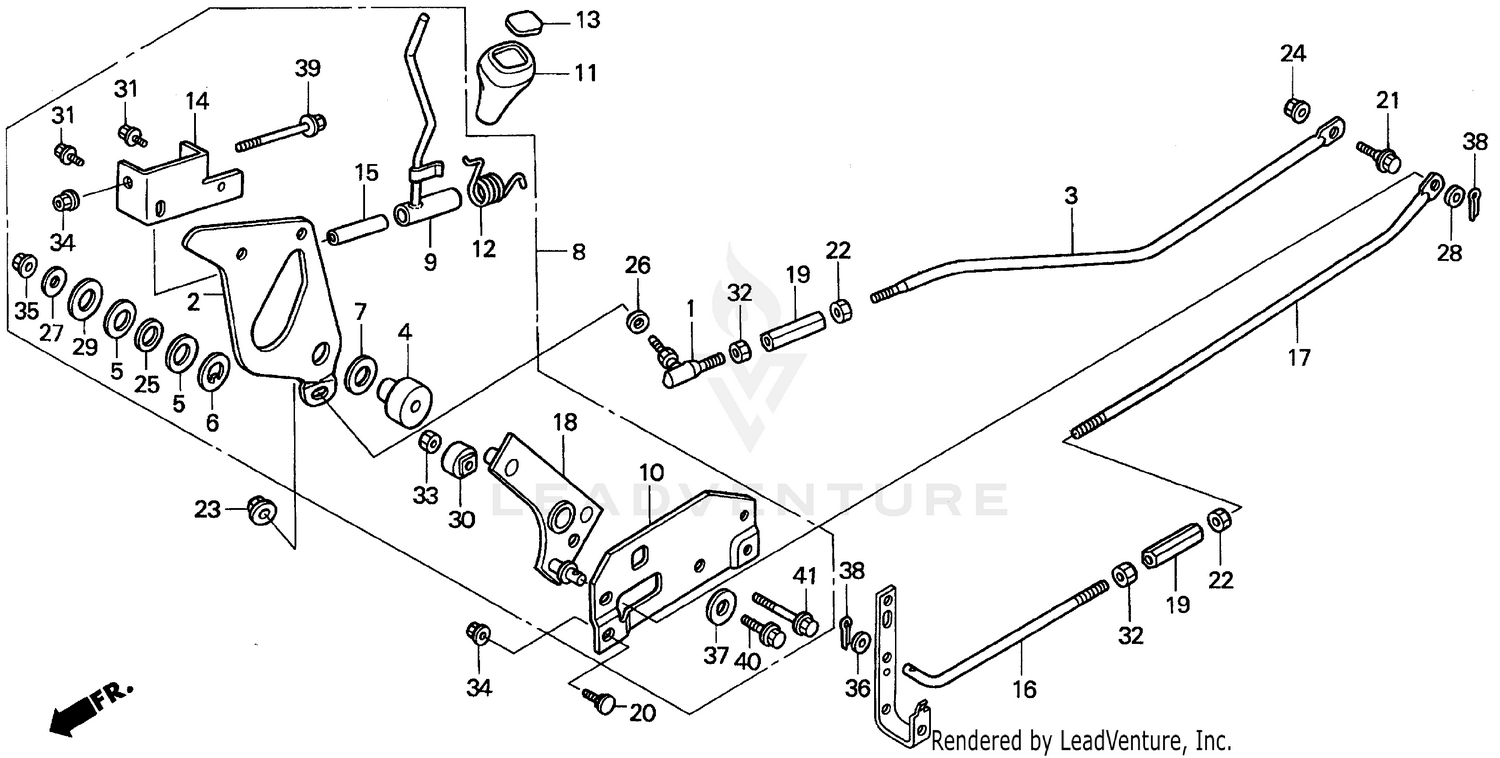

| Ref | Part Number | Description |
|---|
| 1 |
24125-772-700 |
JOINT, R. BALL Price: Call Us |
| 2 |
24361-772-700 |
SEE PART DETAILS - PRI; ARM, CHANGE Price: $14.70 |
| 3 |
24363-772-700 |
SEE PART DETAILS - PRI; ROD, GEARSHIFT Price: $6.82 |
| 4 |
24366-772-700 |
SHAFT, CHANGE ARM Price: $8.28 |
| 5 |
24372-772-700 |
SPRING, FRICTION Price: $24.96 |
| 6 |
24376-772-701 |
SEE PART DETAILS - PRI; WASHER, FRICTION SETTING Price: $21.74 |
| 7 |
24379-772-701 |
WASHER, FRICTION Price: $28.40 |
| 8 |
24400-772-700 |
LEVER ASSY., CHANGE (NOT AVAILABLE) Price: $16.66 |
| 9 |
24410-772-700 |
LEVER, CHANGE Price: $34.10 |
| 10 |
24413-772-700 |
HOLDER, CHANGE LEVER (NOT AVAILABLE) Price: Call Us |
| 11 |
24415-767-000 |
GRIP, CHANGE LEVER Price: $21.02 |
| 12 |
24416-772-000 |
SPRING, CHANGE LEVER Price: $8.94 |
| 13 |
24417-767-000 |
KNOB, CHANGE LEVER GRIP Price: $6.16 |
| 14 |
24427-772-700 |
BRACKET, CHANGE LEVER Price: $2.66 |
| 15 |
24429-763-D00 |
COLLAR, CHANGE LEVER JOINT Price: $7.10 |
| 16 |
46571-772-700 |
ROD, RETURN (A) Price: $8.18 |
| 17 |
46572-772-700 |
ROD, RETURN (B) Price: $8.30 |
| 18 |
46576-772-700 |
ARM A, RETURN Price: $64.04 |
| 19 |
47268-772-700 |
JOINT (12MM) Price: $11.82 |
| 20 |
90101-750-920 |
BOLT, SPECIAL (8X20) Price: $3.04 |
| 21 |
90105-VA5-000 |
BOLT, ADJUSTING CENTER Price: $6.06 |
| 22 |
90301-752-000 |
NUT, L. HEX. (12MM) Price: $2.82 |
| 23 |
90308-772-701 |
SEE PART DETAILS - PRI; NUT, FLANGE (5/16-24UNF) Price: $1.70 |
| 24 |
90309-GE2-000 |
NUT, FLANGE (8MM) Price: $5.18 |
| 25 |
90401-KW7-900 |
WASHER, THRUST (26MM) Price: $5.36 |
| 26 |
90402-822-000 |
WASHER, HEAD (8MM) (Honda Code 0122101). Price: $1.80 |
| 27 |
90502-GV4-900 |
WASHER (12.5X33) Price: $2.54 |
| 28 |
90505-116-670 |
WASHER (13X20) Price: $3.92 |
| 29 |
90506-772-700 |
WASHER, SPRING SETTING Price: $2.34 |
| 30 |
91557-772-700 |
BUSH (12.1X23X20) Price: $16.68 |
| 31 |
93404-08016-08 |
SEE PART DETAILS - PRI; BOLT-WASHER (8X16) Price: $2.34 |
| 32 |
94001-12000-0S |
SEE PART DETAILS - PRI; NUT, HEX. (12MM) Price: $2.18 |
| 33 |
94030-12000 |
NUT, HEX. (12MM) Price: $1.52 |
| 34 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 35 |
94050-12000 |
NUT, FLANGE (12MM) Price: $1.30 |
| 36 |
94101-12800 |
WASHER, PLAIN (12MM) Price: $1.54 |
| 37 |
94103-12800 |
WASHER, PLAIN (12MM) Price: $1.64 |
| 38 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.30 |
| 39 |
95701-08080-08 |
BOLT, FLANGE (8X80) Price: $3.52 |
| 40 |
95701-12025-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (12X25) Price: $4.54 |
