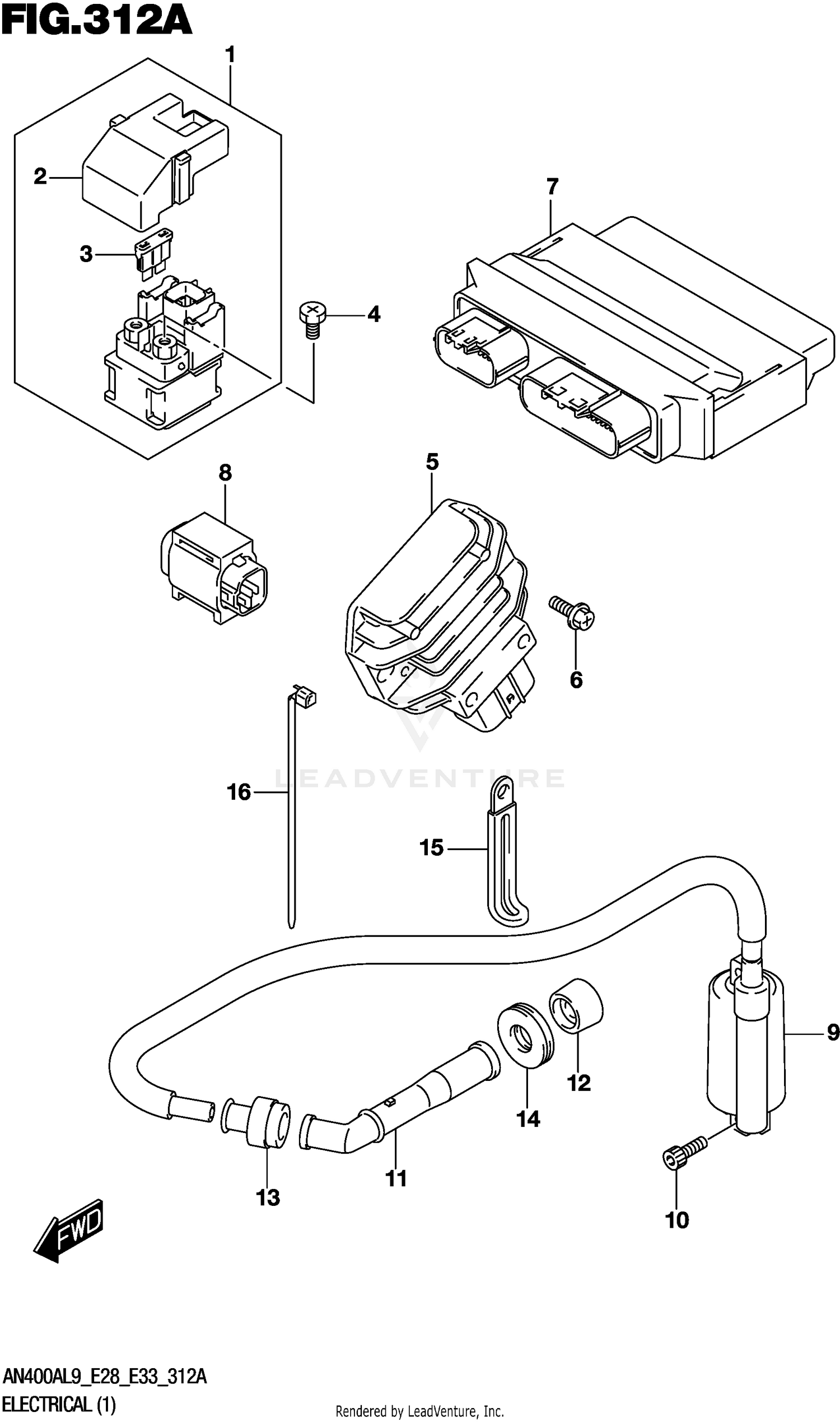

ELECTRICAL (AN400AL9 E33)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-21E30 | RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20. Price: $83.16 |
| 4 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 5 | 32800-19K03 | RECTIFIER ASSY This part replaces 32800-19K02. Price: $225.31 |
| 6 | 02162-0620C | SCREW Price: $2.10 |
| 7 | 32920-19K31 | CONTROL UNIT, FI Price: $808.49 |
| 8 | 33960-06G10 | SENSOR ASSY, FUEL CUT Price: $111.08 |
| 9 | 33410-05H00 | COIL ASSY, IGNITION Price: $176.66 |
| 10 | 07130-0525A | BOLT Price: $2.77 |
| 11 | 33510-48B10 | CAP,SPARK PLUG Price: $39.25 |
| 12 | 33541-23E10 | SEAL,SPARK PLUG Price: $8.32 |
| 13 | 33542-38B00 | SEAL, HIGH TENSION Price: $5.36 |
| 14 | 33543-33E01 | COVER,SPARK PLUG CAP Price: $5.61 |
| 15 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
