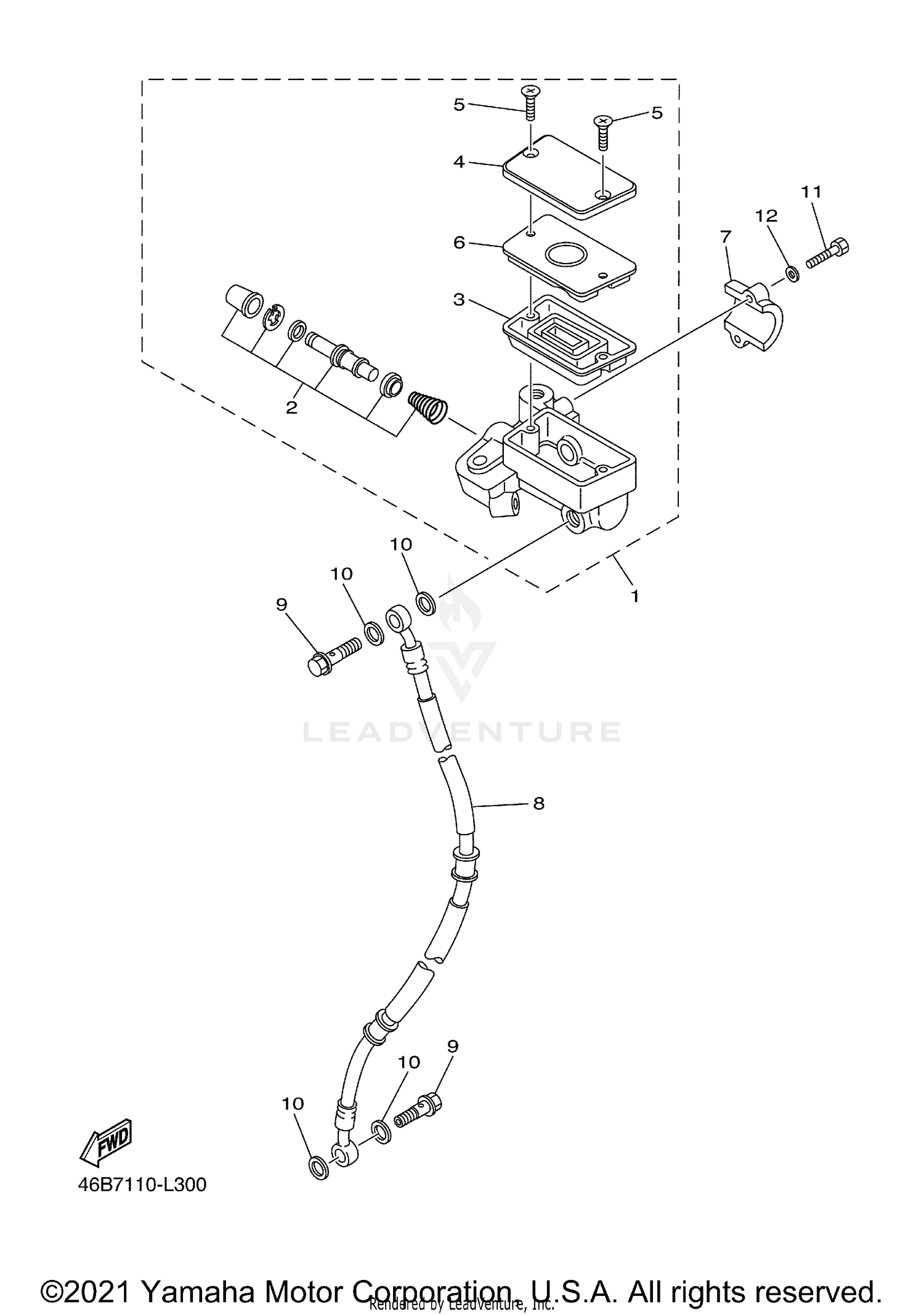

FRONT MASTER CYLINDER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 19D-25870-00-00 | MASTER CYLINDER SUB ASSY Price: $198.99 |
| 2 | 23L-W0041-00-00 | CYLINDER KIT, MASTER Price: $133.99 |
| 3 | 4L0-25854-00-00 | DIAPHRAGM, RESERVOIR Price: $30.99 |
| 4 | 19D-25852-00-00 | CAP, RESERVOIR Price: $38.99 |
| 5 | 98707-04012-00 | SCREW, FLAT HEAD Price: $1.85 |
| 6 | 19D-25855-00-00 | BUSH, DIAPHRAGM Price: $17.49 |
| 7 | 4L0-25867-00-00 | BRACKET, MASTER CYLINDER Price: $35.99 |
| 8 | 46B-25872-00-00 | HOSE, BRAKE 1 Price: $75.99 |
| 9 | 90401-10020-00 | BOLT, UNION Price: $10.49 |
| 10 | 90430-10005-00 | GASKET Price: $9.49 |
| 11 | 97017-06025-00 | BOLT This part replaces 97007-06025-00. Price: $4.55 |
