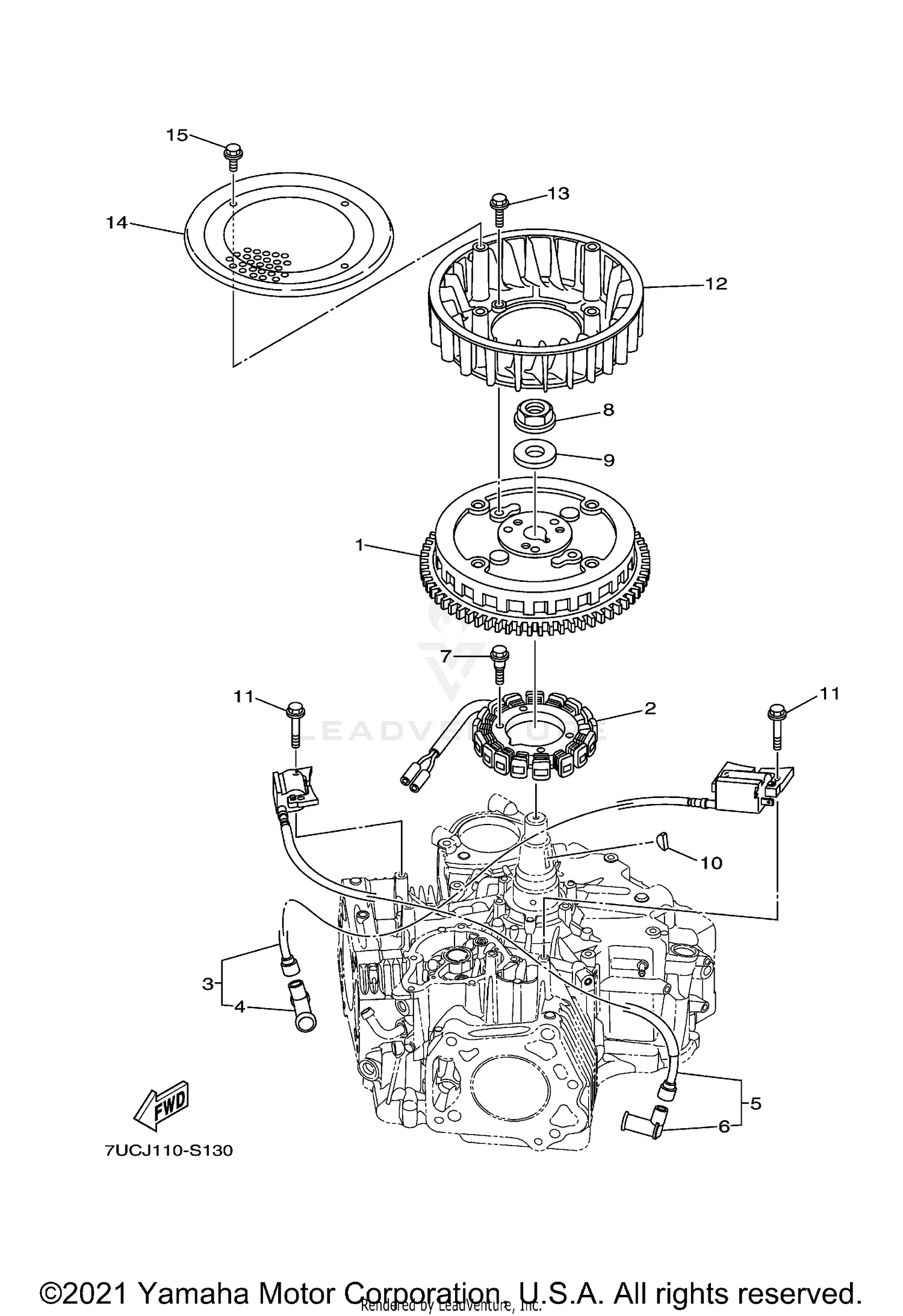

MAGNETO
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7UC-H5650-00-00 | ROTOR ASSY Price: $258.99 |
| 2 | 7UD-H1410-20-00 | STATOR ASSY Price: $107.99 |
| 3 | 7UC-H5640-01-00 | T.C.I. UNIT ASSY This part replaces 7UC-H5640-00-00. Price: $61.99 |
| 4 | 7UD-H2370-00-00 | PLUG CAP ASSY Price: $10.49 |
| 5 | 7UC-H5640-11-00 | T.C.I. UNIT ASSY This part replaces 7UC-H5640-10-00. Price: $61.99 |
| 6 | 7UD-H2370-00-00 | PLUG CAP ASSY Price: $10.49 |
| 7 | 7CU-H5119-00-00 | BOLT Price: $3.65 |
| 8 | 90179-22803-00 | NUT Price: $14.49 |
| 9 | 90201-22810-00 | WASHER, PLATE Price: $5.99 |
| 10 | 90280-04801-00 | KEY, WOODRUFF Price: $5.99 |
| 11 | 95817-06030-00 | BOLT,FLANGE This part replaces 95822-06030-00. Price: $4.65 |
| 12 | 7UD-H5586-00-00 | FAN Price: $34.99 |
| 13 | 95817-06020-00 | BOLT, FLANGE This part replaces 95822-06020-00. Price: $3.50 |
| 14 | 7UD-H5525-00-00 | COVER Price: $25.99 |
