| Ref | Part Number | Description |
|---|
| 1 |
16010-GET-003 |
GASKET SET Price: $16.40 |
| 2 |
16013-GET-003 |
FLOAT SET Price: $60.38 |
| 3 |
16015-GET-003 |
CHAMBER SET, FLOAT Price: $108.11 |
| 4 |
16016-GGA-671 |
SCREW SET A Price: $22.44 |
| 5 |
16028-GEE-711 |
SCREW SET B Price: $14.02 |
| 6 |
16037-KFM-901 |
PLATE SET, VALVE Price: $11.85 |
| 7 |
16046-GEV-003 |
BYSTARTER ASSY., AUTO Price: $81.35 |
| 8 |
16050-GEE-003 |
SPRING, COMPRESSION COIL Price: $9.95 |
| 9 |
16076-ND5-004 |
O-RING (1.3X4.3) (CARBURETOR NO.) Price: $2.84 |
| 10 |
16077-KG8-901 |
O-RING, BYSTARTER Price: $3.40 |
| 11 |
16080-GET-003 |
SCREW, TRUSS (5X8) Price: $0.89 |
| 12 |
16100-GGA-672 |

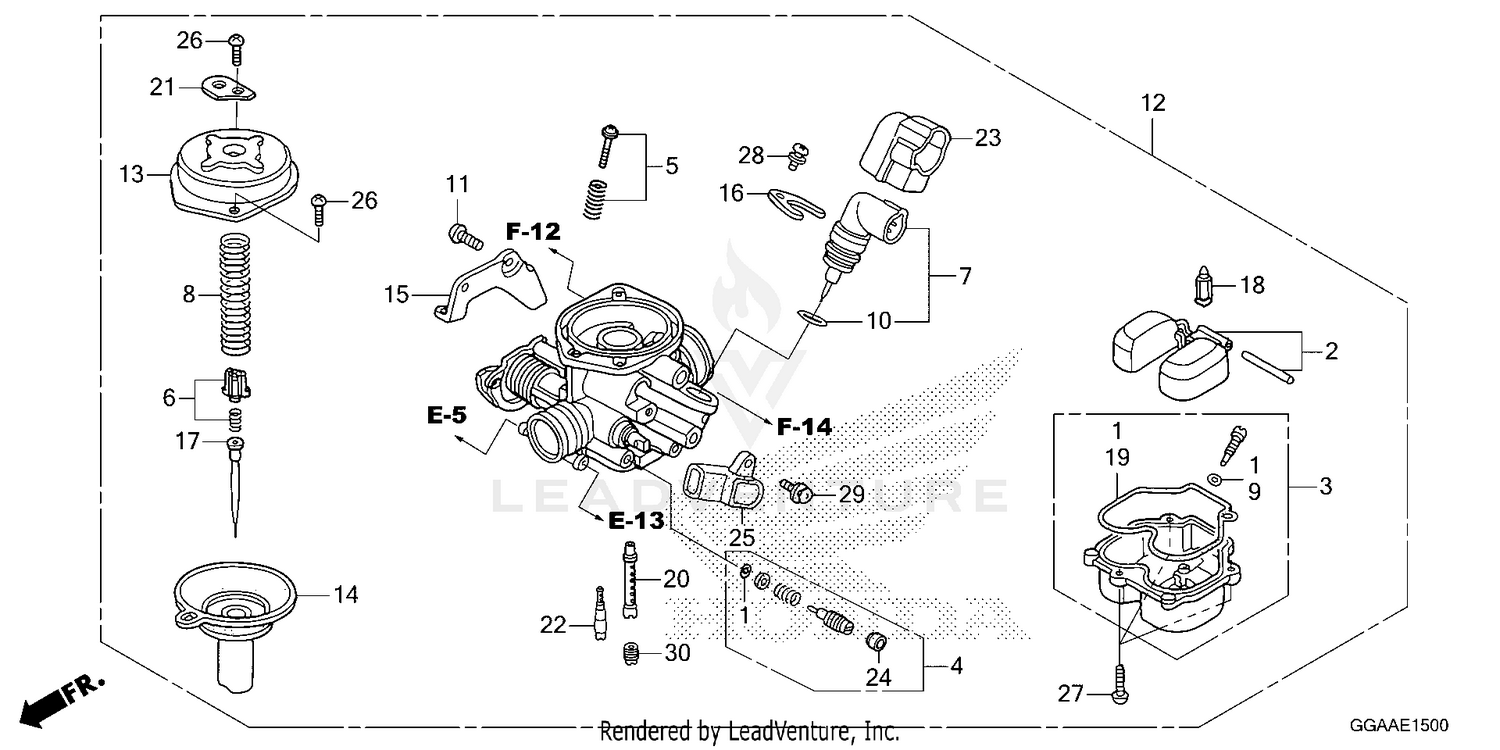

CARBURETOR ASSY. (NVK00L B) (ENGINE NO.) Price: $335.07 |
| 13 |
16107-GET-003 |
TOP Price: $33.67 |
| 14 |
16111-GEE-003 |
PISTON, VACUUM Price: $83.90 |
| 15 |
16119-GEZ-671 |
STAY, WIRE Price: $6.49 |
| 16 |
16131-ZW9-801 |
PLATE, SETTING Price: $4.12 |
| 17 |
16151-GEZ-612 |
NEEDLE, JET Price: $25.95 |
| 18 |
16155-413-751 |
VALVE, FLOAT This part replaces 16155-KJ9-751. Price: $39.38 |
| 19 |
16163-GET-003 |
GASKET, FLOAT CHAMBER Price: $11.20 |
| 20 |
16166-GET-003 |
JET, NEEDLE Price: $18.27 |
| 21 |
16179-GEZ-611 |
BINDER Price: $6.64 |
| 22 |
16180-GEE-003 |
JET, SLOW (#35) Price: $11.00 |
| 23 |
16190-GET-003 |
CAP, HOLDER Price: $6.04 |
| 24 |
16312-KYK-911 |
CAP, ADJUSTING SCREW Price: $3.09 |
| 25 |
37890-GET-003 |
SENSOR ASSY., THROTTLE Price: $52.55 |
| 26 |
93500-04008-0H |
SCREW, PAN (4X8) Price: $0.95 |
| 27 |
93500-04012-0H |
SCREW, PAN (4X12) Price: $0.95 |
| 28 |
93892-04008-08 |
SCREW-WASHER (4X8) Price: $1.20 |
| 29 |
93893-05016-08 |
SCREW-WASHER (5X16) Price: $1.28 |
