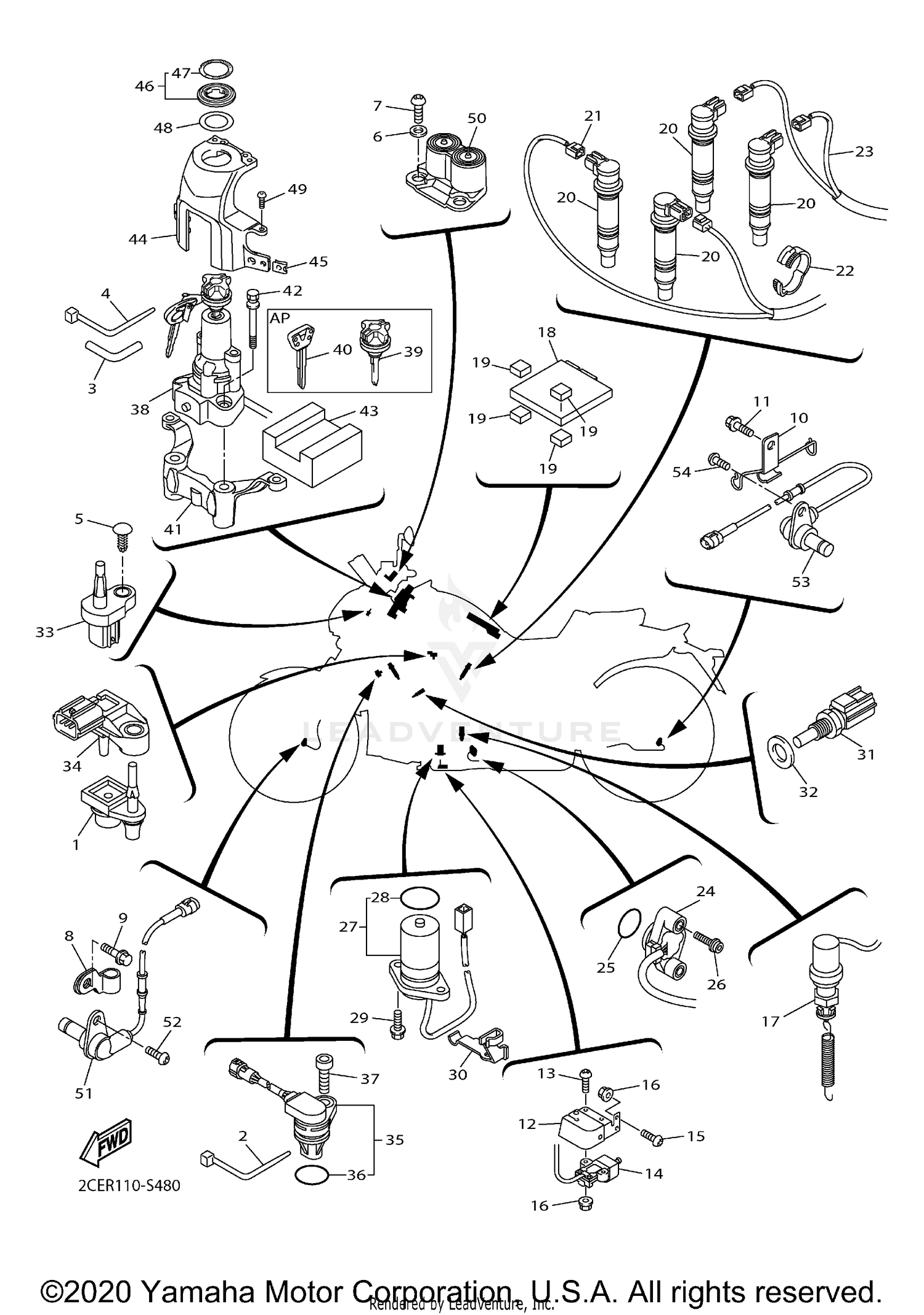

| Ref | Part Number | Description |
|---|
| 1 |
2S3-14435-00-00 |
GROMMET Price: $20.99 |
| 2 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 3 |
90445-07176-00 |
HOSE (L200) This part replaces 90445-07671-00. Price: $7.70 |
| 4 |
1UA-82591-00-00 |
BAND This part replaces 12R-82591-00-00. Price: $5.49 |
| 5 |
90269-05055-00 |
RIVET Price: $9.49 |
| 6 |
90201-067F9-00 |
WASHER, PLATE Price: $4.45 |
| 7 |
92017-06016-00 |
BOLT, BUTTON HEAD This part replaces 90111-06007-00. Price: $9.49 |
| 8 |
2S3-84387-01-00 |
HOLDER Price: $11.49 |
| 9 |
95024-06012-00 |
BOLT, FLANGE (SMALL HEAD) Price: $4.75 |
| 10 |
2S3-8431U-00-00 |
HOLDER Price: $24.99 |
| 11 |
95024-06012-00 |
BOLT, FLANGE (SMALL HEAD) Price: $4.75 |
| 12 |
2S3-27876-00-00 |
BRACKET, SWITCH Price: $45.99 |
| 13 |
92014-05025-00 |
BOLT, BUTTON HEAD Price: $10.49 |
| 14 |
2S3-82566-01-00 |
SWITCH, SIDE STAND Price: $139.99 |
| 15 |
92014-05020-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 16 |
95604-05200-00 |
NUT, U FLANGE Price: $2.40 |
| 17 |
2S3-82530-02-00 |
STOP SWITCH ASSY This part replaces 2S3-82530-01-00. Price: $43.99 |
| 18 |
2S3-8591A-C0-00 |
ENGINE CONTROL UNIT ASSY Price: $1,497.99 |
| 19 |
2RH-21747-00-00 |
DAMPER Price: $2.85 |
| 20 |
5VY-82310-00-00 |
IGNITION COIL ASSY Price: $188.99 |
| 21 |
2S3-82509-10-00 |
WIRE, SUB LEAD Price: $50.99 |
| 22 |
90464-25005-00 |
CLAMP Price: $2.55 |
| 23 |
2S3-82509-20-00 |
WIRE, SUB LEAD Price: $54.99 |
| 24 |
2S3-82540-01-00 |
NEUTRAL SWITCH ASSY This part replaces 2S3-82540-00-00. Price: $114.99 |
| 25 |
93210-21001-00 |
O-RING Price: $6.49 |
| 26 |
90110-05054-00 |
BOLT, HEXAGON SOCKET This part replaces 90110-05053-00. Price: $0.85 |
| 27 |
2S3-85720-00-00 |
OIL LEVEL GAUGE ASSY Price: $90.99 |
| 28 |
5VY-8A8E0-00-00 |
O-RING Price: $15.49 |
| 29 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 30 |
2S3-85724-00-00 |
CLAMP Price: $17.49 |
| 31 |
5PS-85790-00-00 |
THERMOSENSOR ASSY Price: $92.99 |
| 32 |
90201-12172-00 |
WASHER, PLATE Price: $3.45 |
| 33 |
5YU-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $37.99 |
| 34 |
1WS-82380-00-00 |
SENSOR, PRESSURE This part replaces 2C0-82380-00-00. Price: $209.99 |
| 35 |
2S3-85896-02-00 |
SENSOR, CAM POSITI This part replaces 2S3-85896-01-00. Price: $108.99 |
| 36 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 37 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 38 |
2S3-82501-30-00 |
MAIN SWITCH STEERING LOCK Price: $281.99 |
| 41 |
2S3-82514-00-00 |
STAY, MAIN SWITCH Price: $117.99 |
| 42 |
90109-08212-00 |
BOLT This part replaces 90109-08207-00. Price: $13.49 |
| 43 |
2S3-28372-00-00 |
DAMPER Price: $1.20 |
| 44 |
2S3-2117A-30-00 |
STAY Price: $170.99 |
| 45 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 46 |
2S3-82552-00-00 |
CAP, SWITCH Price: $88.99 |
| 47 |
2S3-8257H-00-00 |
PLATE, MARK Price: $21.99 |
| 48 |
5GJ-28307-00-00 |
SEAL Price: $2.50 |
| 49 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 50 |
2S3-8358J-01-00 |
SWITCH, METER CONTROL Price: $176.99 |
| 51 |
2S3-85970-01-00 |
WHEEL SENSOR ASSY, FRONT This part replaces 2S3-85970-00-00. Price: $153.99 |
| 52 |
92014-06014-00 |
BOLT, BUTTON HEAD Price: $4.05 |
| 53 |
2S3-85980-01-00 |
WHEEL SENSOR ASSY, REAR This part replaces 2S3-85980-00-00. Price: $156.99 |
