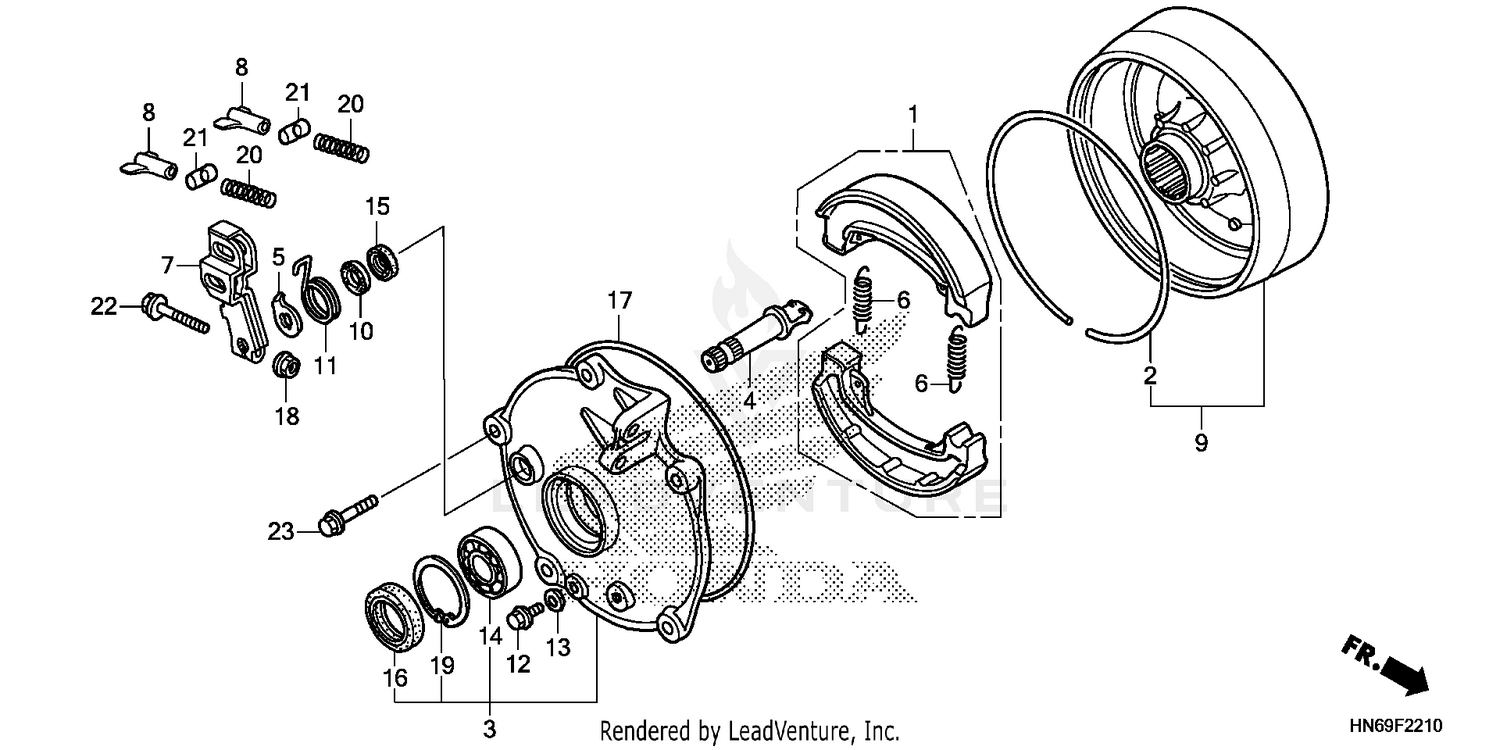

| Ref | Part Number | Description |
|---|
| 1 |
06430-HM8-A00 |
SHOE SET, BRAKE (ASK) Price: $44.62 |
| 2 |
42624-HB3-000 |
RING, DAMPER Price: $22.44 |
| 3 |
43010-HM8-000 |
PANEL SET, RR. BRAKE Price: $310.71 |
| 4 |
43141-KB4-003 |
CAM, RR. BRAKE Price: $44.20 |
| 5 |
43145-HM8-000 |
INDICATOR, RR. BRAKE Price: $5.04 |
| 6 |
43151-329-000 |
SPRING, BRAKE SHOE (THIS APPLICATION-FRONT) Price: $3.29 |
| 7 |
43410-HM8-000 |
ARM, RR. BRAKE Price: $22.62 |
| 8 |
43459-HM5-A10 |
NUT, BRAKE ADJUSTING Price: $11.51 |
| 9 |
43620-HN6-000 |
DRUM ASSY., RR. BRAKE Price: $343.11 |
| 10 |
45134-250-000 |
DUST SEAL, BRAKE CAM Price: $3.47 |
| 11 |
45411-GB4-680 |
SPRING, BRAKE ARM RETURN Price: $5.67 |
| 12 |
90109-371-000 |
BOLT, SEALING (8MM) Price: $3.09 |
| 13 |
90471-580-000 |
WASHER (8MM) Price: $3.40 |
| 14 |
91055-HA0-681 |
BEARING, RADIAL BALL (32X58X13) Price: $51.71 |
| 15 |
91208-HF7-005 |
DUST SEAL (14X20X4) (NOK) Price: $7.29 |
| 16 |
91252-HM8-003 |
DUST SEAL (43X58X10) Price: $15.80 |
| 17 |
91355-HM8-003 |
O-RING (166X2.6) Price: $8.09 |
| 18 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 19 |
94520-58000 |
CIRCLIP (INNER) (58MM) Price: $3.93 |
| 20 |
95014-73100 |
SPRING A, BRAKE ROD Price: $1.47 |
| 21 |
95015-32001 |
JOINT B, BRAKE ARM Price: $1.07 |
| 22 |
95701-06030-00 |
BOLT, FLANGE (6X30) Price: $1.97 |
| 23 |
95701-08025-00 |
BOLT, FLANGE (8X25) Price: $2.04 |
