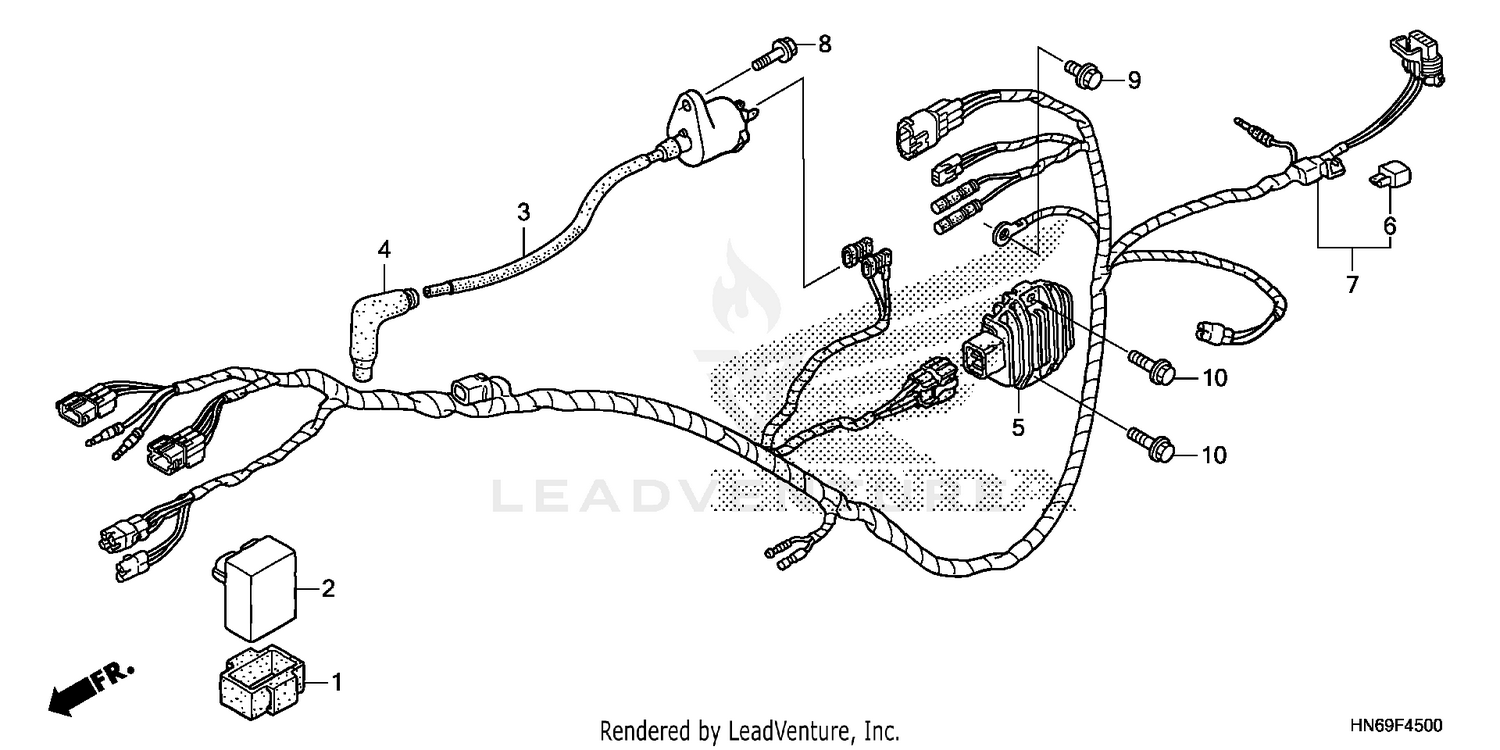

WIRE HARNESS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 30401-HB6-010 | CUSHION, IGNITION CONTROL MODULE (CDI) Price: $4.40 |
| 2 | 30410-HN6-000 | MODULE, IGNITION CONTROL (CDI) Price: $154.33 |
| 3 | 30510-HN6-A31 | COIL, IGNITION Price: $31.69 |
| 4 | 30700-MA0-163 | CAP ASSY., NOISE SUPPRESSOR Price: $27.04 |
| 5 | 31600-HM8-B00 | RECTIFIER ASSY., REGULATOR Price: $67.78 |
| 6 | 31700-124-008 | RECTIFIER ASSY., SILICON (SHINDENGEN) Price: $36.00 |
| 7 | 32100-HN6-A50 | WIRE HARNESS Price: $114.91 |
| 8 | 90112-GK8-010 | BOLT, FLANGE (5X22) Price: $3.24 |
| 9 | 95701-06010-08 | BOLT, FLANGE (6X10) Price: $1.68 |
