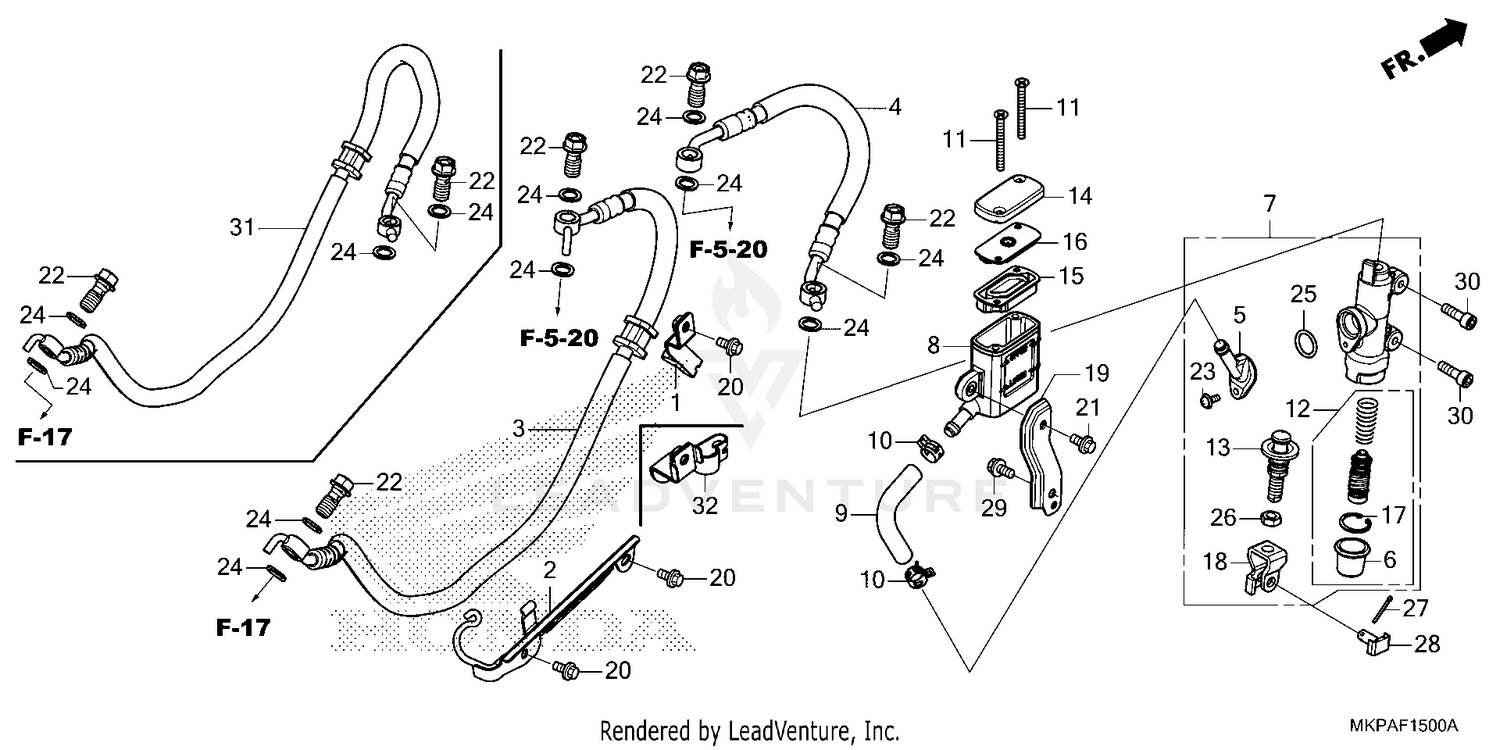

| Ref | Part Number | Description |
|---|
| 2 |
43156-MKP-J00 |
STAY B, RR. BRAKE Price: $13.69 |
| 3 |
43310-MKP-DN1 |
HOSE A, RR. BRAKE Price: $23.31 |
| 4 |
43313-MKP-DN1 |
HOSE B, RR. BRAKE Price: $21.96 |
| 5 |
43503-MN5-006 |
CONNECTOR, MASTER CYLINDER (NISSIN) Price: $16.55 |
| 6 |
43504-MB2-006 |
BOOT Price: $12.16 |
| 7 |
43510-MKP-J01 |
MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) Price: $128.38 |
| 8 |
43511-MKP-J01 |
CUP, OIL Price: $7.45 |
| 9 |
43512-MKP-J01 |
HOSE, RR. MASTER CYLINDER Price: $7.44 |
| 10 |
43514-KS6-701 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $15.89 |
| 11 |
43516-KYJ-901 |
SCREW, FLAT (4X60) Price: $1.04 |
| 12 |
43520-MJ6-315 |
PISTON SET, MASTER CYLINDER (NISSIN) Price: $54.98 |
| 13 |
43530-KV3-701 |
ROD, PUSH Price: $22.65 |
| 14 |
45513-K33-D01 |
CAP, MASTER CYLINDER Price: $18.82 |
| 15 |
45520-GW0-911 |
DIAPHRAGM Price: $9.15 |
| 16 |
45521-GW0-911 |
PLATE, DIAPHRAGM Price: $7.20 |
| 17 |
46182-MEL-D21 |
CIRCLIP Price: $2.22 |
| 18 |
46504-KV6-702 |
JOINT, BRAKE ROD Price: $9.85 |
| 19 |
50279-MKP-J00 |
STAY, OIL CUP Price: $10.16 |
| 20 |
90013-GHB-600 |
BOLT, FLANGE (6X10) Price: $5.11 |
| 21 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
| 22 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 23 |
90508-K21-921 |
SCREW-WASHER (4X12) Price: $0.29 |
| 24 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 25 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 26 |
94002-080000S |
NUT,HEX 8MM Price: $1.37 |
| 27 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 28 |
95015-54000 |
PIN D, JOINT Price: $5.33 |
| 29 |
95701-06012-07 |
BOLT, FLANGE (6X12) Price: $1.70 |
| 30 |
96600-06020-00 |
BOLT, SOCKET (6X20) Price: $1.47 |
