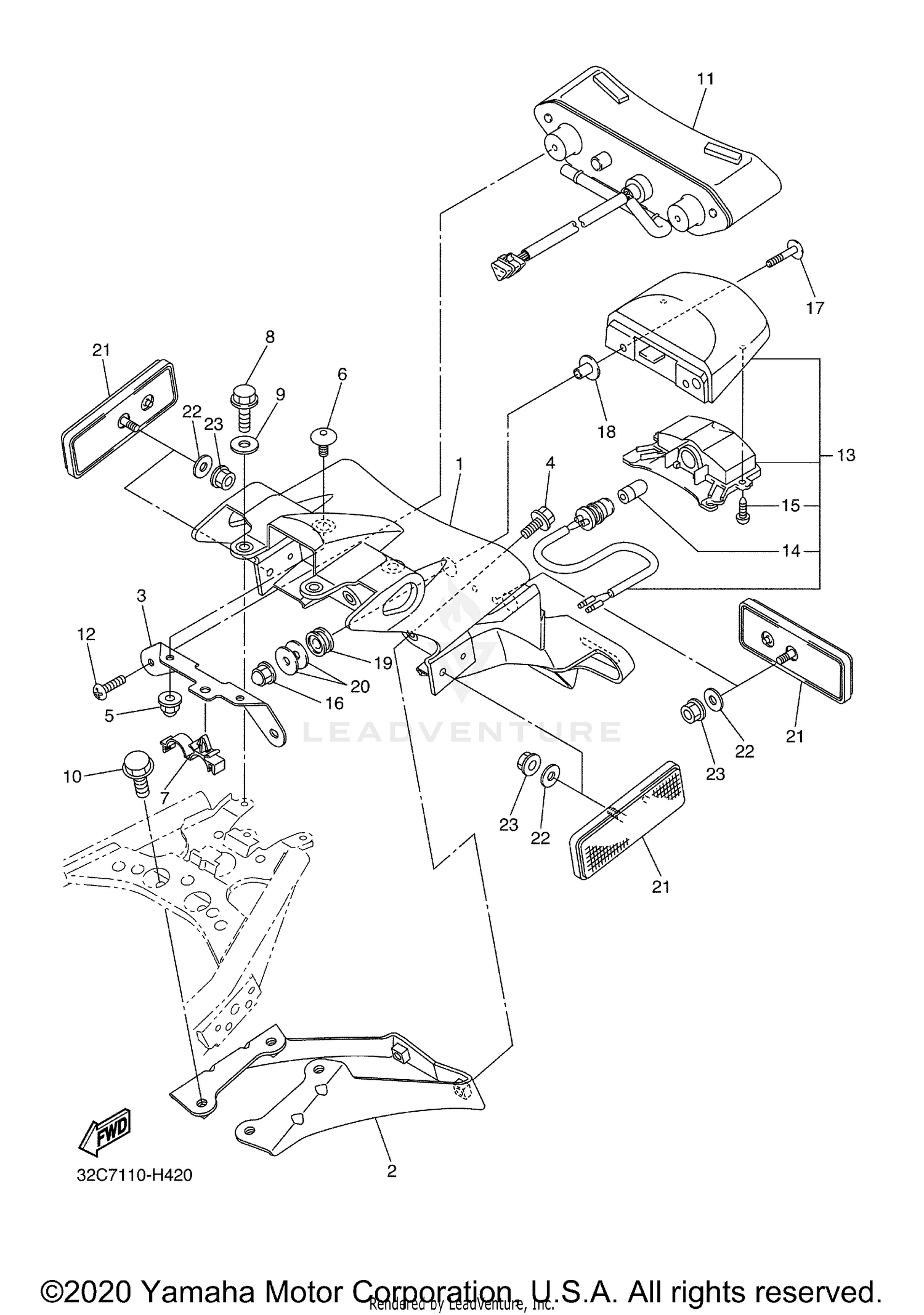

| Ref | Part Number | Description |
|---|
| 1 |
32C-21629-01-00 |
GUARD, MUD Price: $104.99 |
| 2 |
32C-21688-00-00 |
BRACKET, REAR STAY Price: $269.99 |
| 3 |
32C-2164G-00-00 |
STAY 2 Price: $37.99 |
| 4 |
90119-06242-00 |
BOLT, WITH WASHER This part replaces 90119-06241-00. Price: $8.49 |
| 5 |
90176-05003-00 |
NUT, CROWN Price: $3.90 |
| 6 |
90111-05011-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 7 |
90464-16006-00 |
CLAMP Price: $10.49 |
| 8 |
90105-05025-00 |
BOLT, FLANGE This part replaces 90105-05024-00. Price: $1.15 |
| 9 |
90201-05556-00 |
WASHER, PLATE This part replaces 90201-054K4-00. Price: $10.49 |
| 10 |
95817-06012-00 |
BOLT, FLANGE This part replaces 90105-06181-00. Price: $1.95 |
| 11 |
32C-84710-01-00 |
TAILLIGHT UNIT ASSY Price: $163.99 |
| 12 |
97707-50014-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50014-00. Price: $9.49 |
| 13 |
32C-84745-01-00 |
LICENSE LIGHT UNIT ASSY Price: $84.99 |
| 14 |
4SV-84347-00-00 |
BULB (12V-5W) Price: $9.49 |
| 15 |
97707-40612-00 |
SCREW, TRUSS Price: $6.99 |
| 16 |
90176-05054-00 |
NUT, CROWN Price: $8.49 |
| 17 |
90111-05010-00 |
BOLT This part replaces 90111-05030-00. Price: $1.95 |
| 18 |
90387-06159-00 |
COLLAR Price: $9.49 |
| 19 |
4WM-83513-00-00 |
DAMPER Price: $8.49 |
| 20 |
90201-061A5-00 |
WASHER, PLATE This part replaces 90201-05036-00. Price: $8.49 |
| 21 |
3Y6-85130-02-00 |
REAR REFLECTOR ASSY Price: $30.99 |
| 22 |
90201-05725-00 |
WASHER, PLATE Price: $10.49 |
