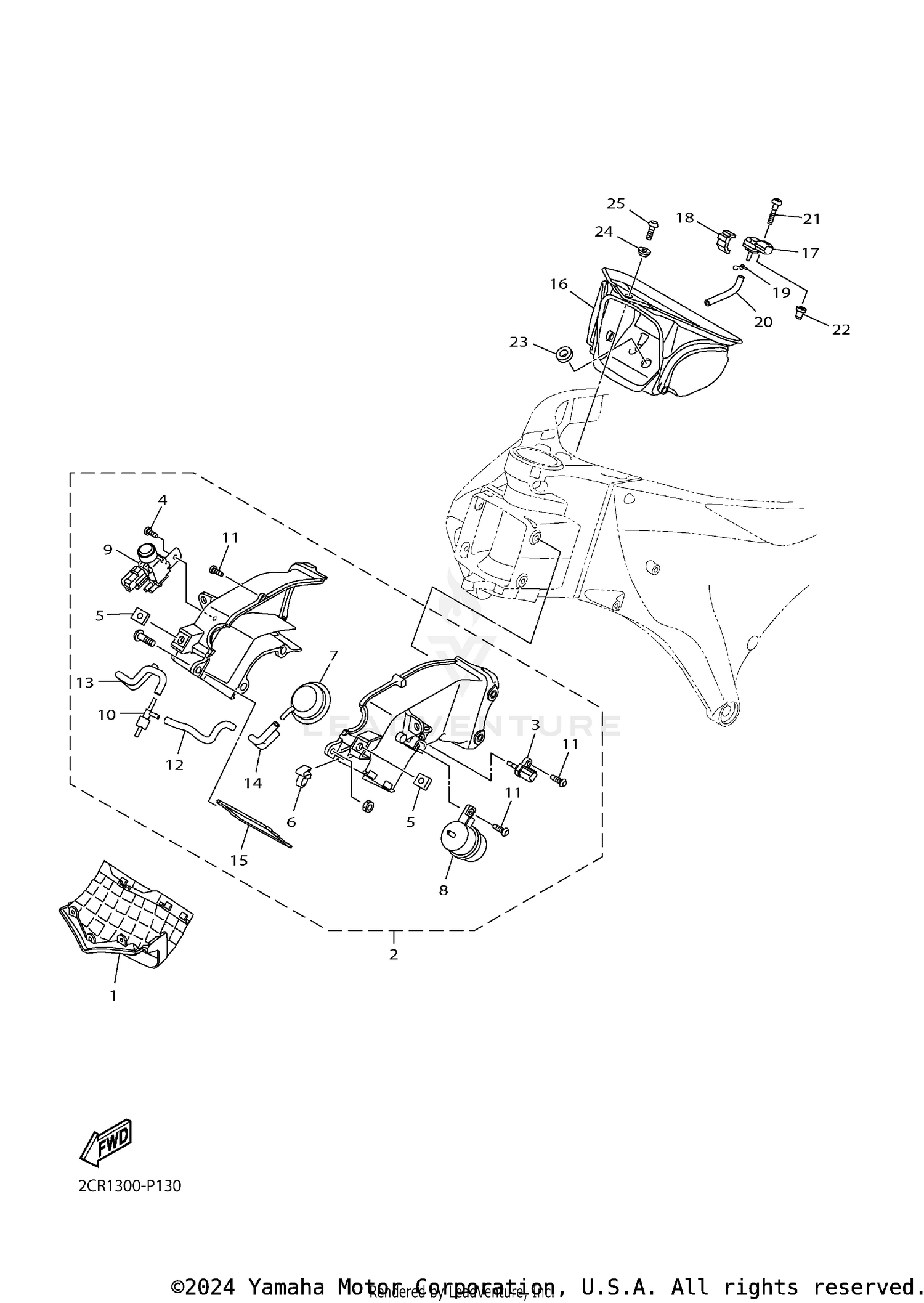

INTAKE 3
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2CR-2838N-01-00 | DUCT 1 This part replaces 2CR-2838N-00-00. Price: $34.99 |
| 2 | 2CR-2832E-01-00 | DUCT ASSY This part replaces 2CR-2832E-00-00. Price: $442.99 |
| 3 | 8FP-85886-00-00 | SENSOR, AIR TEMPERATURE Price: $65.99 |
| 4 | 97780-50612-00 | SCREW, TAPPING This part replaces 97702-50512-00. Price: $4.40 |
| 5 | 90183-060A1-00 | NUT, SPRING Price: $10.49 |
| 6 | 90464-25008-00 | CLAMP Price: $2.10 |
| 7 | 3D7-14545-00-00 | DIAPHRAGM Price: $99.99 |
| 8 | 5PS-1446E-00-00 | TANK, SURGE Price: $15.49 |
| 9 | 5PS-1410H-01-00 | SOLENOID VALVE This part replaces 5PS-1410H-00-00. Price: $64.99 |
| 10 | 5PS-14552-01-00 | VALVE, CHECK This part replaces 5PS-14552-00-00. Price: $19.99 |
| 11 | 97707-50516-00 | SCREW, TAPPING Price: $0.80 |
| 12 | 2CR-2247B-00-00 | HOSE 2 Price: $5.99 |
| 13 | 2CR-2247C-00-00 | HOSE 3 Price: $7.49 |
| 14 | 2CR-2247D-00-00 | HOSE 4 Price: $5.99 |
| 15 | 2CR-2837N-00-00 | GRILL, AIR INTAKE 1 Price: $35.99 |
| 16 | 2CR-2838U-01-00 | DUCT 4 This part replaces 2CR-2838U-00-00. Price: $55.99 |
| 17 | 1WS-82380-00-00 | SENSOR, PRESSURE Price: $209.99 |
| 18 | 2CR-28372-00-00 | DAMPER Price: $6.49 |
| 19 | 90467-08021-00 | CLIP Price: $9.49 |
| 20 | 90445-08028-00 | HOSE Price: $9.49 |
| 21 | 90109-04001-00 | BOLT Price: $1.40 |
| 22 | 90179-04003-00 | NUT Price: $3.85 |
| 23 | 90480-13567-00 | GROMMET Price: $5.49 |
| 24 | 90387-06130-00 | COLLAR Price: $10.49 |
