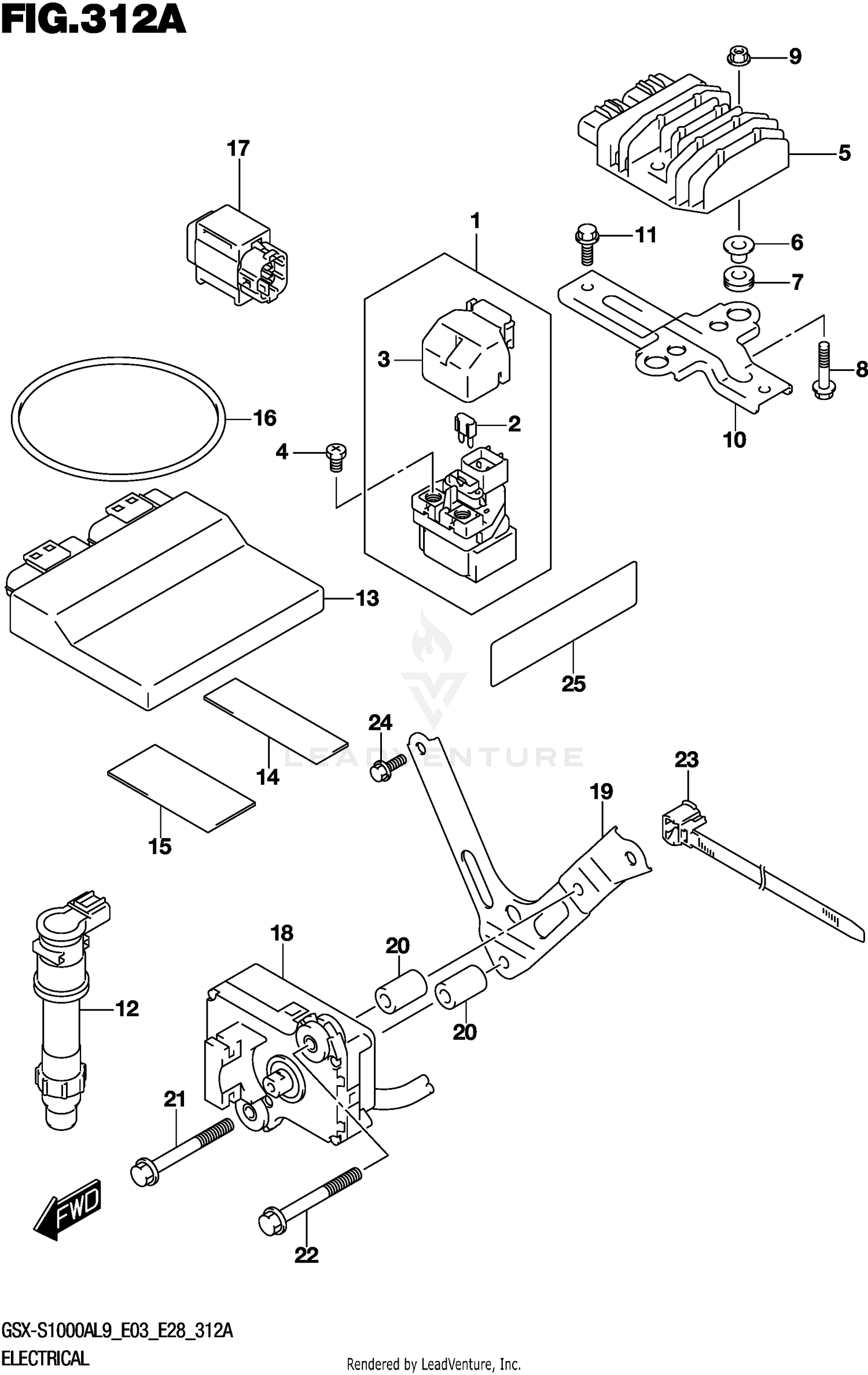

ELECTRICAL (GSX-S1000AL9 E03)
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-38G10 | RELAY ASSY,STARTING MOTOR Price: $120.21 |
| 4 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 5 | 32800-26J02 | RECTIFIER ASSY Price: $271.46 |
| 6 | 09180-06331 | SPACER (6.2X8.4X10.9) Price: $5.01 |
| 7 | 09320-08501 | CUSHION (8X18X10) Price: $3.99 |
| 8 | 01550-0635A | BOLT Price: $2.79 |
| 9 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 10 | 47431-04K01 | BRACKET, ELECTRIC PARTS Price: $16.09 |
| 11 | 01550-0612A | BOLT Price: $2.37 |
| 12 | 33410-47H00 | COIL ASSY, IGNITION Price: $191.83 |
| 13 | 32920-38K51 | CONTROL UNIT,FI This part replaces 32920-38K50. Price: $1,498.64 |
| 14 | 33652-07D00 | PROTECTOR (80X80X2) This part replaces 33652-38A10. Price: $6.98 |
| 15 | 33652-07D00 | PROTECTOR (80X80X2) This part replaces 33652-34000. Price: $6.98 |
| 16 | 09280-85001 | O-RING (D:3.5,ID:85) Price: $3.59 |
| 17 | 33960-06G10 | SENSOR ASSY, FUEL CUT Price: $111.08 |
| 18 | 33970-48G02 | ACTUATOR ASSY, EXHAUST CONTRO This part replaces 33970-48G00. Price: $438.24 |
| 19 | 47420-04K00 | BRACKET, ACTUATOR Price: $14.37 |
| 20 | 09180-06345 | SPACER (6.2X14.5X26) Price: $10.80 |
| 21 | 01550-0650A | BOLT Price: $3.00 |
| 22 | 01550-0655A | BOLT Price: Call Us |
| 23 | 09407-14413 | CLAMP Price: $2.84 |
| 24 | 01547-0612A | BOLT Price: $2.45 |
