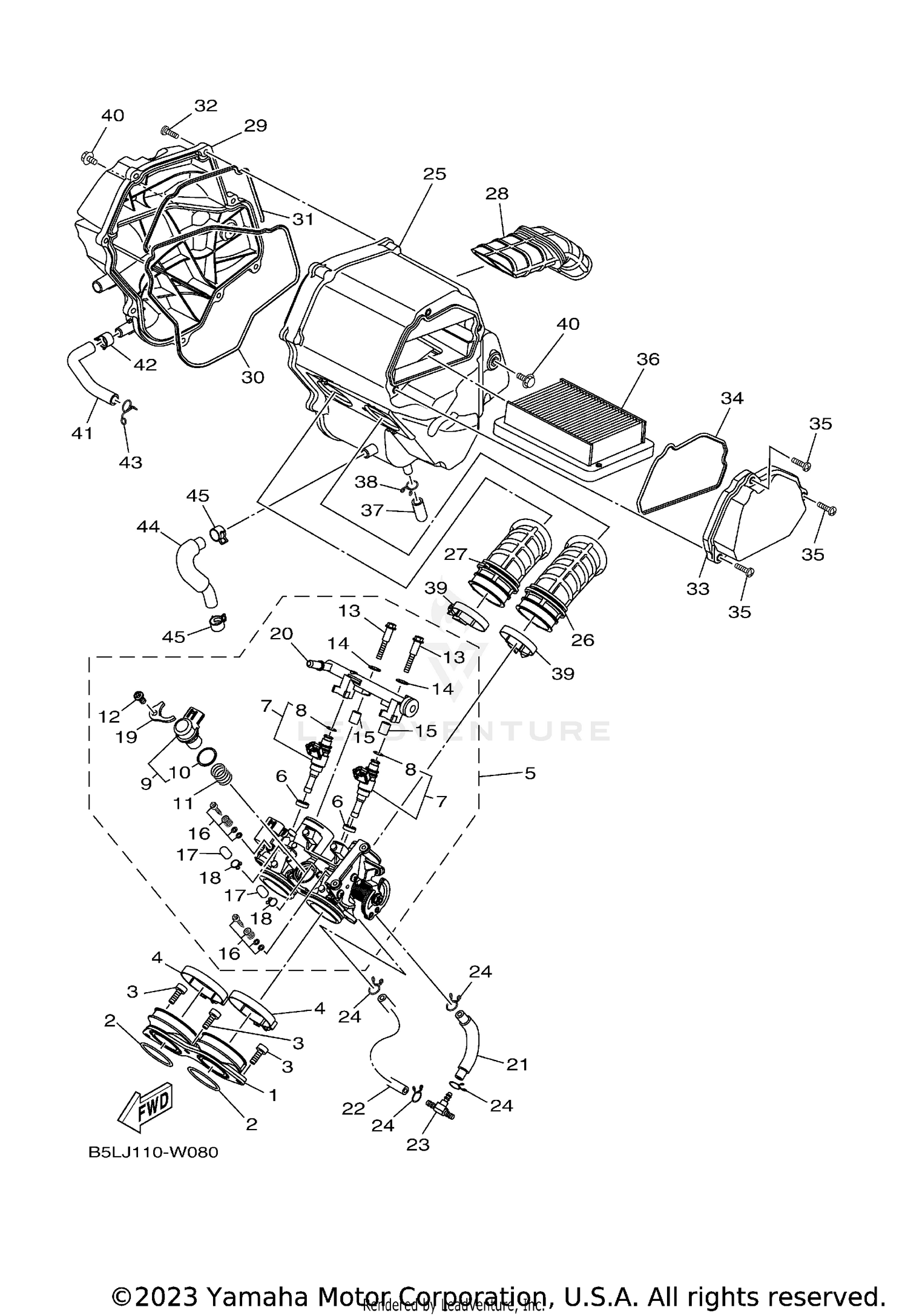

| Ref | Part Number | Description |
|---|
| 1 |
2MS-E3586-00-00 |
JOINT, CARBURETOR 1 Price: $58.99 |
| 2 |
93210-39700-00 |
O-RING This part replaces 93210-39802-00. Price: $12.49 |
| 3 |
91332-06016-00 |
BOLT Price: $0.50 |
| 4 |
90450-55804-00 |
HOSE CLAMP ASSY Price: $4.15 |
| 5 |
2MS-E3750-01-00 |
THROTTLE BODY ASSY Price: $380.99 |
| 6 |
1WD-E3556-00-00 |
GASKET, MANIFOLD Price: $4.15 |
| 7 |
1WD-E3761-00-00 |
INJECTOR Price: $79.99 |
| 8 |
5PS-14147-00-00 |
O-RING Price: $14.49 |
| 10 |
54P-E416A-00-00 |
O-RING Price: $7.49 |
| 11 |
1WS-14335-00-00 |
SPRING, PLUNGER Price: $11.49 |
| 12 |
98517-06012-00 |
SCREW,PAN This part replaces 98502-06012-00. Price: $4.10 |
| 13 |
1WD-E3573-00-00 |
BOLT 1 Price: $1.60 |
| 14 |
8GL-13571-00-00 |
WASHER Price: $4.40 |
| 15 |
8HG-14534-00-00 |
COLLAR Price: $34.99 |
| 16 |
5JW-14104-00-00 |
AIR SCREW SET Price: $17.99 |
| 17 |
895-14169-00-00 |
CAP Price: $5.99 |
| 18 |
8A7-14139-00-00 |
CLIP, PIPE Price: $9.49 |
| 19 |
1WD-E4243-00-00 |
PLATE Price: $4.95 |
| 20 |
1WD-E3938-00-00 |
PIPE Price: $71.99 |
| 21 |
2MS-E4465-00-00 |
PIPE Price: $13.49 |
| 22 |
2MS-E4466-00-00 |
PIPE Price: $12.49 |
| 23 |
90413-06031-00 |
WAY 3 Price: $9.49 |
| 24 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 25 |
1WD-E4411-00-00 |
CASE, AIR CLEANER 1 Price: $78.99 |
| 26 |
2MS-E4469-00-00 |
FUNNEL, AIR Price: $11.99 |
| 27 |
2MS-E446C-00-00 |
FUNNEL 2 Price: $18.99 |
| 28 |
1WD-E4437-00-00 |
DUCT Price: $9.49 |
| 29 |
2MS-E4412-00-00 |
CAP, CLEANER CASE 1 Price: $22.99 |
| 30 |
1WD-E4452-00-00 |
SEAL Price: $3.00 |
| 31 |
1WD-E4457-00-00 |
SEAL Price: $0.80 |
| 32 |
97707-50025-00 |
SCREW, TAPPING This part replaces 97702-50025-00. Price: $9.49 |
| 33 |
1WD-E4422-00-00 |
CAP, CLEANER CASE 2 Price: $8.49 |
| 34 |
1WD-E4462-00-00 |
SEAL Price: $10.49 |
| 35 |
98902-05020-00 |
SCREW, BIND Price: $1.85 |
| 36 |
1WD-E4451-00-00 |
ELEMENT, AIR CLEANER Price: $30.99 |
| 37 |
5TL-E443E-00-00 |
PIPE, DRAIN (MIO AL1 This part replaces 52B-E443E-00-00. Price: $1.10 |
| 38 |
90467-110A3-00 |
CLIP Price: $8.49 |
| 39 |
54P-E3474-00-00 |
BAND Price: $11.49 |
| 40 |
95812-06010-00 |
BOLT, FLANGE This part replaces 95822-06010-00. Price: $3.20 |
| 41 |
1WD-E3543-02-00 |
HOSE, AIR Price: $3.25 |
| 42 |
90467-13802-00 |
CLIP Price: $3.10 |
| 43 |
90467-12052-00 |
CLIP Price: $10.49 |
| 44 |
2MS-E5373-02-00 |
PIPE, BREATHER Price: $4.75 |
