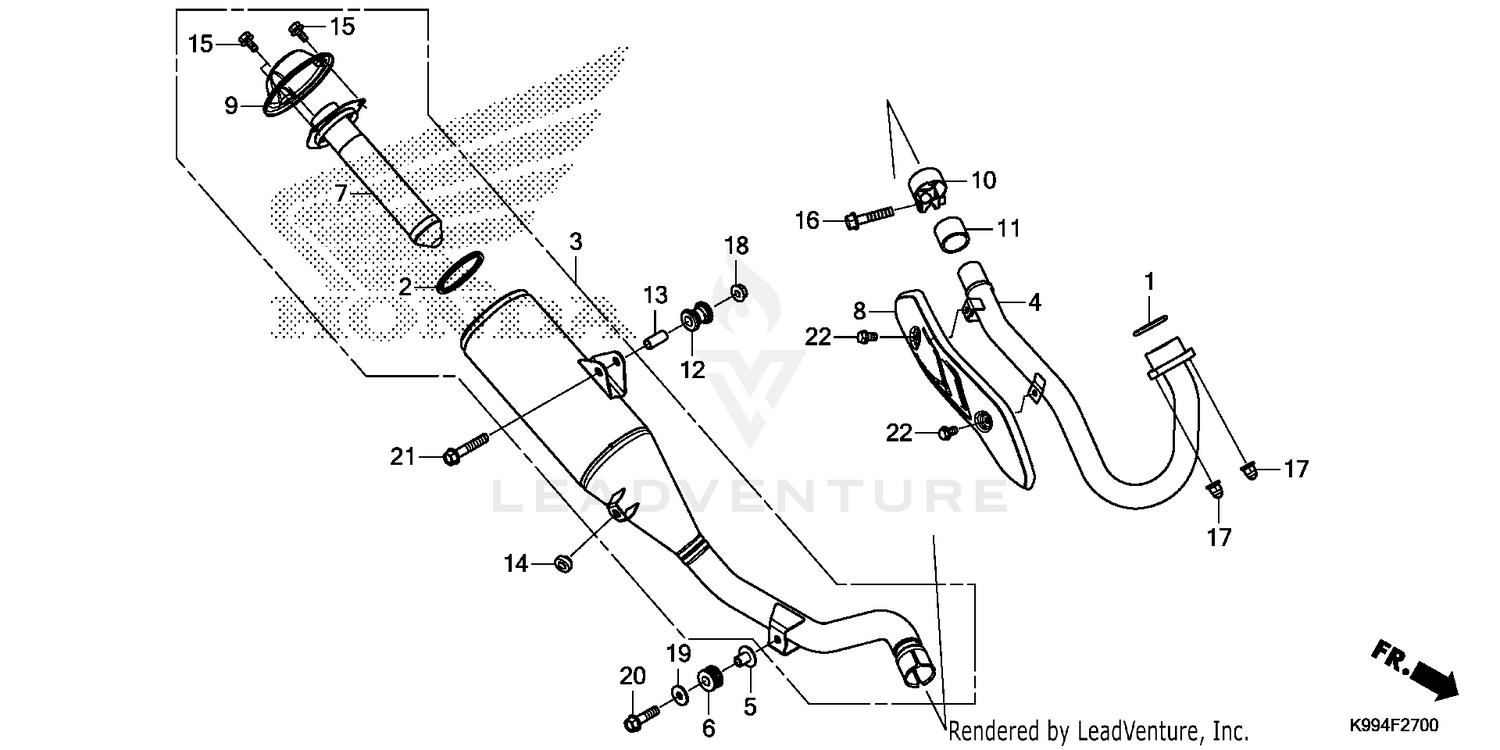

| Ref | Part Number | Description |
|---|
| 1 |
18291-MM5-860 |
GASKET, EX. PIPE Price: $6.49 |
| 2 |
18292-MV4-000 |
GASKET, MUFFLER Price: $10.51 |
| 3 |
18300-K99-A00 |
MUFFLER ASSY. Price: $422.42 |
| 4 |
18320-K99-A00 |
PIPE, EX. Price: $57.84 |
| 5 |
18327-KRH-D20 |
COLLAR, RR. CHAMBER (8.5X15) Price: $1.05 |
| 6 |
18328-KRH-D20 |
RUBBER, RR. CHAMBER MOUNTING Price: $1.40 |
| 7 |
18340-K99-A00 |
ARRESTER, MUFFLER Price: $237.73 |
| 8 |
18345-K99-A00ZA |
PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK) Price: $15.98 |
| 9 |
18360-K99-A00 |
COVER, MUFFLER TAIL Price: $84.31 |
| 10 |
18373-K99-A00 |
BAND, EX. PIPE Price: $7.82 |
| 11 |
18391-MB0-891 |
GASKET, MUFFLER Price: $21.71 |
| 12 |
18421-KFB-000 |
RUBBER, MUFFLER MOUNTING Price: $5.64 |
| 13 |
18422-KFB-000 |
COLLAR, MUFFLER MOUNTING Price: $5.09 |
| 14 |
83512-KPS-730 |
RUBBER, SIDE COVER Price: $1.80 |
| 15 |
96001-06010-07 |
BOLT, FLANGE (6X10) This part replaces 90101-KCE-000. Price: $1.70 |
| 16 |
90102-KVK-900 |
BOLT, FLANGE (8X38) Price: $2.76 |
| 17 |
90308-KRM-860 |
NUT, HEX. CAP (8MM) Price: $1.98 |
| 18 |
94050-08070 |
NUT, FLANGE (8MM) Price: $1.71 |
| 19 |
94103-08700 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 20 |
95701-08030-07 |
BOLT, FLANGE (8X30) Price: $2.38 |
| 21 |
95701-08045-07 |
BOLT, FLANGE (8X45) Price: $2.38 |
