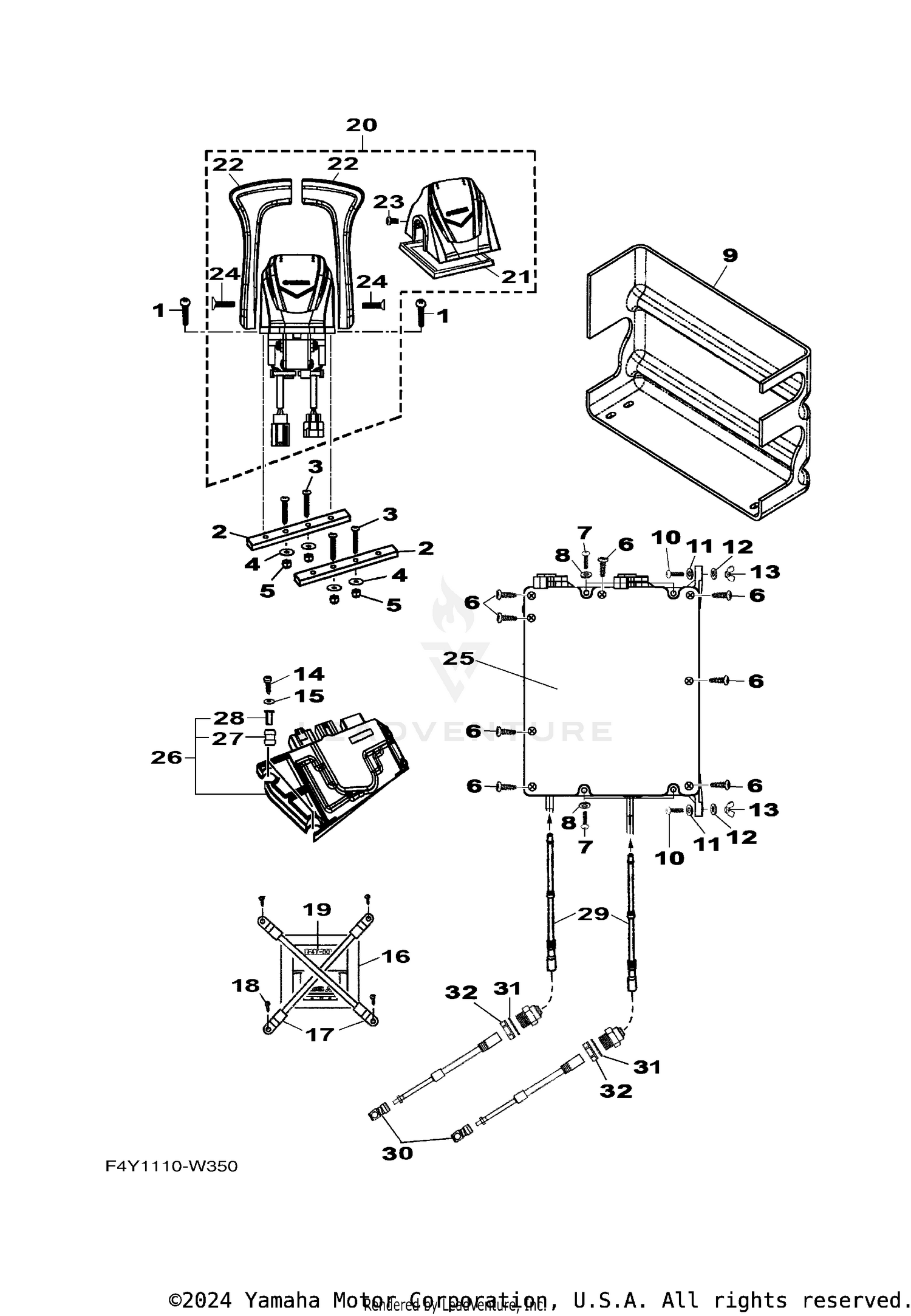

| Ref | Part Number | Description |
|---|
| 1 |
90157-10S16-00 |
SCREW, PAN HEAD Price: $4.99 |
| 2 |
F3F-U1348-00-00 |
PLATE Price: $10.99 |
| 3 |
90151-10S20-00 |
SCREW, COUNTERSUNK Price: $0.45 |
| 4 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 5 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 6 |
90157-05815-00 |
SCREW, PAN HEAD Price: $5.99 |
| 7 |
90169-10SA0-00 |
TAPPING SCREW Price: $5.99 |
| 8 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 9 |
F3F-U7437-00-00 |
COVER Price: $156.99 |
| 10 |
90149-10SC4-00 |
SCREW Price: $4.99 |
| 11 |
90201-15S00-00 |
WASHER, 5/16" FLAT Price: $0.15 |
| 12 |
90209-15SA4-00 |
WASHER Price: $5.99 |
| 13 |
90175-15SA1-00 |
NUT, WING Price: $2.99 |
| 14 |
90167-10S16-00 |
SCREW, TAPPING Price: $5.99 |
| 15 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 16 |
GJ3-U755J-00-00 |
MAT,WATER LOCK Price: $112.99 |
| 17 |
F3F-U1543-00-00 |
EYE STRAP Price: $9.49 |
| 18 |
90167-08SA8-00 |
SCREW, TAPPING Price: $5.99 |
| 19 |
F4Y-68197-00-00 |
CONTROL UNIT Price: $646.99 |
| 20 |
F3F-6134A-11-00 |
REMOCON. LEVER ASSY. This part replaces F3F-6134A-10-00. Price: $1,463.49 |
| 21 |
F3F-67564-00-00 |
GASKET Price: $152.99 |
| 22 |
F3F-6151M-10-00 |
LEVER ASSY Price: $585.99 |
| 23 |
F3F-61355-00-00 |
BOLT Price: $16.99 |
| 24 |
F3F-67869-00-00 |
SCREW, FLAT HEAD TAP Price: $10.99 |
| 25 |
F3F-6140B-01-00 |
MOTOR ASSY. This part replaces F3F-6140B-00-00. Price: $1,721.99 |
| 26 |
F3F-85590-14-00 |
CONTROL UNIT ASSY This part replaces F3F-85590-12-00. Price: $1,431.49 |
| 27 |
6A0-82317-01-00 |
DAMPER, IGNITION C This part replaces 6A0-82317-00-00. Price: $7.10 |
| 28 |
90387-06119-00 |
COLLAR Price: $4.80 |
| 29 |
F5V-6149C-01-00 |
CABLE,REVERSE This part replaces F5V-6149C-00-00. Price: $316.99 |
| 30 |
F2C-61460-00-00 |
BALL JOINT ASSY Price: $46.49 |
| 31 |
F1B-61438-00-00 |
PACKING C Price: $2.99 |
