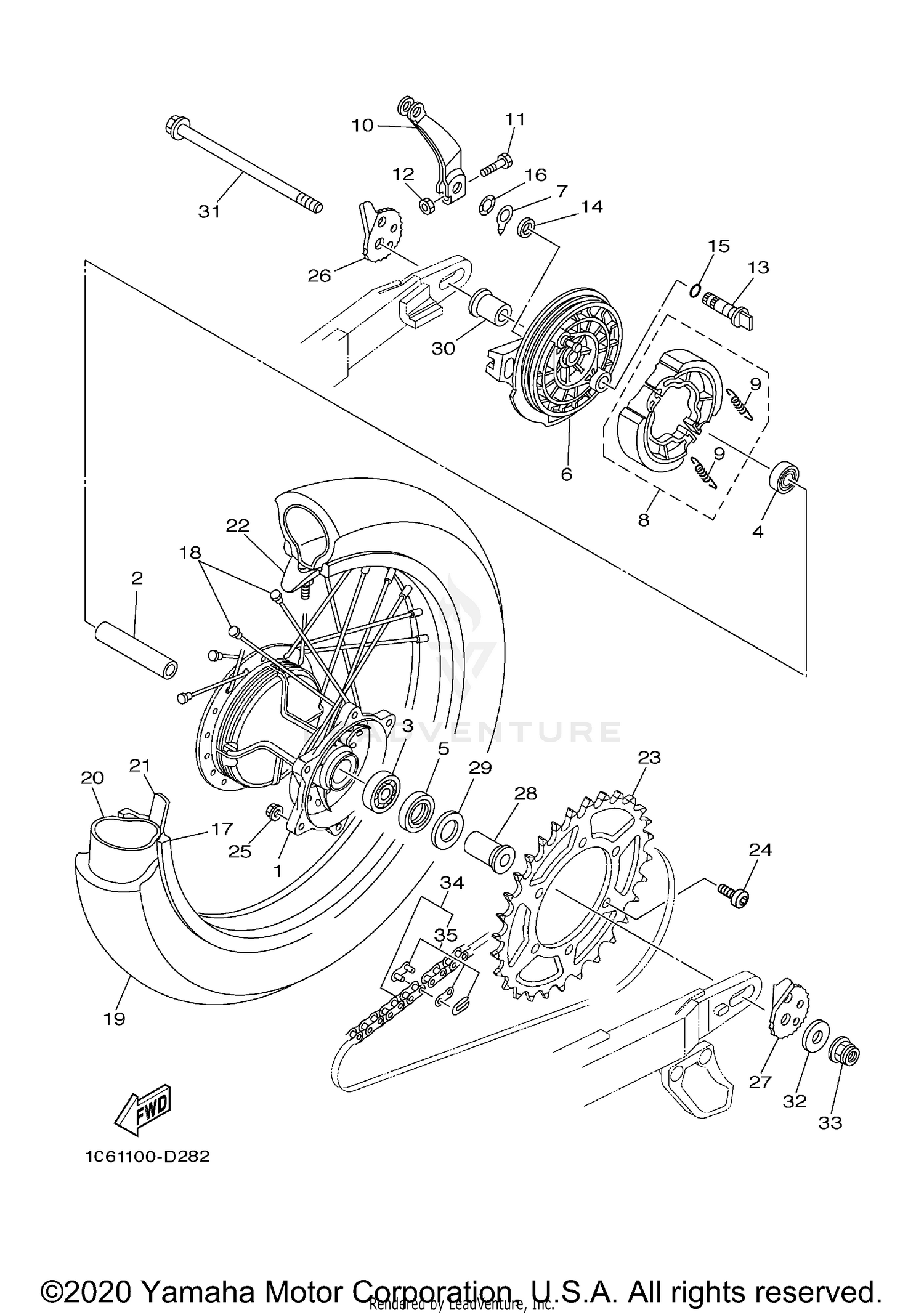

| Ref | Part Number | Description |
|---|
| 1 |
1C6-F5311-00-35 |
HUB, REAR This part replaces 1C6-F5311-00-00. Price: $222.99 |
| 2 |
90560-15313-00 |
SPACER This part replaces 5L9-F5317-00-00. Price: $50.99 |
| 3 |
93306-302X7-00 |
BEARING Price: $28.99 |
| 4 |
93306-252Y2-00 |
BEARING Price: $23.99 |
| 5 |
93106-26005-00 |
OIL SEAL Price: $7.30 |
| 6 |
5RM-F5321-03-00 |
PLATE, BRAKE SHOE Price: $131.99 |
| 7 |
5HH-F533A-00-00 |
PLATE, INDICATOR Price: $8.49 |
| 8 |
3FA-W253A-00-00 |
BRAKE SHOE KIT This part replaces 5HH-F5330-00-00. Price: $26.99 |
| 9 |
90506-15260-00 |
SPRING, TENSION Price: $9.49 |
| 10 |
5RM-F5355-00-00 |
LEVER, CAMSHAFT Price: $53.99 |
| 11 |
97017-06030-00 |
BOLT,HEXAGON This part replaces 90101-06W00-00. Price: $3.90 |
| 12 |
95317-06600-00 |
NUT This part replaces 9530M-06600-00. Price: $3.85 |
| 13 |
5RM-F5351-00-00 |
CAMSHAFT Price: $33.99 |
| 14 |
93109-14021-00 |
OIL SEAL Price: $14.49 |
| 15 |
93210-14579-00 |
O-RING This part replaces 93210-14104-00. Price: $7.49 |
| 16 |
90206-14093-00 |
WASHER, WAVE Price: $8.49 |
| 17 |
94418-18016-00 |
RIM (1.85-18) Price: $404.99 |
| 18 |
1C6-F5304-10-00 |
SPOKE SET, REAR This part replaces 1C6-F5304-00-00. Price: $82.99 |
| 22 |
4XM-25394-00-00 |
SPACER, BEAD Price: $50.99 |
| 23 |
1C6-25449-20-00 |
SPROCKET, DRIVEN (49T) Price: $56.99 |
| 24 |
90111-08826-00 |
BOLT, HEX. SOCKET BUTTON Price: $1.70 |
| 25 |
90185-08169-00 |
NUT, SELF-LOCKING This part replaces 95607-08200-00. Price: $9.49 |
| 26 |
5RM-F5389-00-00 |
PULLER, CHAIN 2 Price: $9.49 |
| 27 |
1C6-F5389-00-00 |
PULLER, CHAIN 2 Price: $9.49 |
| 28 |
90387-15W34-00 |
COLLAR Price: $29.99 |
| 29 |
4AN-F5367-00-00 |
COVER, HUB DUST Price: $2.00 |
| 30 |
90387-15W35-00 |
COLLAR Price: $19.49 |
| 31 |
1C6-F5381-00-00 |
AXLE, WHEEL Price: $42.99 |
| 32 |
90201-15797-00 |
WASHER, PLATE Price: $10.49 |
| 33 |
90185-14112-00 |
NUT, SELF-LOCKING Price: $12.49 |
| 34 |
9Y581-47105-00 |
CHAIN (DID520V2-105LE) Price: $176.99 |
