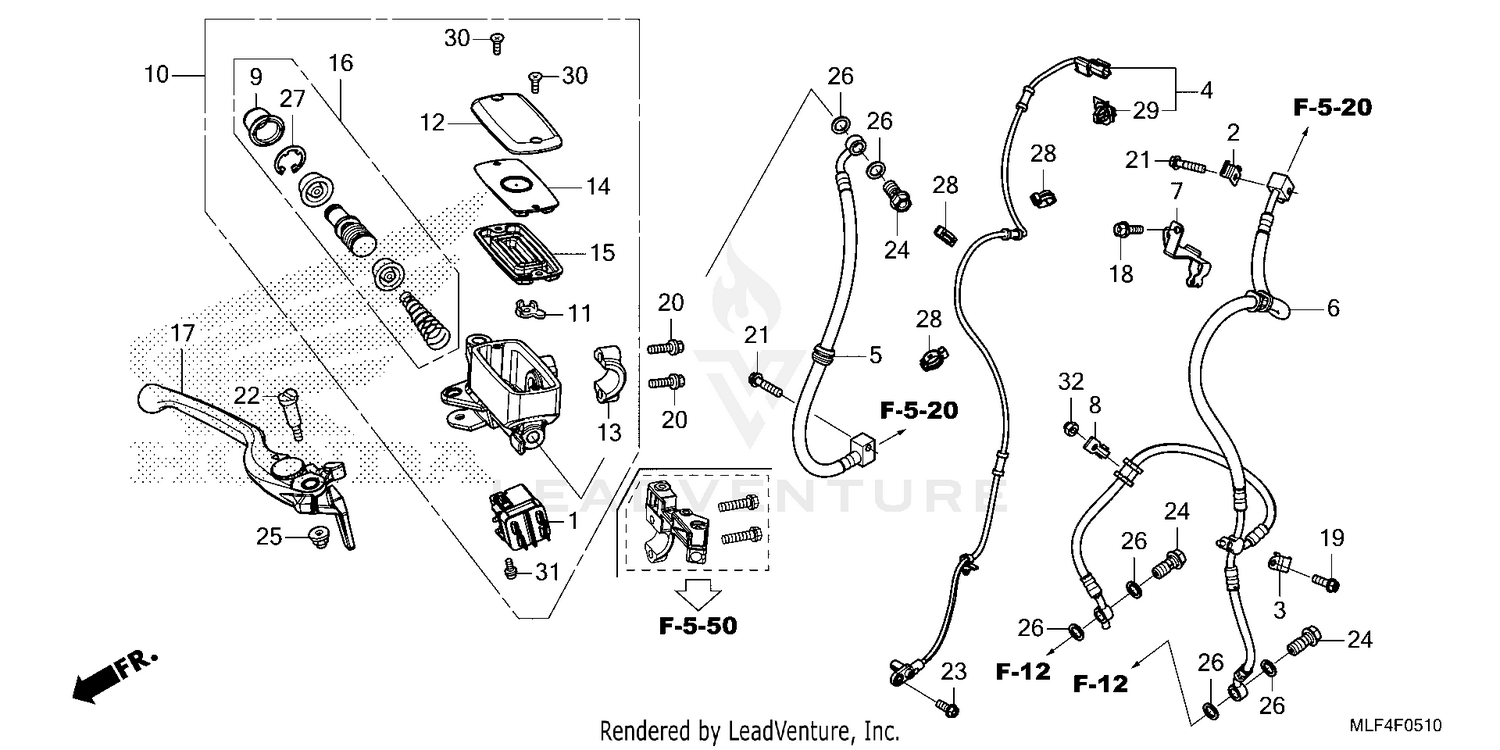

| Ref | Part Number | Description |
|---|
| 1 |
35340-MKS-E01 |
SWITCH ASSY., FR. STOP & CRUISE Price: $66.45 |
| 2 |
38514-MEJ-J00 |
CLAMP B, SENSOR WIRE Price: $2.58 |
| 3 |
38514-MKH-D00 |
CLAMP B, SENSOR WIRE Price: $2.05 |
| 4 |
38520-MLF-E01 |
SENSOR, FR. WHEEL SPEED (NOT AVAILABLE) Price: $70.56 |
| 5 |
45125-MLF-E81 |
HOSE A, FR. BRAKE Price: $46.27 |
| 6 |
45128-MLF-E01 |
HOSE D, FR. BRAKE (NOT AVAILABLE) Price: $114.87 |
| 7 |
45156-MLF-E00 |
CLAMP, FR. BRAKE HOSE (NOT AVAILABLE) Price: $7.27 |
| 8 |
45158-MFL-D00 |
CLAMP A, FR. BRAKE HOSE Price: $4.16 |
| 9 |
45504-410-003 |
BOOT Price: $14.75 |
| 10 |
45510-MLF-E71 |
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) (NOT AVAILABLE) Price: $234.82 |
| 11 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 12 |
45513-MM5-016 |
CAP, MASTER CYLINDER (NISSIN) Price: $27.15 |
| 14 |
45518-MM5-006 |
PLATE, DIAPHRAGM (NISSIN) Price: $12.91 |
| 15 |
45520-MM5-006 |
DIAPHRAGM (NISSIN) Price: $18.31 |
| 16 |
45530-MCA-006 |
PISTON SET, FR. MASTER CYLINDER Price: $21.98 |
| 17 |
53170-MKS-E01 |
LEVER ASSY., R. HANDLE Price: $62.33 |
| 18 |
90021-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 19 |
90021-GHB-650 |
BOLT, FLANGE (6X18) Price: $2.58 |
| 21 |
90021-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 22 |
90114-MA5-671 |
BOLT, R. HANDLEBAR PIVOT Price: $11.42 |
| 23 |
90117-MKS-E00 |
BOLT, FLANGE (6X14) Price: $2.64 |
| 24 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 25 |
90201-415-000 |
NUT, CAP (6MM) Price: $2.45 |
| 26 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 27 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 28 |
90690-MGS-D81 |
CLIP, CABLE (12MM) Price: $2.55 |
| 29 |
91565-SEL-003 |
CLIP, CONNECTOR (BLACK) (Honda Code 7386865) Price: $4.62 |
| 30 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 31 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
