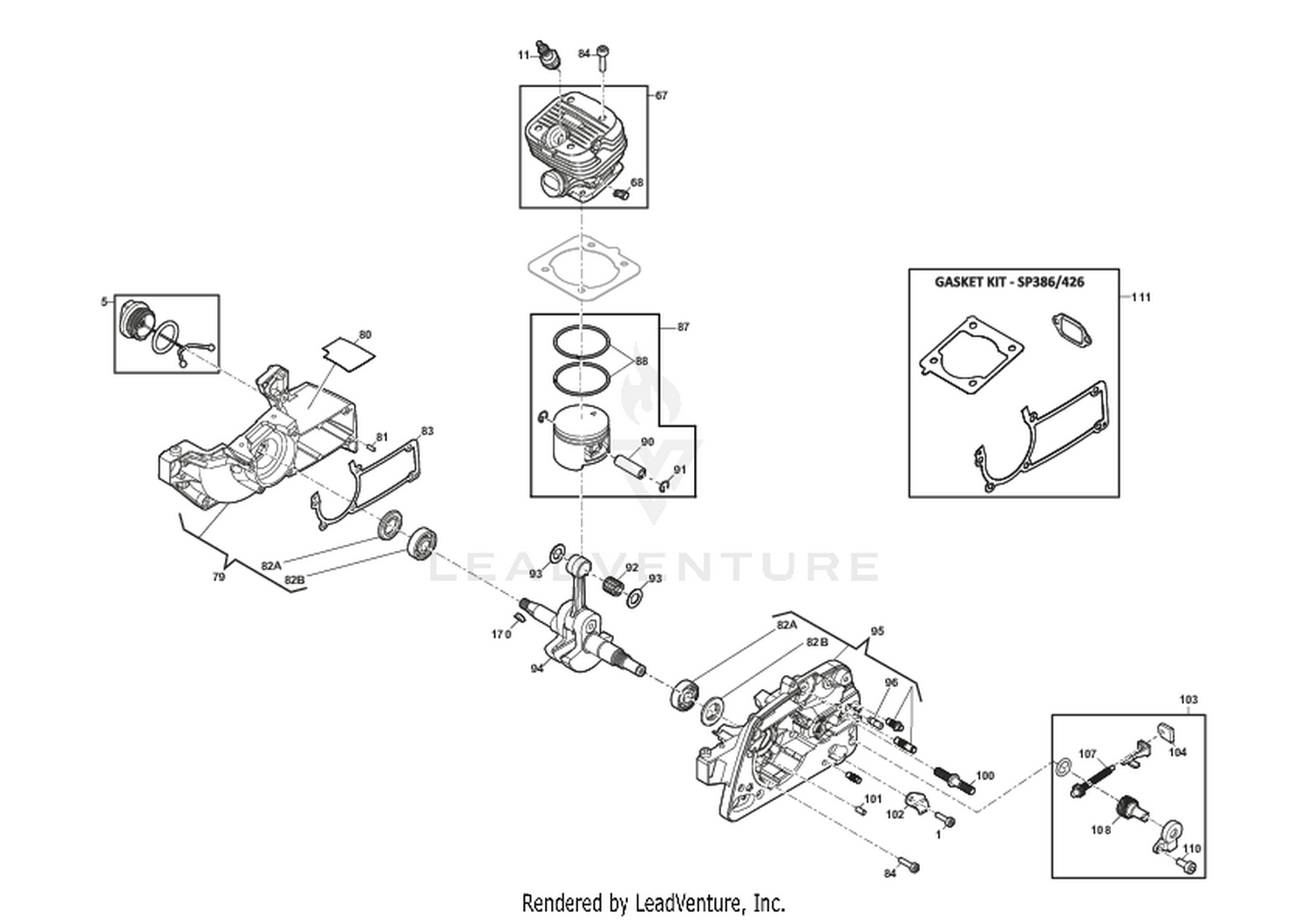

Engine - Cylinder/Piston
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2135040 | Screw Price: Call Us |
| 5 | 118804307/1 | Tank Cap Assy Price: Call Us |
| 11 | 3210024 | Spark Plug Price: Call Us |
| 67 | 118805700/0 | Cylinder Assy Price: Call Us |
| 68 | 118804382/0 | Nozzle Price: Call Us |
| 79 | 118804905/0 | Left Crankcase Assy Price: Call Us |
| 80 | 118804366/0 | Heat Insulator Price: Call Us |
| 81 | 123753000/0 | Needle Price: Call Us |
| 82A | 118804363/0 | Ball Bearing Price: Call Us |
| 82B | 118804364/0 | Oil Seal Price: Call Us |
| 83 | 118804340/0 | Gaskets Assy This part replaces 118804617/0. Price: Call Us |
| 84 | 2132550 | Screw Price: Call Us |
| 87 | 118805701/0 | Piston Assy Price: Call Us |
| 88 | 118804376/0 | Piston Ring Price: Call Us |
| 90 | 118805702/0 | Piston Pin Price: Call Us |
| 91 | 118804372/0 | Circlip Price: Call Us |
| 92 | 118804374/0 | Needle bearing Price: Call Us |
| 93 | 118804375/0 | Needle Bearing Gasket Price: Call Us |
| 94 | 118804371/1 | Crankshaft Price: Call Us |
| 95 | 118804906/0 | Right Crankcase Assy Price: Call Us |
| 96 | 118804587/0 | Nozzle Price: Call Us |
| 100 | 118804358/0 | Bolt Price: Call Us |
| 101 | 118801158/0 | Pin Price: Call Us |
| 102 | 323059044/0 | Chain Guard Price: Call Us |
| 103 | 118804907/0 | Chain Tensioner Price: Call Us |
| 104 | 118804285/0 | Plate Price: Call Us |
| 107 | 118804289/0 | Tensioner Screw Price: Call Us |
| 108 | 118804288/0 | Chain Tensioner Price: Call Us |
| 110 | 112726389/0 | Screw Price: Call Us |
| 111 | 118804340/0 | Gaskets Assy Price: Call Us |
