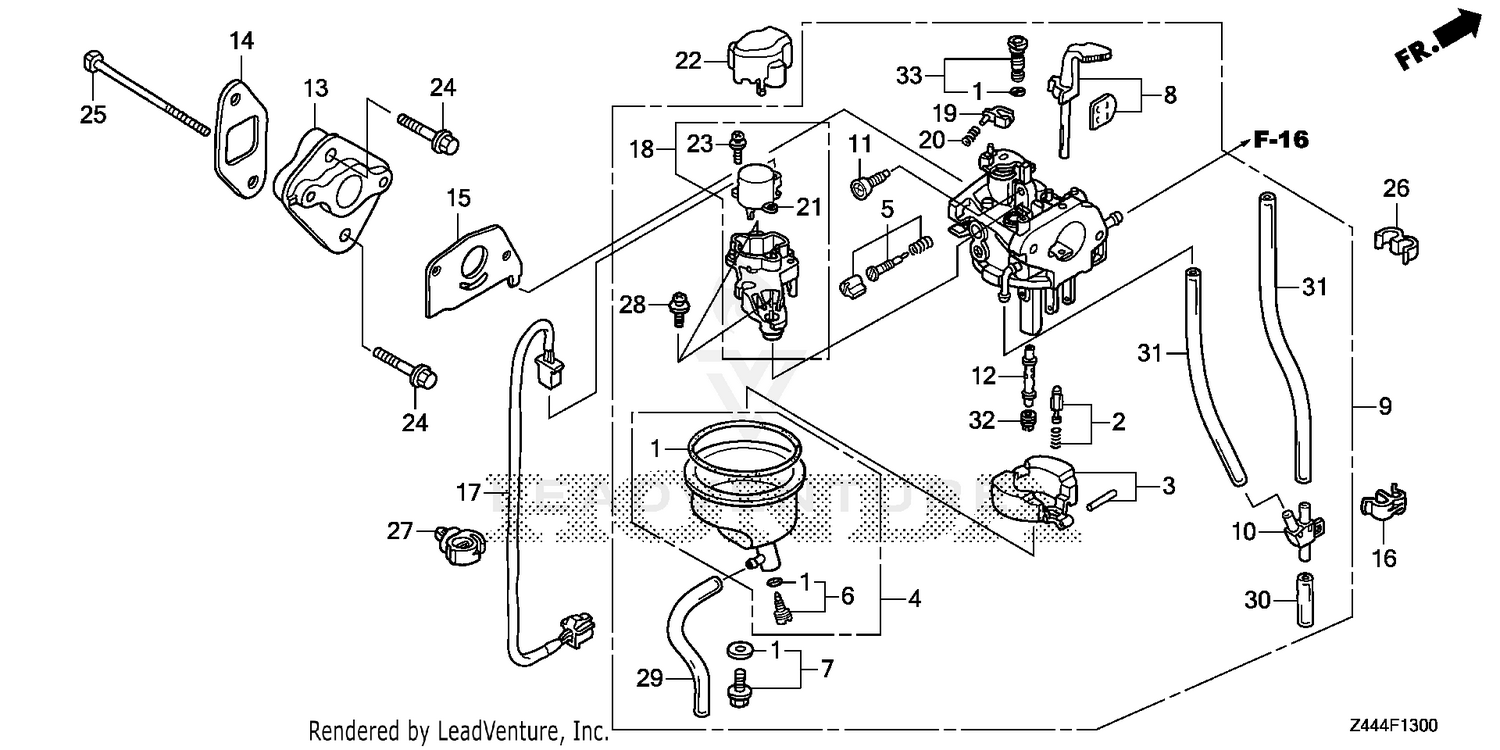

| Ref | Part Number | Description |
|---|
| 1 |
16010-ZM7-D01 |
GASKET SET (CARBURETOR NO.) Price: $17.20 |
| 2 |
16011-ZE0-005 |
VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED) Price: $29.34 |
| 4 |
16015-ZM7-003 |
CHAMBER SET, FLOAT (CARBURETOR NO.) Price: $60.12 |
| 5 |
16016-ZH7-W01 |
SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.) Price: $21.02 |
| 6 |
16024-ZB9-005 |
SCREW SET, DRAIN (CARBURETOR NO.) Price: $9.94 |
| 7 |
16028-ZW6-611 |
SEE PART DETAILS - PRI; SCREW SET This part replaces 16028-ZG0-811. Price: $14.88 |
| 8 |
16044-ZM7-D01 |
CHOKE SET Price: $38.84 |
| 9 |
16100-ZDJ-D01 |
CARBURETOR ASSY. (BF30H A) Price: $112.56 |
| 10 |
16112-ZM7-D01 |
JOINT, AIR VENT TUBE (CARBURETOR NO.) Price: $11.30 |
| 11 |
16124-ZE0-005 |
SCREW, THROTTLE STOP (Honda Code 1441559). Price: $17.88 |
| 12 |
16166-ZDJ-D01 |
NOZZLE, MAIN Price: $18.60 |
| 13 |
16211-Z0D-D01 |
SEE PART DETAILS - PRI; INSULATOR, CARBURETOR Price: $13.68 |
| 14 |
16212-Z0D-D00 |
GASKET, INSULATOR Price: $1.82 |
| 15 |
16221-ZG0-801 |
SEE PART DETAILS - PRI; GASKET, CARBURETOR Price: $2.66 |
| 16 |
17205-PC6-000 |
CLAMP, TUBE (7.5X2) Price: $11.40 |
| 17 |
32196-Z44-000 |
SUB-WIRE ASSY. Price: $6.18 |
| 18 |
36160-ZM7-D01 |
MOTOR ASSY., THROTTLE CONTROL Price: $112.68 |
| 19 |
36161-ZL0-D31 |
LEVER, LINK (CARBURETOR NO.) Price: $14.30 |
| 20 |
36162-ZL0-D31 |
SPRING, COMPRESSION COIL (CARBURETOR NO.) Price: $6.88 |
| 21 |
36165-ZL0-D31 |
MOTOR, THROTTLE CONTROL (CARBURETOR NO.) Price: $105.46 |
| 22 |
36168-Z39-C90 |
COVER, THROTTLE MOTOR Price: $1.02 |
| 23 |
90003-ZL0-D30 |
SCREW-WASHER (3X8) Price: $2.36 |
| 24 |
90004-GHB-670 |
BOLT, FLANGE (6X25) (NSHF) Price: $3.82 |
| 25 |
90010-Z0D-D00 |
BOLT, HEX. (5X95) Price: $4.14 |
| 26 |
90601-Z0D-D00 |
CLAMP, TUBE (7X8) Price: $3.68 |
| 27 |
90683-SA0-003 |
CLIP, WIRE HARNESS (25MM) (Honda Code 1226265). Price: $12.48 |
| 28 |
93893-04010-08 |
SEE PART DETAILS - PRI; SCREW-WASHER (4X10) Price: $1.68 |
| 29 |
95003-05008-60M |
BULK HOSE, VINYL (3.5X6.5X8000) (9500(95003-05001-60M) (CARBURETOR NO.) Price: $28.12 |
| 30 |
95003-07008-60M |
BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.) Price: $35.60 |
| 31 |
95003-07008-60M |
BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.) Price: $35.60 |
| 32 |
99101-ZG0-0650 |
JET, MAIN (#65) (CARBURETOR NO.) Price: $8.52 |
