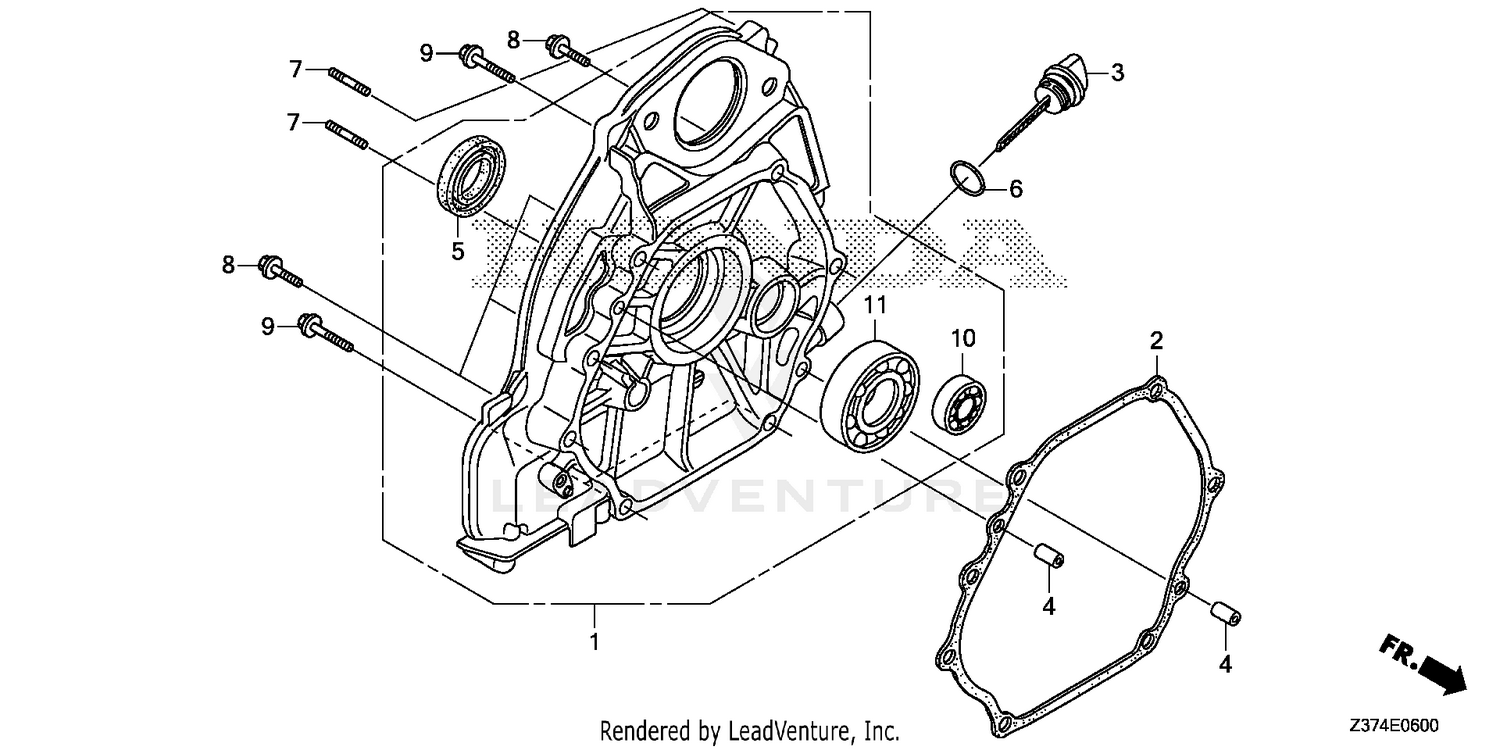

| Ref | Part Number | Description |
|---|
| 1 |
11300-ZF6-425 |
COVER ASSY., CRANKCASE Price: $259.96 |
| 2 |
11381-Z5T-000 |
GASKET, CRANKCASE COVER Price: $6.10 |
| 3 |
15620-ZE2-700 |
CAP, OIL FILLER Price: $8.30 |
| 4 |
90701-HC4-000 |
PIN, DOWEL (8X12) (Honda Code 2978443). Price: $3.72 |
| 5 |
91201-Z1C-003 |
OIL SEAL (35X52X8) (NOK) Price: $10.22 |
| 5 |
91201-ZE3-004 |
OIL SEAL (35X52X8) (Honda Code 2108595). Price: $10.94 |
| 6 |
91301-805-000 |
SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185). Price: $5.00 |
| 7 |
92900-08055-0B |
BOLT, STUD (8X55) Price: $3.60 |
| 8 |
95701-08040-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775). Price: $2.78 |
| 9 |
95701-08060-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X60) (Honda Code 2488526). Price: $3.08 |
| 10 |
96100-62020-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941). Price: $11.68 |
