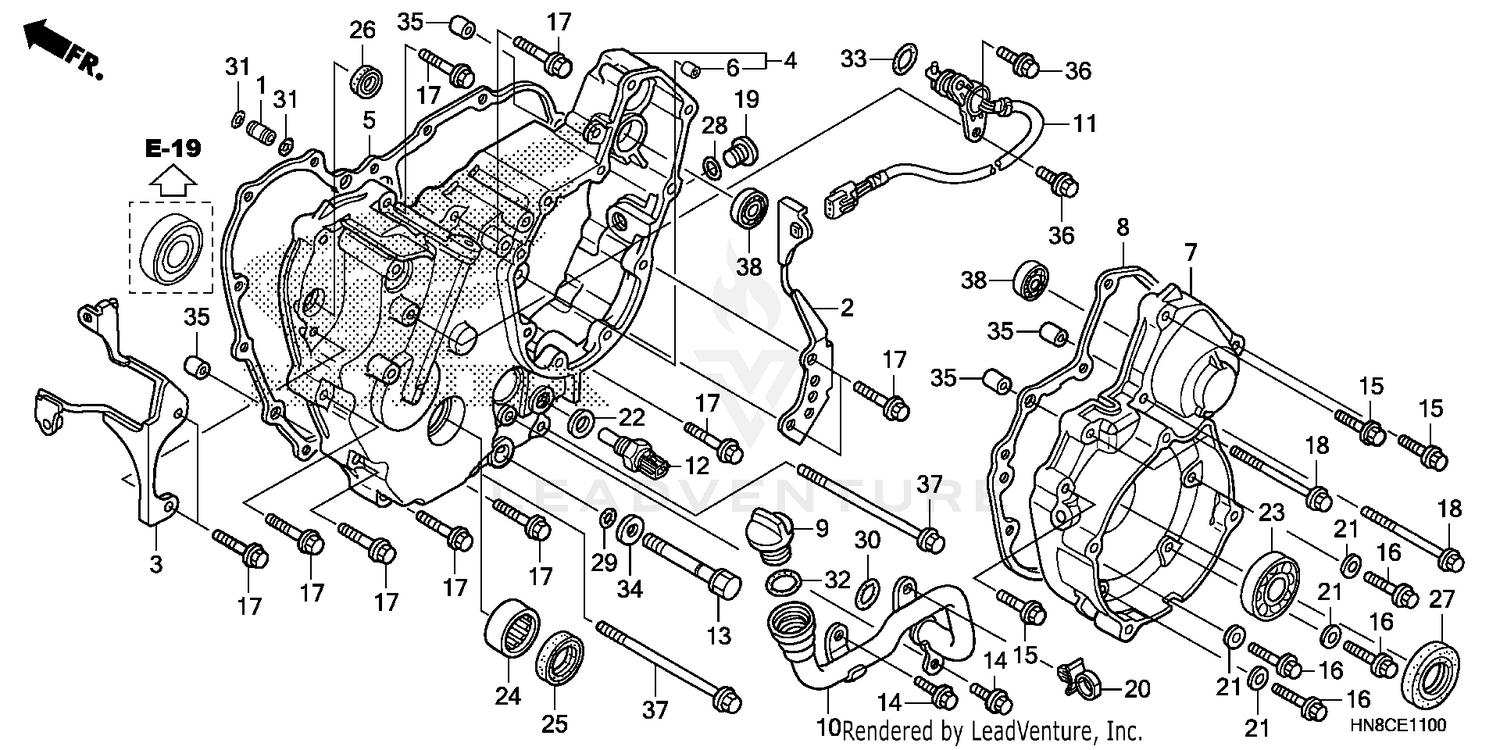

| Ref | Part Number | Description |
|---|
| 1 |
11145-HN8-010 |
PIN, OIL GUIDE (8MM) Price: $10.29 |
| 2 |
11312-HN8-000 |
STAY, R. RR. ENGINE SIDE COVER Price: $21.53 |
| 3 |
11322-HN8-A60 |
STAY, L. RR. ENGINE SIDE COVER Price: $23.67 |
| 4 |
11340-HN8-A60 |
COVER, RR. Price: $249.60 |
| 5 |
11345-HN8-000 |
GASKET, RR. COVER Price: $26.89 |
| 6 |
11349-HN8-300 |
ORIFICE (1.0MM) Price: $4.87 |
| 7 |
11350-HN8-F40 |
COVER, ALTERNATOR Price: $136.01 |
| 8 |
11396-HN8-A60 |
GASKET, ALTERNATOR COVER Price: $21.11 |
| 9 |
15655-HN8-010 |
CAP, OIL FILLER Price: $12.60 |
| 10 |
15660-HN8-000 |
PIPE, OIL FILLER Price: $87.13 |
| 11 |
35759-HN8-000 |
SWITCH ASSY., CHANGE Price: $102.58 |
| 12 |
37750-KPH-701 |
SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445) Price: $61.02 |
| 13 |
90002-HL3-A00 |
BOLT, DRAIN PLUG (12MM) Price: $13.65 |
| 14 |
90004-GHB-620 |
BOLT, FLANGE (6X14) (NSHF) Price: $4.29 |
| 15 |
90004-GHB-680 |
BOLT, FLANGE (6X28) (NSHF) Price: $4.18 |
| 16 |
90004-GHB-690 |
BOLT, FLANGE (6X32) (NSHF) Price: $4.84 |
| 17 |
90004-GHB-700 |
BOLT, FLANGE (6X35) (NSHF) Price: $5.11 |
| 18 |
90004-GHB-810 |
BOLT, FLANGE (6X90) (NSHF) Price: $6.95 |
| 19 |
90084-KY2-000 |
CAP (14MM) Price: $19.35 |
| 20 |
90115-HN8-000 |
CLIP, FUEL BREATHER TUBE Price: $1.53 |
| 21 |
90443-035-000 |
WASHER A, SEALING (6MM) Price: $4.58 |
| 22 |
90443-MB0-000 |
WASHER, SEALING (10.2MM) Price: $3.53 |
| 23 |
91015-HN8-003 |
BEARING, RADIAL BALL (6906) Price: $14.82 |
| 24 |
91021-HN8-003 |
BEARING, NEEDLE (25X37X17) Price: $17.45 |
| 25 |
91203-KCY-671 |
OIL SEAL (25X35X5) Price: $8.95 |
| 26 |
91204-KE8-003 |
OIL SEAL (13X22X5) (ARAI) Price: $3.91 |
| 27 |
91261-MB0-003 |
OIL SEAL (34X50X7) (ARAI) Price: $14.71 |
| 28 |
91303-377-000 |
O-RING (13.8X2.5) Price: $4.29 |
| 29 |
91305-GE1-920 |
O-RING (9X1.8) Price: $2.05 |
| 30 |
91305-HN8-003 |
O-RING (17X3.6) Price: $3.02 |
| 31 |
91305-MG7-003 |
O-RING (5X1.7) (ARAI) Price: $3.62 |
| 32 |
91307-425-003 |
O-RING (21.5X3.2) Price: $2.93 |
| 33 |
91333-KE5-003 |
O-RING (17.0X2.5) (ARAI) Price: $2.55 |
| 34 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 35 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 36 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 37 |
95701-08140-00 |
BOLT, FLANGE (8X140) Price: $3.24 |
