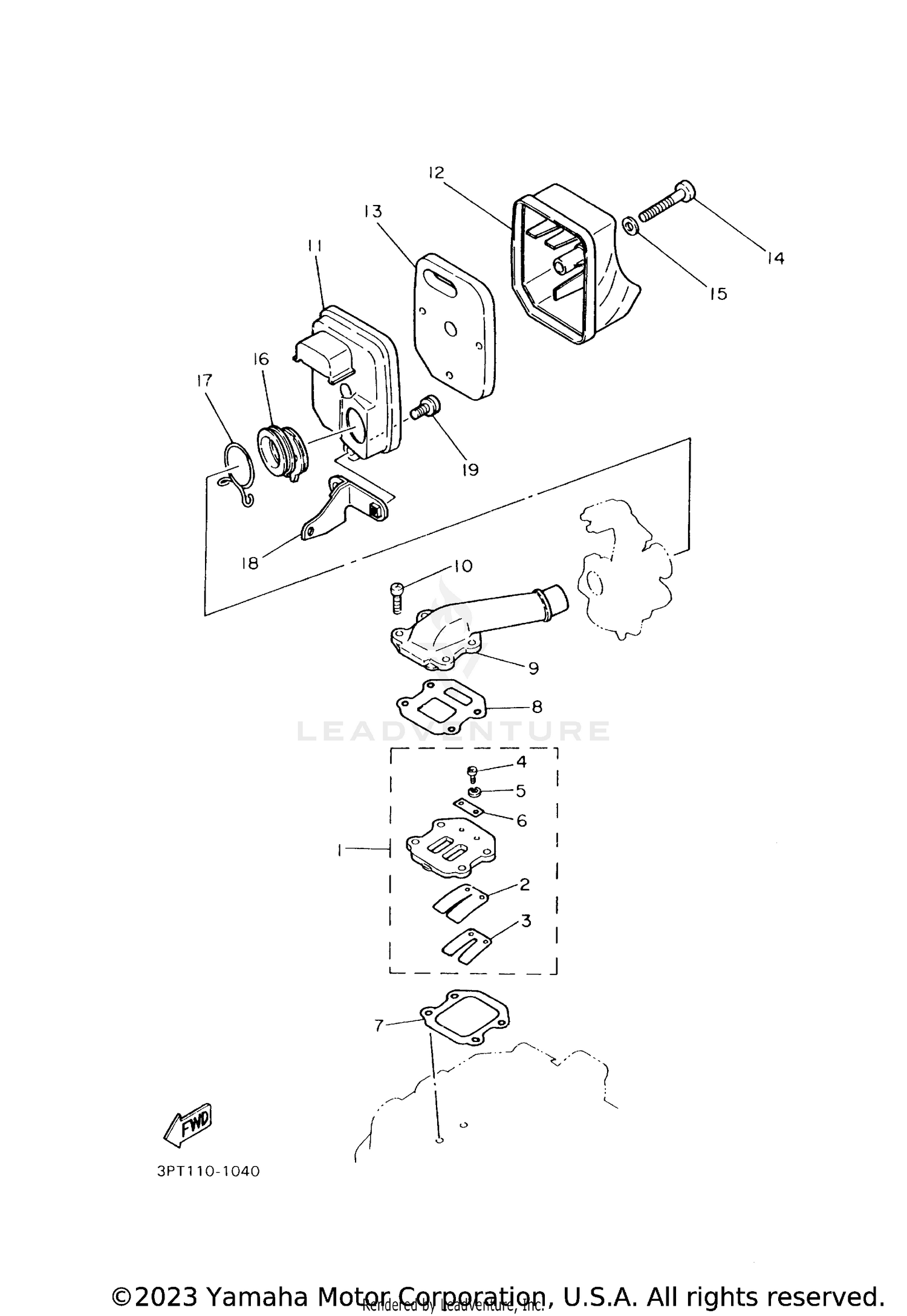

| Ref | Part Number | Description |
|---|
| 1 |
3L5-13610-00-00 |
REED VALVE ASSY Price: $88.99 |
| 2 |
3L5-13613-00-00 |
REED, VALVE Price: $46.99 |
| 3 |
3L5-13616-00-00 |
STOPPER, REED VALVE Price: $10.99 |
| 4 |
98507-03010-00 |
SCREW, PAN HEAD Price: $3.85 |
| 5 |
92990-03100-00 |
WASHER, SPRING This part replaces 92907-03100-00. Price: $9.49 |
| 6 |
3L5-13624-00-00 |
PLATE, REED VALVE Price: $7.49 |
| 7 |
3HK-13621-00-00 |
GASKET, VALVE SEAT Price: $22.99 |
| 8 |
3L5-13622-10-00 |
GASKET, VALVE SEAT Price: $31.99 |
| 9 |
3L5-13555-00-00 |
MANIFOLD, INTAKE Price: $71.99 |
| 10 |
98517-06020-00 |
SCREW,PAN HEAD This part replaces 98507-06020-00. Price: $2.35 |
| 11 |
4X4-14411-00-00 |
CASE, AIR CLEANER 1 Price: $34.99 |
| 12 |
4X4-14412-00-00 |
CAP, CLEANER CASE 1 Price: $30.99 |
| 13 |
4X4-14451-00-00 |
ELEMENT, AIR CLEANER Price: $8.99 |
| 14 |
98507-06045-00 |
SCREW, PAN HEAD Price: $3.40 |
| 15 |
92907-06600-00 |
WASHER, PLATE Price: $1.00 |
| 16 |
4X4-14453-00-00 |
JOINT, AIR CLEANER 1 Price: $25.99 |
| 17 |
90467-20023-00 |
CLIP Price: $6.49 |
| 18 |
4X4-14493-01-00 |
STAY 1 Price: $24.99 |
