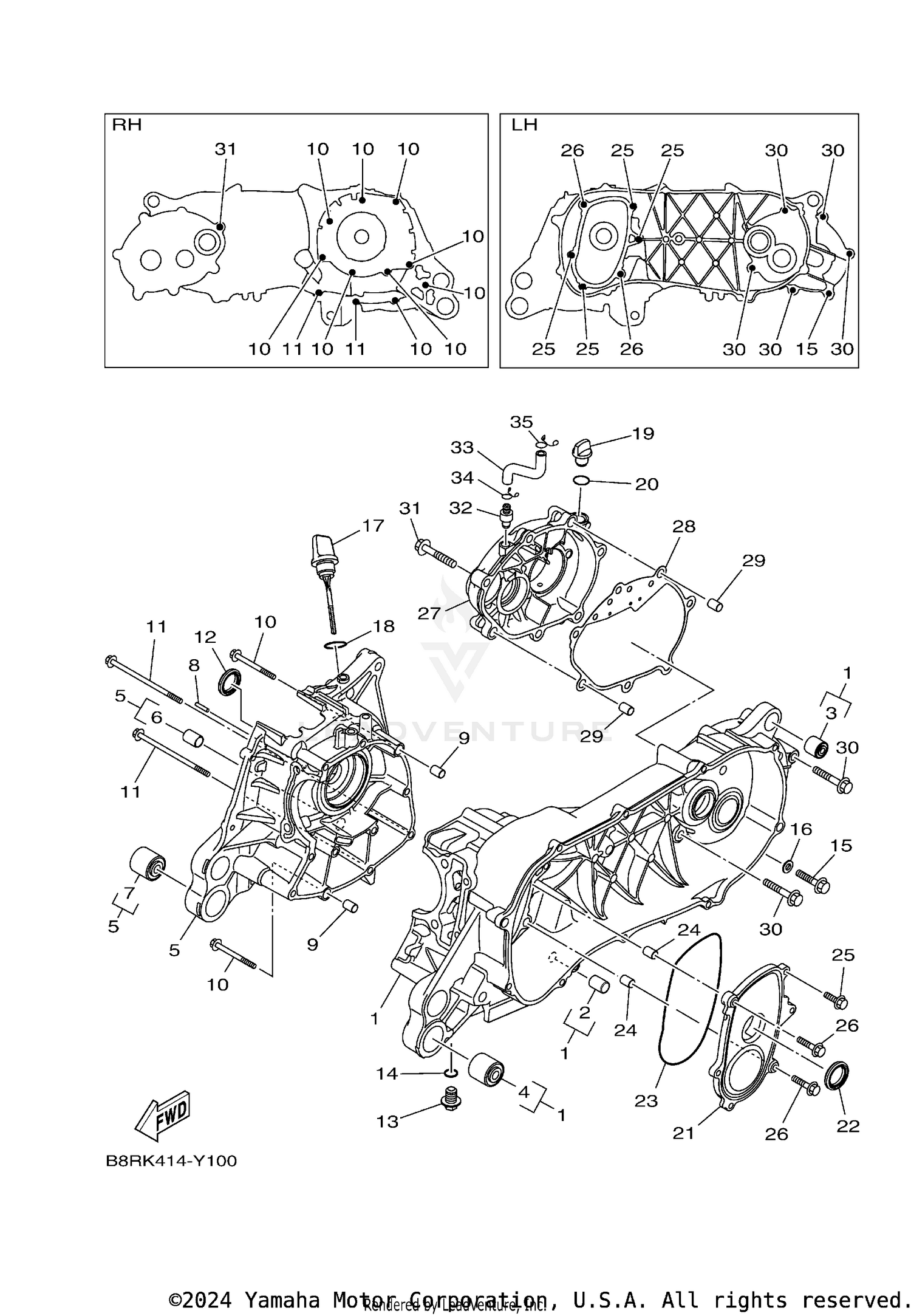

| Ref | Part Number | Description |
|---|
| 1 |
B8R-WE511-10-00 |
CRANKCASE 1 Price: $210.99 |
| 2 |
1SH-F7121-00-00 |
BUSH Price: $2.80 |
| 3 |
164-22216-00-00 |
BUSH, REAR SHOCK ABSORBER This part replaces 4X6-F2216-00-00. Price: $14.49 |
| 4 |
90388-10808-00 |
DAMPER Price: $11.49 |
| 5 |
B8R-WE512-00-00 |
CRANKCASE 2 Price: $163.99 |
| 6 |
1SH-F7121-00-00 |
BUSH Price: $2.80 |
| 7 |
90388-10808-00 |
DAMPER Price: $11.49 |
| 8 |
99480-03012-00 |
PIN Price: $2.15 |
| 9 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 10 |
95E32-06060-00 |
BOLT, FLANGE DEEP RECESS Price: $0.95 |
| 11 |
95E32-06110-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 12 |
93102-22829-00 |
OIL SEAL Price: $4.45 |
| 13 |
90340-12816-00 |
PLUG, STRAIGHT SCREW Price: $2.25 |
| 14 |
90430-12803-00 |
GASKET Price: $1.85 |
| 15 |
95D32-08045-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 16 |
90430-08804-00 |
GASKET Price: $2.25 |
| 17 |
B8R-E5362-00-00 |
PLUG, OIL LEVEL Price: $2.25 |
| 18 |
5ML-E3769-00-00 |
O-RING This part replaces 5LW-E3769-00-00. Price: $0.40 |
| 19 |
B8R-E5363-00-00 |
PLUG, OIL Price: $1.15 |
| 20 |
93210-14816-00 |
O-RING Price: $3.50 |
| 21 |
B8R-E5423-01-00 |
COVER 2 Price: $13.99 |
| 22 |
93102-24802-00 |
OIL SEAL Price: $4.25 |
| 23 |
93211-28801-00 |
O-RING Price: $3.50 |
| 24 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 25 |
95E32-06020-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 26 |
95E32-06030-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 27 |
B8R-E5421-01-00 |
COVER, CRANKCASE 2 Price: $49.99 |
| 28 |
B6H-E5461-10-00 |
GASKET, CRANKCASE COVER 2 Price: $1.25 |
| 29 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 30 |
95E32-08045-00 |
BOLT, FLANGE DEEP RECESS Price: $0.80 |
| 31 |
95E32-08035-00 |
BOLT, FLANGE DEEP RECESS Price: $0.85 |
| 32 |
B6H-E5371-00-00 |
BREATHER Price: $1.70 |
| 33 |
B6H-E5373-00-00 |
PIPE, BREATHER Price: $3.50 |
| 34 |
90467-100A1-00 |
CLIP This part replaces 90467-10008-00. Price: $8.49 |
