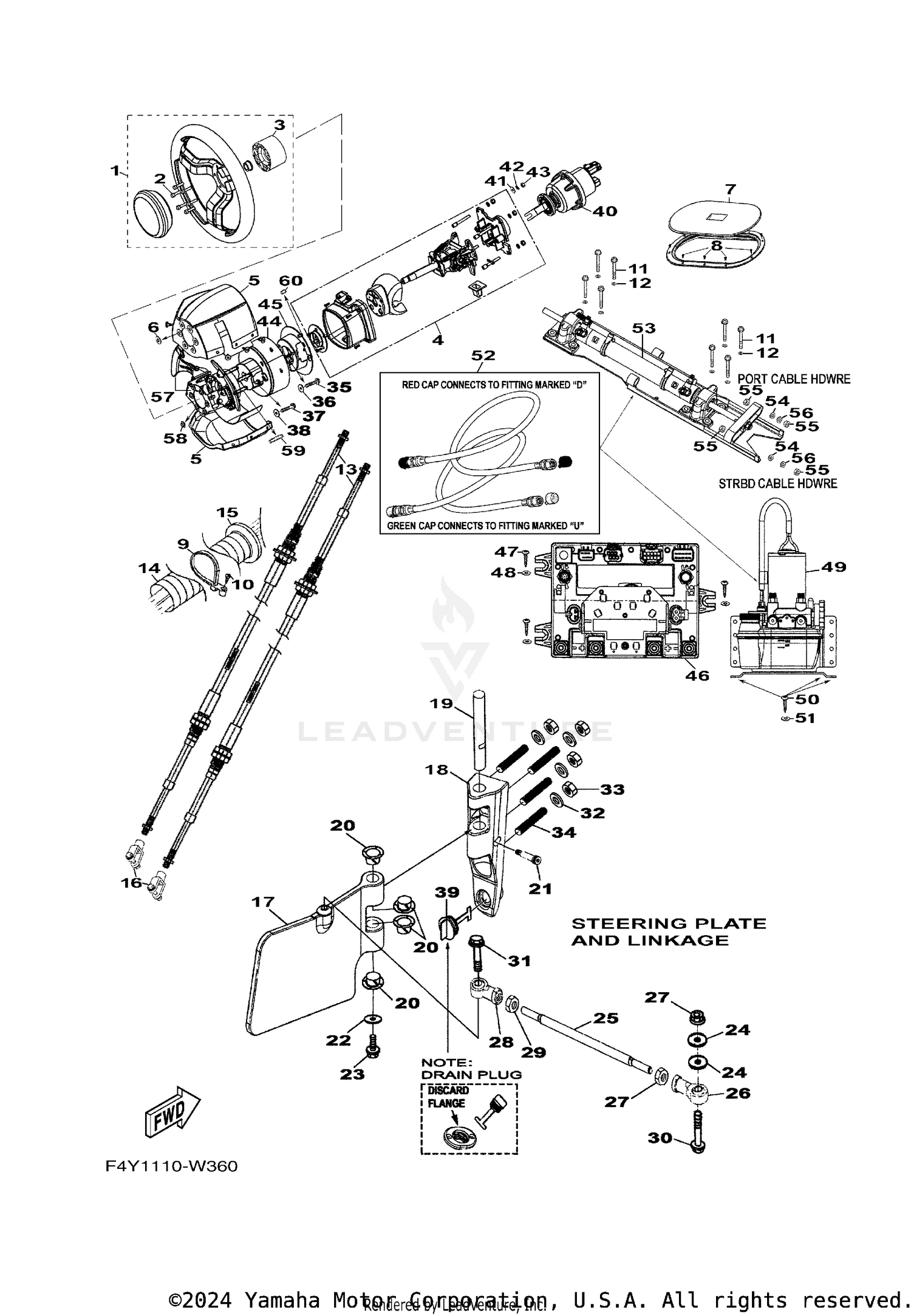

| Ref | Part Number | Description |
|---|
| 1 |
F4X-U1511-11-00 |
WHEEL, STEERING This part replaces F4X-U1511-00-00. Price: $587.99 |
| 2 |
91380-06016-00 |
BOLT Price: $7.49 |
| 4 |
F4X-U1400-00-00 |
STEERING MASTER AS Price: $611.99 |
| 5 |
F4X-U7437-00-00 |
COVER Price: $439.99 |
| 6 |
90201-10800-00 |
WASHER, PLATE Price: $6.99 |
| 7 |
F1T-U7861-00-00 |
COVER INSPECTION Price: $96.99 |
| 8 |
90161-08SA6-00 |
SCREW, TAPPING Price: $5.99 |
| 9 |
90464-44801-00 |
CLAMP Price: $0.20 |
| 10 |
90167-10S08-00 |
SCREW, #10 X 1/2" Price: $4.99 |
| 11 |
90162-12S24-00 |
SCREW, TAPPING Price: $4.99 |
| 12 |
90209-12SB6-00 |
WASHER Price: $5.99 |
| 13 |
F4X-U1470-10-00 |
STEERING CABLE ASS Price: $349.99 |
| 14 |
F1T-U773J-00-00 |
PROTECTOR, HOSE Price: $14.99 |
| 15 |
F1C-U136D-10-00 |
GROMMET Price: $5.99 |
| 16 |
GP1-U1406-00-00 |
CONNECTOR SUB-ASSY. Price: $153.99 |
| 17 |
F4A-U159B-00-00 |
PLATE, STEERING Price: $347.99 |
| 18 |
F4A-U1554-00-00 |
PLATE, RETAINING Price: $347.99 |
| 19 |
F3F-U134L-00-00 |
SHAFT,PIVOT Price: $119.99 |
| 20 |
F3F-U1344-00-00 |
BUSH Price: $5.99 |
| 21 |
90110-14S23-00 |
BOLT, HEXAGON SOCKET HEAD Price: $7.99 |
| 22 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 23 |
90149-14SE8-00 |
SCREW Price: $5.99 |
| 24 |
90201-10800-00 |
WASHER, PLATE Price: $6.99 |
| 25 |
F3F-U1311-00-00 |
TIE BAR Price: $91.99 |
| 26 |
F3F-U1351-00-00 |
ROD, STEERING LINK Price: $67.99 |
| 27 |
90170-10810-00 |
NUT Price: $7.99 |
| 28 |
F3F-U1351-10-00 |
ROD, STEERING LINK Price: $87.99 |
| 29 |
90170-10820-00 |
NUT Price: $8.99 |
| 30 |
90110-10807-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.99 |
| 31 |
90101-10SA1-00 |
BOLT Price: $3.99 |
| 32 |
90201-15SA1-00 |
WASHER, PLATE Price: $6.99 |
| 33 |
95780-08300-00 |
NUT, FLANGE Price: $11.80 |
| 34 |
90116-08845-00 |
BOLT, STUD Price: $6.99 |
| 35 |
90110-05811-00 |
BOLT, HEXAGON SOCK Price: $15.99 |
| 36 |
9299R-05200-00 |
WASHER Price: $6.99 |
| 37 |
90110-05812-00 |
BOLT, HEXAGON SOCK Price: $17.99 |
| 38 |
9299R-05200-00 |
WASHER Price: $6.99 |
| 39 |
F2J-U2280-00-00 |
DRAIN PLUG ASSY. Price: $10.99 |
| 40 |
F4X-U15A0-00-00 |
HELM ASSY. Price: $1,079.99 |
| 41 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 42 |
90204-14S00-00 |
WASHER, SPRING Price: $5.99 |
| 43 |
90170-14S00-00 |
NUT Price: $4.99 |
| 44 |
F4X-U591A-00-00 |
CASE ASSY 1 Price: $44.99 |
| 45 |
F4X-U591A-10-00 |
CASE ASSY 1 Price: $16.99 |
| 46 |
F4X-H59A0-10-00 |
POWER STRG. CONT. UNIT ASSY This part replaces F4X-H59A0-00-00. Price: $2,012.99 |
| 47 |
90167-14S16-00 |
SCREW, TAPPING Price: $0.45 |
| 48 |
90201-16S00-00 |
WASHER, PLATE Price: $3.99 |
| 49 |
F4X-K611A-00-00 |
POWER STEERING PUM Price: $933.99 |
| 50 |
90167-14S24-00 |
SCREW, TAPPING Price: $4.99 |
| 51 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 52 |
F3R-U1377-00-00 |
HOSE STEERING Price: $373.99 |
| 53 |
F4X-G2401-00-00 |
POWER STEERING CYL Price: $1,508.99 |
| 54 |
90201-15S00-00 |
WASHER, 5/16" FLAT Price: $0.15 |
| 55 |
90170-15SA1-00 |
NUT Price: $7.99 |
| 56 |
90204-15S00-00 |
WASHER, SPRING Price: $7.99 |
| 57 |
F4X-67255-00-00 |
LEVER, THROTTLE Price: $1,569.99 |
| 58 |
90387-08038-00 |
COLLAR Price: $15.99 |
| 59 |
90387-05059-00 |
COLLAR Price: $18.49 |
