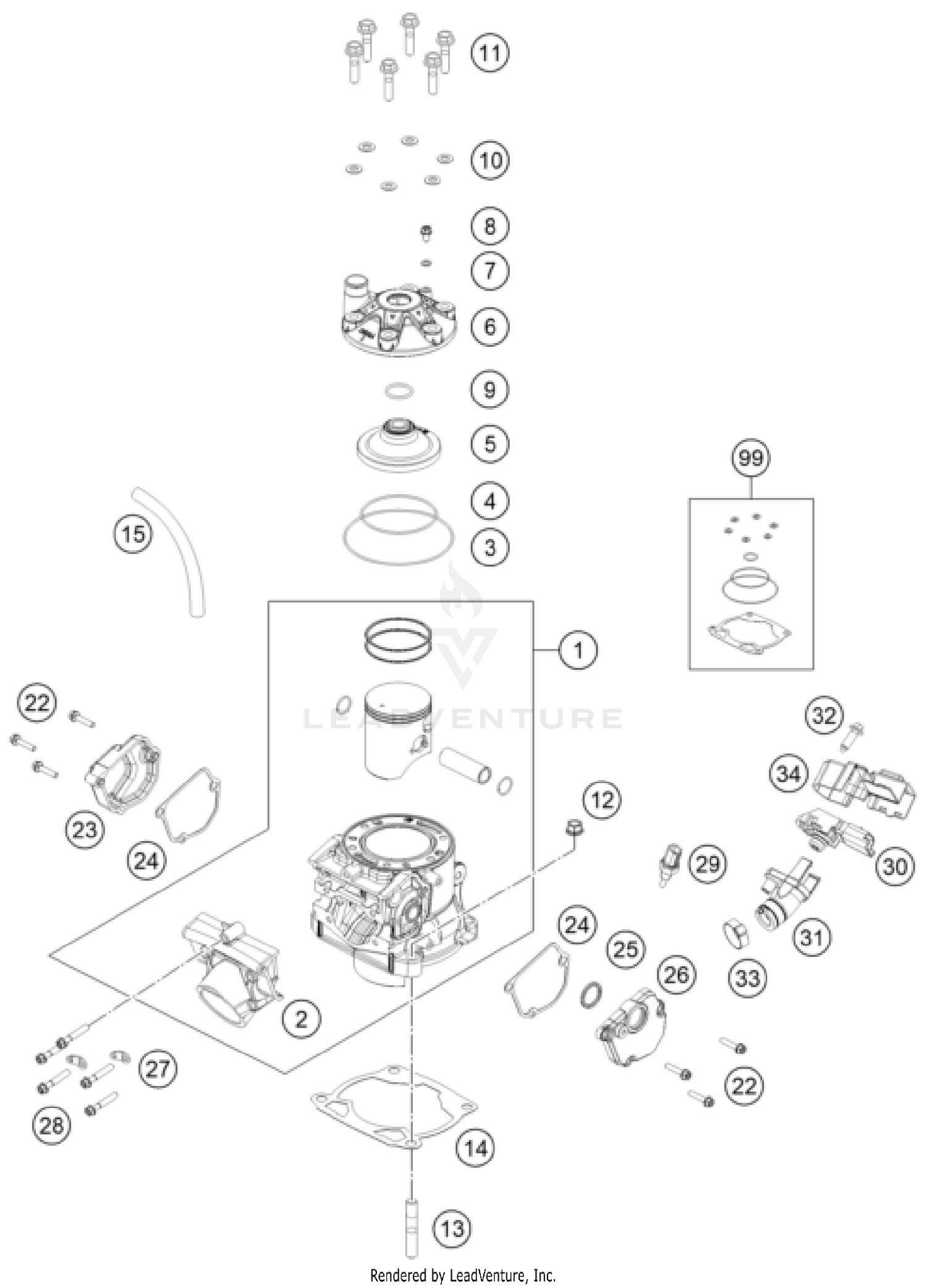

CYLINDER, CYLINDER HEAD
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A44037201010 | Intermediate flange premachined Price: $132.49 |
| 3 | 0770107020 | O-Ring 107x2 Price: $3.99 |
| 4 | 0770078020 | O-RING 78,00X2,00 VIT. BLACK Price: $6.15 |
| 5 | A45030060000 | Combustion chamber insert 300 SX Price: $60.71 |
| 6 | A45030006100 | Cylinder head Price: $36.29 |
| 7 | 0603061001 | CU-SEAL RING DIN7603-6X10X1 Price: $2.99 |
| 8 | 0025060106 | HH collar screw M6x10 TX30 Price: $3.99 |
| 9 | 0770023025 | O-ring 23x2,5 Viton 75SH Price: $1.99 |
| 10 | 56530080000 | CU-SEAL RING 8 X 16 X 1 Price: $2.99 |
| 11 | 54830079000 | COLLAR SCREW M 8X35 WS=13 Price: $4.99 |
| 12 | 55530044000 | Collar nut M10-SW13 ZnNi Price: $1.99 |
| 13 | 0835100300 | Stud bolt M10x30 Price: $2.99 |
| 22 | 0025050256 | HH COLLAR SCREW M5X25 ISA30 Price: $1.99 |
| 24 | A44037006000 | Control cover seal, left Price: $6.15 |
| 25 | 0770002226200 | X-ring 21.89x2.62 FKM 70 Price: $2.99 |
| 27 | 51005074000 | RETAINING PLATE Price: $3.99 |
| 28 | 0025060356 | HH collar screw M6x35 TX30 Price: $3.99 |
| 31 | A44041087000 | Pressure sensor flange Price: $14.18 |
| 32 | 0017060206 | SCREW F. PLASTIC K60X20AL SW6 Price: $3.99 |
| 33 | 00050210706 | VARIABLE ONE-EAR CLAMP 21,0MM Price: $2.99 |
| 34 | A45041075060 | Pressure sensor cover Price: $2.99 |
