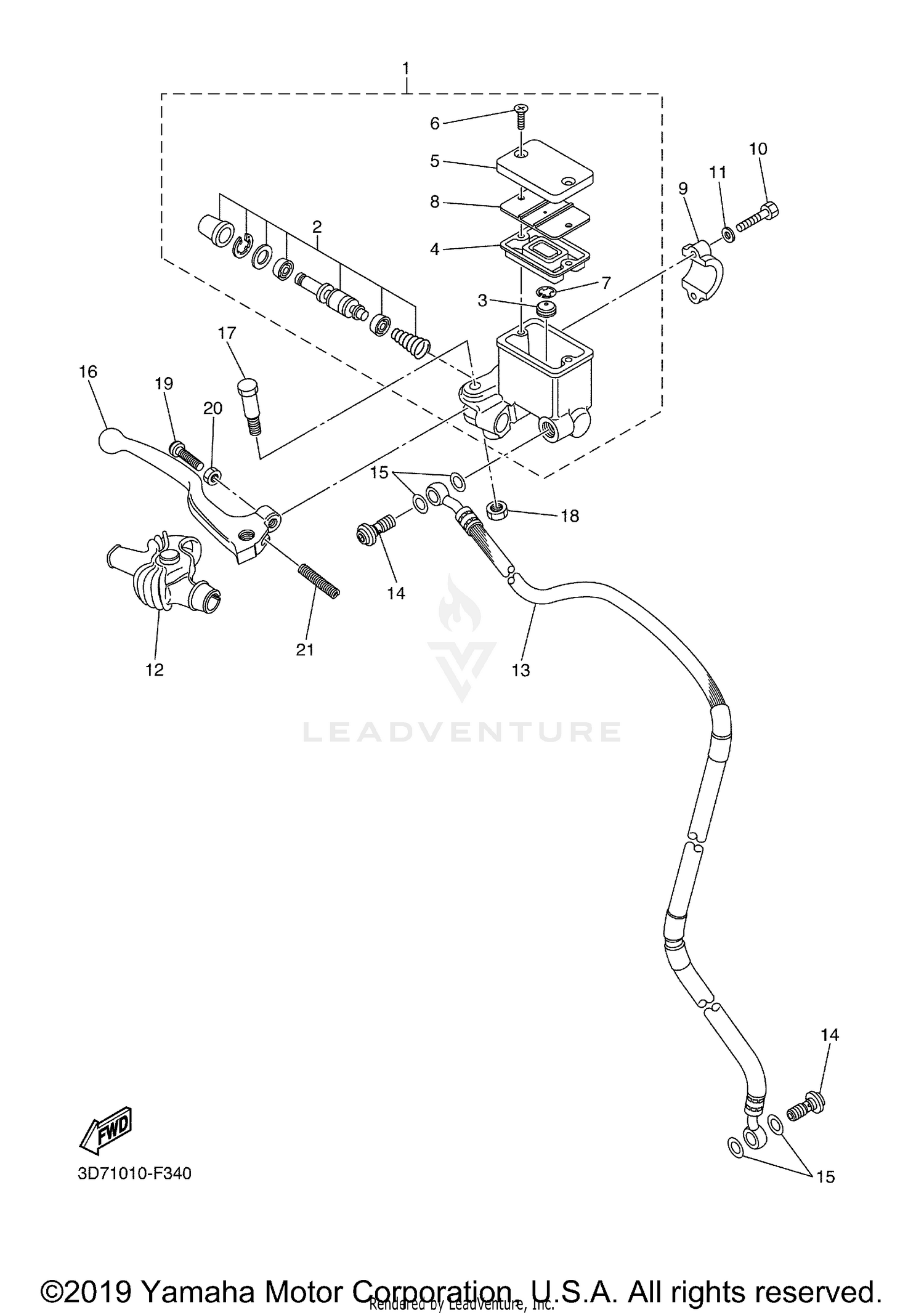

| Ref | Part Number | Description |
|---|
| 1 |
3D7-W2587-00-00 |
MASTER CYLINDER SUB ASSY Price: $201.99 |
| 2 |
5XT-W0041-00-00 |
CYLINDER KIT, MASTER Price: $39.99 |
| 3 |
5CG-25715-00-00 |
SEPARATOR ASSY Price: $14.49 |
| 4 |
55U-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $30.99 |
| 5 |
3GM-25852-22-00 |
CAP, RESERVOIR Price: $69.99 |
| 6 |
98707-04012-00 |
SCREW, FLAT HEAD Price: $1.85 |
| 7 |
5CG-2585G-00-00 |
CIRCLIP Price: $5.99 |
| 8 |
3GM-2585B-20-00 |
PLATE, DIAPHRAGM Price: $21.99 |
| 9 |
56A-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $31.99 |
| 10 |
97017-06025-00 |
BOLT This part replaces 97007-06025-00. Price: $4.55 |
| 11 |
92907-06600-00 |
WASHER, PLATE Price: $1.00 |
| 12 |
1T5-26372-00-00 |
COVER, HANDLE LEVER 1 Price: $22.99 |
| 13 |
3D7-25872-00-00 |
HOSE, BRAKE 1 Price: $122.99 |
| 14 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 15 |
90430-10005-00 |
GASKET Price: $9.49 |
| 16 |
55Y-83922-02-00 |
LEVER 2 Price: $41.99 |
| 17 |
90109-06577-00 |
BOLT Price: $6.49 |
| 18 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 19 |
90149-06131-00 |
SCREW Price: $9.49 |
| 20 |
90170-06021-00 |
NUT Price: $3.70 |
