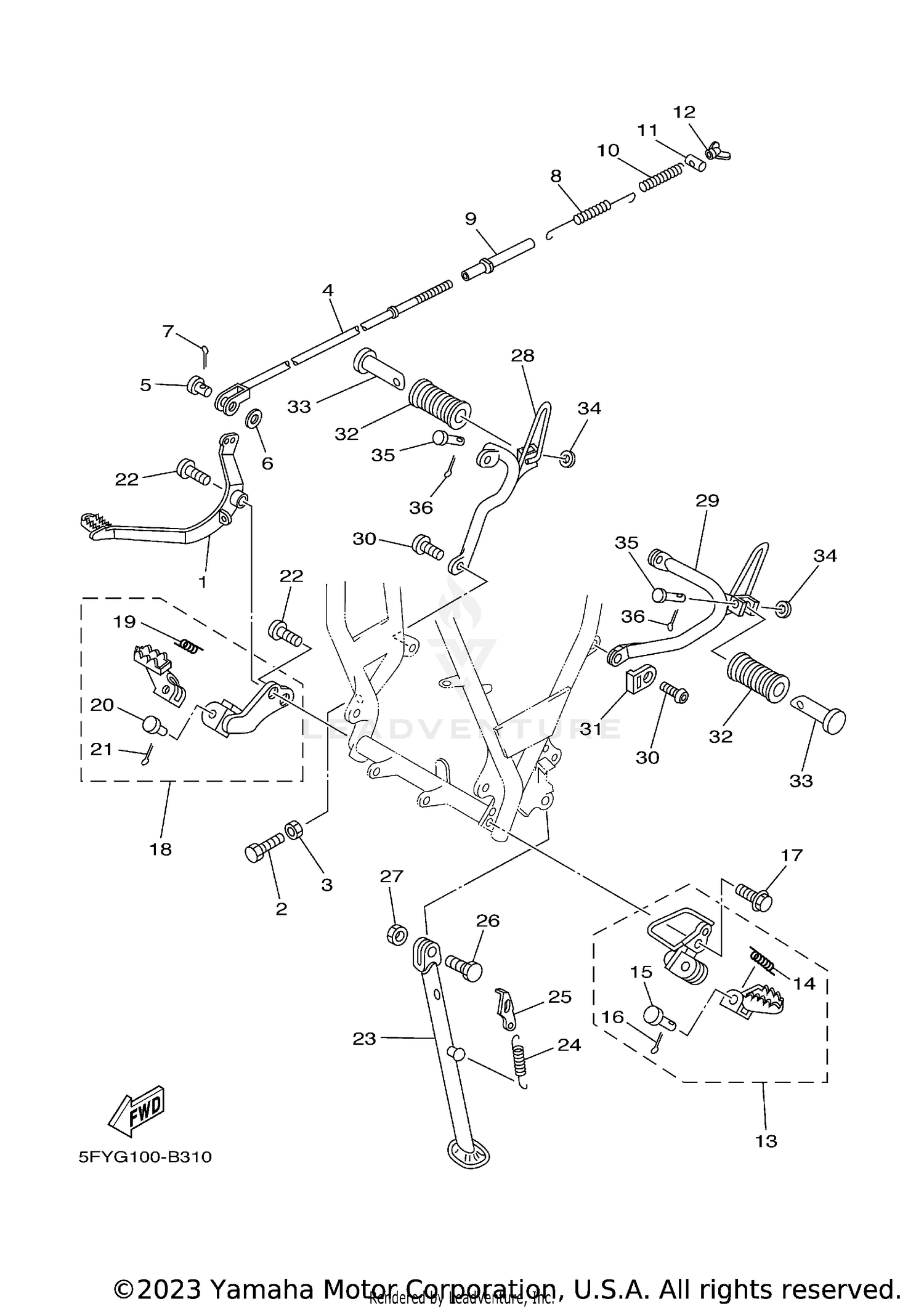

| Ref | Part Number | Description |
|---|
| 2 |
97017-06020-00 |
BOLT This part replaces 97007-06020-00. Price: $4.06 |
| 3 |
95317-06700-00 |
NUT This part replaces 95307-06700-00. Price: $9.49 |
| 4 |
2JX-27231-00-00 |
ROD, BRAKE Price: $25.99 |
| 5 |
90240-06076-00 |
PIN, CLEVIS Price: $9.49 |
| 6 |
92907-06200-00 |
WASHER Price: $9.49 |
| 7 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
| 8 |
90506-18289-00 |
SPRING, TENSION Price: $16.49 |
| 9 |
1M1-27244-00-00 |
COVER Price: $7.49 |
| 10 |
90501-10245-00 |
SPRING, COMPRESSION Price: $9.49 |
| 11 |
90249-12008-00 |
PIN, SPECIAL SHAPE Price: $9.49 |
| 12 |
90175-06013-00 |
NUT, WING Price: $5.49 |
| 14 |
90508-20023-00 |
SPRING, TORSION Price: $4.25 |
| 15 |
91701-08038-00 |
PIN, CLEVIS Price: $4.45 |
| 16 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 17 |
95817-12025-00 |
BOLT, FLANGE This part replaces 95827-12025-00. Price: $8.49 |
| 19 |
90508-20023-00 |
SPRING, TORSION Price: $4.25 |
| 20 |
91701-08038-00 |
PIN, CLEVIS Price: $4.45 |
| 21 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 22 |
90111-10019-00 |
BOLT,HEX. SOCKET BUT This part replaces 90111-10004-00. Price: $3.90 |
| 23 |
2JX-27311-02-00 |
STAND, SIDE Price: $133.99 |
| 24 |
4KN-27116-00-00 |
SPRING,TENSION This part replaces 90506-29360-00. Price: $14.49 |
| 25 |
5RS-27315-00-00 |
LINK, SIDE STAND Price: $10.99 |
| 26 |
90109-10473-00 |
BOLT Price: $9.49 |
| 27 |
90185-10037-00 |
NUT, SELF-LOCKING Price: $10.49 |
| 28 |
2JX-27442-11-00 |
BRACKET 2 Price: $87.99 |
| 29 |
5RS-27432-01-00 |
BRACKET 1 Price: $100.99 |
| 30 |
92017-08016-00 |
BOLT, BUTTON HEAD Price: $6.49 |
| 31 |
2JX-27437-00-00 |
WASHER, SPECIAL Price: $41.99 |
| 32 |
120-27433-00-00 |
COVER, REAR FOOTREST Price: $9.49 |
| 33 |
2GV-27431-00-00 |
FOOTREST, REAR 1 This part replaces 120-27431-00-00. Price: $36.99 |
| 34 |
90201-20279-00 |
WASHER, PLATE Price: $9.49 |
| 35 |
91701-06032-00 |
PIN, CLEVIS Price: $10.49 |
