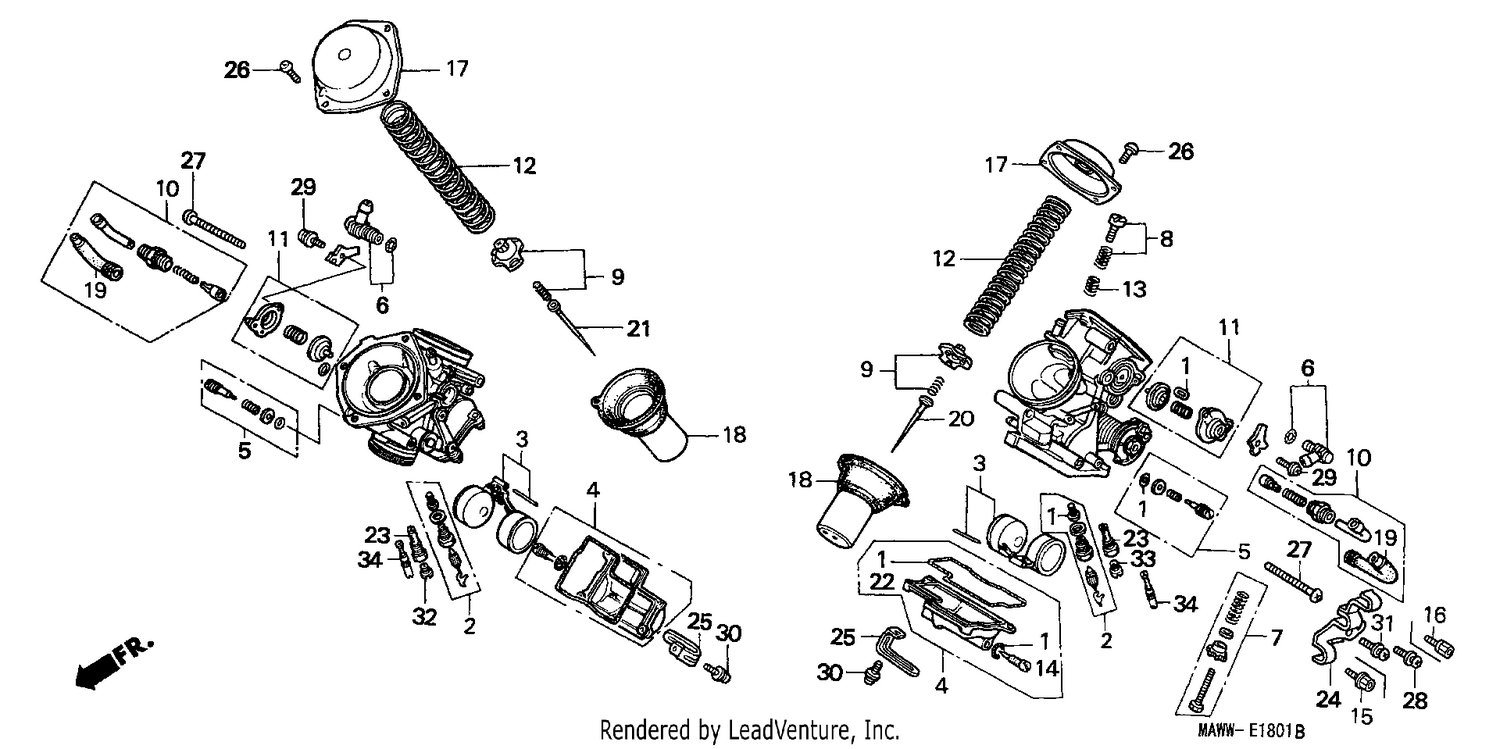

CARBURETOR (COMPONENT PARTS)

CARBURETOR (COMPONENT PARTS)

Parts (31)

RefPart NumberDescription
1 16010MZ8B40 GASKET SET Price: Call Us
2 16011MAW600 VALVE SET, FLOAT Price: Call Us
3 16013MAH000 FLOAT SET Price: Call Us
4 16015MAH750 CHAMBER SET, FLOAT Price: Call Us
5 16016MAH610 SCREW SET Price: Call Us
6 16026MR1004 JOINT SET Price: Call Us
7 16028MAH000 SCREW SET Price: Call Us
8 16029MB0671 SCREW SET C Price: Call Us
9 16037ME5671 PLATE SET, VALVE Price: Call Us
10 16046MAB690 VALVE SET, STARTER Price: Call Us
11 16048MM9621 VALVE SET, AIR CUT Price: Call Us
12 16050KBR000 SPRING, COMPRESSION COIL Price: Call Us
13 16052ME9672 SPRING Price: Call Us
14 16075GHB640 O-RING, 1.3X4.3 Price: Call Us
17 16107MM9621 TOP Price: Call Us
18 16111MF5841 PISTON COMP., VACUUM Price: Call Us
19 16118ME9671 CAP, CABLE SEALING Price: Call Us
20 16131MM9621 NEEDLE COMP., JET (FR.) Price: Call Us
21 16131MAW600 NEEDLE, FR. JET Price: Call Us
22 16163MAH750 GASKET, FLOAT CHAMBER Price: Call Us
23 16165MAV000 HOLDER, NEEDLE JET Price: Call Us
24 16169MM9621 STAY COMP., WIRE Price: Call Us
25 17192MN5000 CLIP, PLATE Price: Call Us
26 93500040101A SCREW, PAN, 4X10 Price: Call Us
27 93500050401H SCREW, PAN, 5X40 Price: Call Us
28 938920400810 SCREW-WASHER, 4X8 Price: Call Us
29 938920401210 SCREW-WASHER, 4X12 Price: Call Us
30 938920401610 SCREW-WASHER, 4X16 Price: Call Us
31 938920501210 SCREW-WASHER, 5X12 Price: Call Us
32 99101GHB1180 JET, MAIN, #118 Price: Call Us
33 99101GHB1150 JET, MAIN, #115 Price: Call Us
