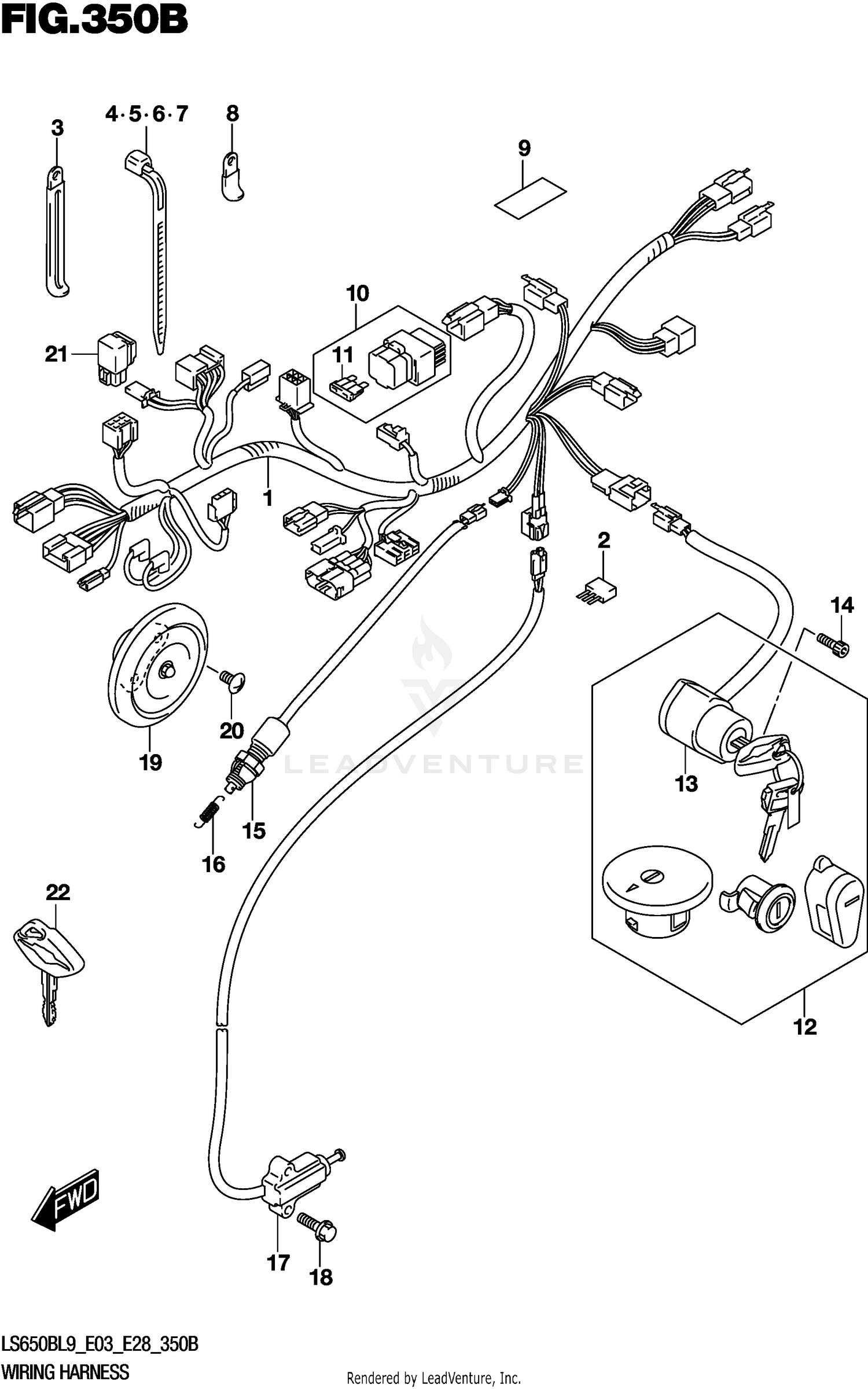

WIRING HARNESS (LS650BL9 E28)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-24BD1 | HARNESS Price: $331.81 |
| 3 | 09404-08422 | CLAMP (L:80) This part replaces 09404-08419. Price: $2.79 |
| 4 | 09407-11401 | CLAMP (L:95) Price: $2.77 |
| 5 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 6 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 7 | 09407-25401 | CLAMP (L:235) Price: $5.68 |
| 8 | 36651-24B10 | CLAMP Price: $2.14 |
| 10 | 36740-24B01 | FUSE ASSY Price: $30.45 |
| 11 | 09481-20101 | FUSE (20A) Price: $2.58 |
| 12 | 37101-24850 | LOCK SET Price: $344.07 |
| 14 | 07130-0516B | BOLT Price: $2.58 |
| 15 | 37740-45D00 | SWITCH ASSY,STOP LAMP Price: $19.73 |
| 16 | 09443-06077 | SPRING Price: $5.89 |
| 17 | 37840-12X52 | SWITCH ASSY,SID This part replaces 37840-12X50. Price: $74.85 |
| 18 | 01550-0620B | BOLT Price: $2.87 |
| 19 | 38500-24B00 | HORN ASSY Price: $95.62 |
| 21 | 38740-24X50 | RELAY ASSY Price: $55.84 |
