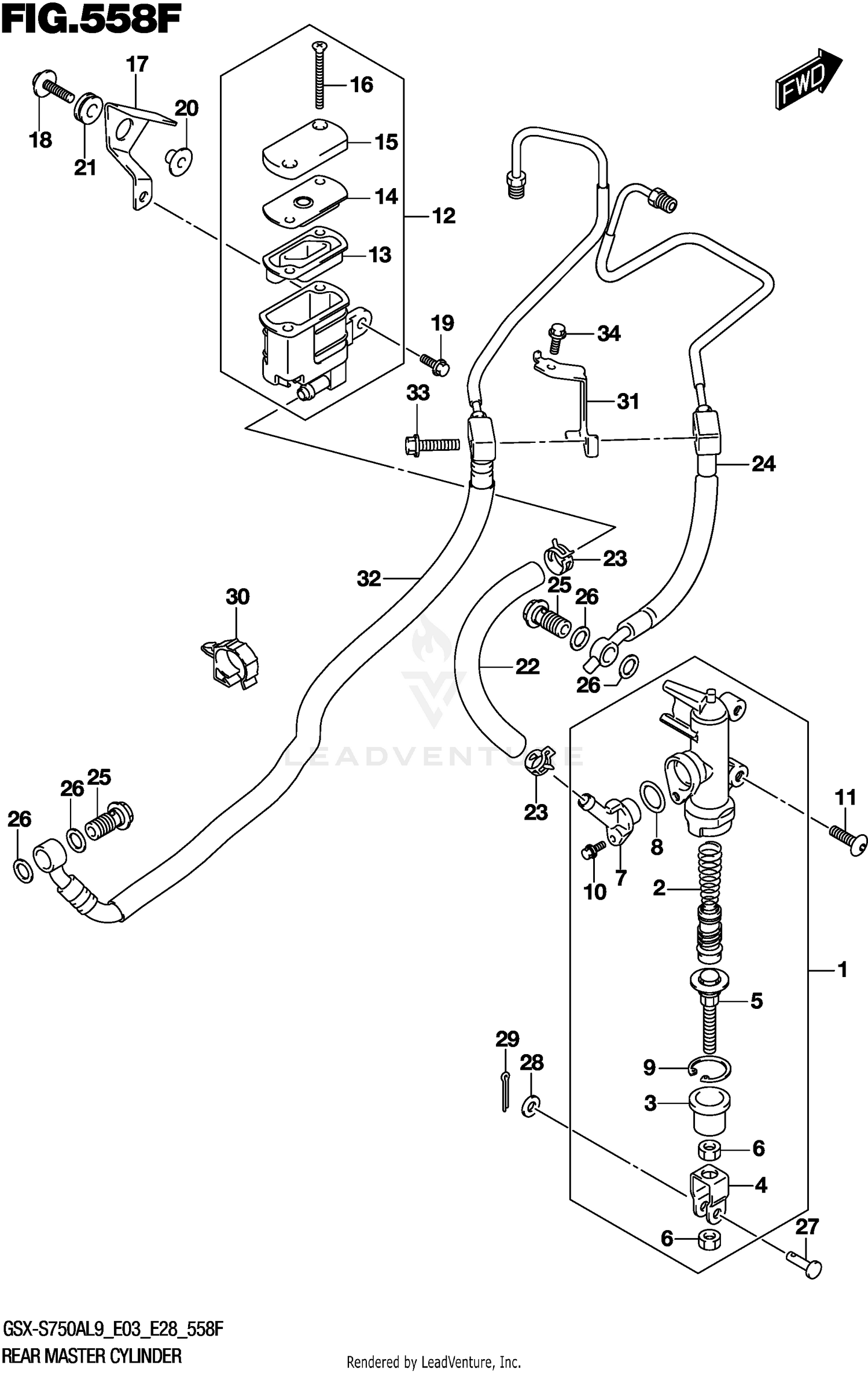

REAR MASTER CYLINDER (GSX-S750ZAL9 E28)
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 69600-08J10 | CYLINDER ASSY,REAR MASTER Price: $161.59 |
| 11 | 09139-06028 | SCREW (6X20) Price: $4.50 |
| 12 | 69740-18K00 | TANK ASSY,RESERVOIR Price: $34.71 |
| 17 | 69750-13K00 | BRACKET, REAR RESERVOIR TANK Price: $9.69 |
| 18 | 09116-06202 | BOLT (6X25) Price: $4.31 |
| 19 | 01547-0612A | BOLT Price: $2.45 |
| 20 | 09180-06325 | SPACER (6.2X8.4X6.9) Price: $4.68 |
| 21 | 09320-08066 | CUSHION (8.4X18X6) Price: $10.04 |
| 22 | 69731-08J00 | HOSE,RR RESERVOIR TANK Price: $20.32 |
| 23 | 09401-12404 | CLIP (ID:12) Price: $2.85 |
| 24 | 69200-13K00 | HOSE, ASSY REAR BRAKE NO.1 Price: $65.16 |
| 25 | 09360-10062 | UNION (10X1.25X22) Price: $7.84 |
| 26 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 27 | 09200-06068 | PIN (6X18.2) Price: $5.01 |
| 28 | 08322-0106A | WASHER Price: $2.22 |
| 29 | 04111-2015A | PIN Price: $1.48 |
| 30 | 09403-17306 | CLAMP Price: $3.20 |
| 31 | 69260-08J10 | CLAMP, REAR BRAKE HOSE Price: $8.70 |
| 32 | 69400-13K00 | HOSE ASSY, REAR BRAKE NO.2 Price: $69.91 |
| 33 | 01547-0635A | BOLT Price: $2.79 |
