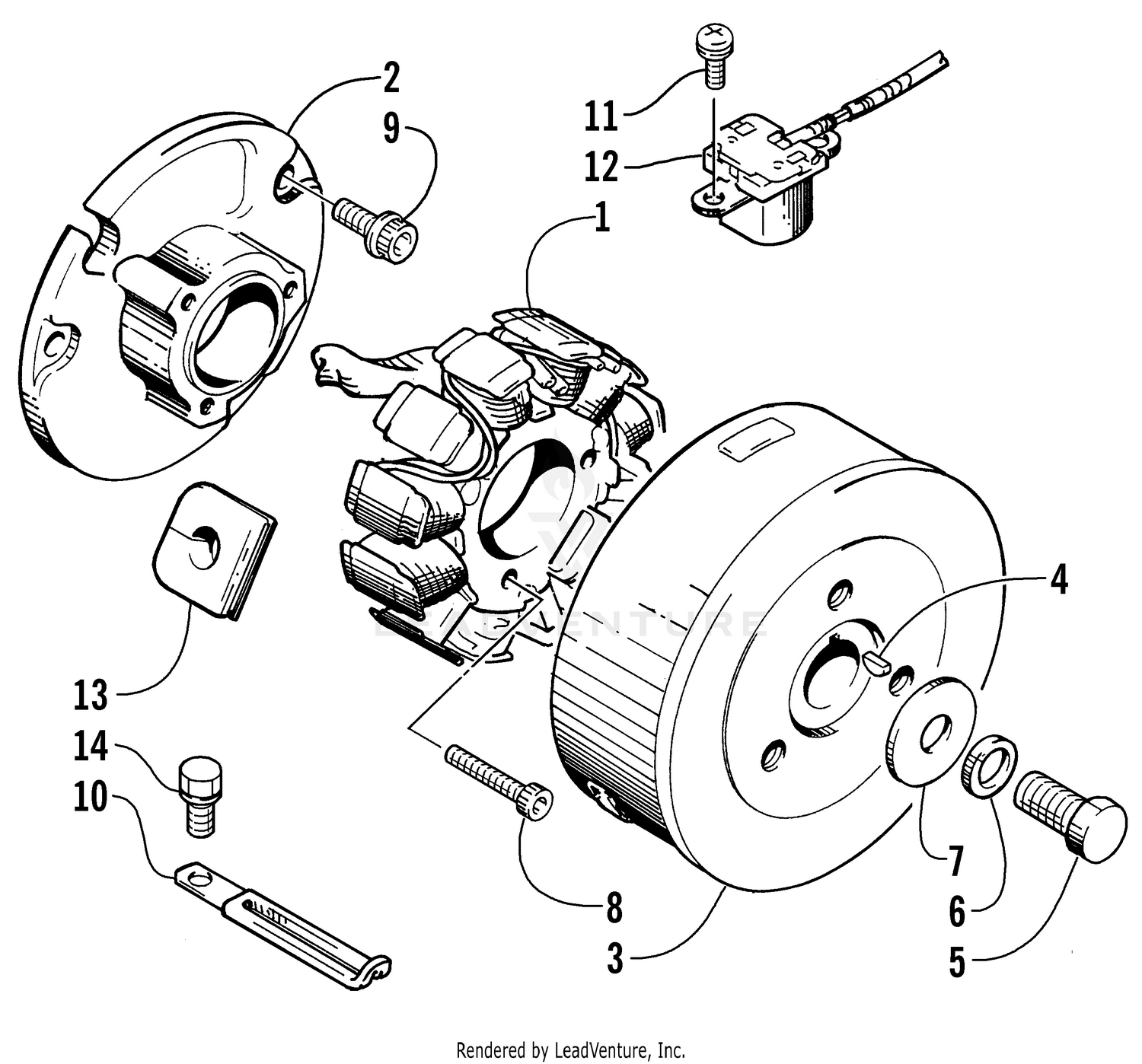

MAGNETO [67464]
![MAGNETO [67464]](https://cdn.datamanager.arinet.com/image/ARCT/3a03cbe9-6661-49aa-b94d-bbb8e8e01975/Max)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3005-251 | Stator Price: $852.95 |
| 2 | 3005-252 | BASE, STATOR Price: $90.95 |
| 3 | 3005-227 | Flywheel Price: $813.95 |
| 4 | 3010-070 | Key Price: $3.73 |
| 5 | 3004-510 | Bolt Price: $2.46 |
| 6 | 3007-424 | Lock Washer Price: $4.26 |
| 7 | 3008-016 | Washer Price: $4.26 |
| 8 | 3007-685 | Bolt Price: $3.81 |
| 9 | 3007-449 | Bolt Price: $3.13 |
| 10 | 1623-984 | Clamp, Routing Price: $7.08 |
| 11 | 3007-553 | Screw Price: $2.24 |
| 12 | 3004-073 | Sensor, Ignition Timing Price: $218.95 |
| 13 | 3008-034 | Grommet, Magneto Lead Wire Price: $20.16 |
