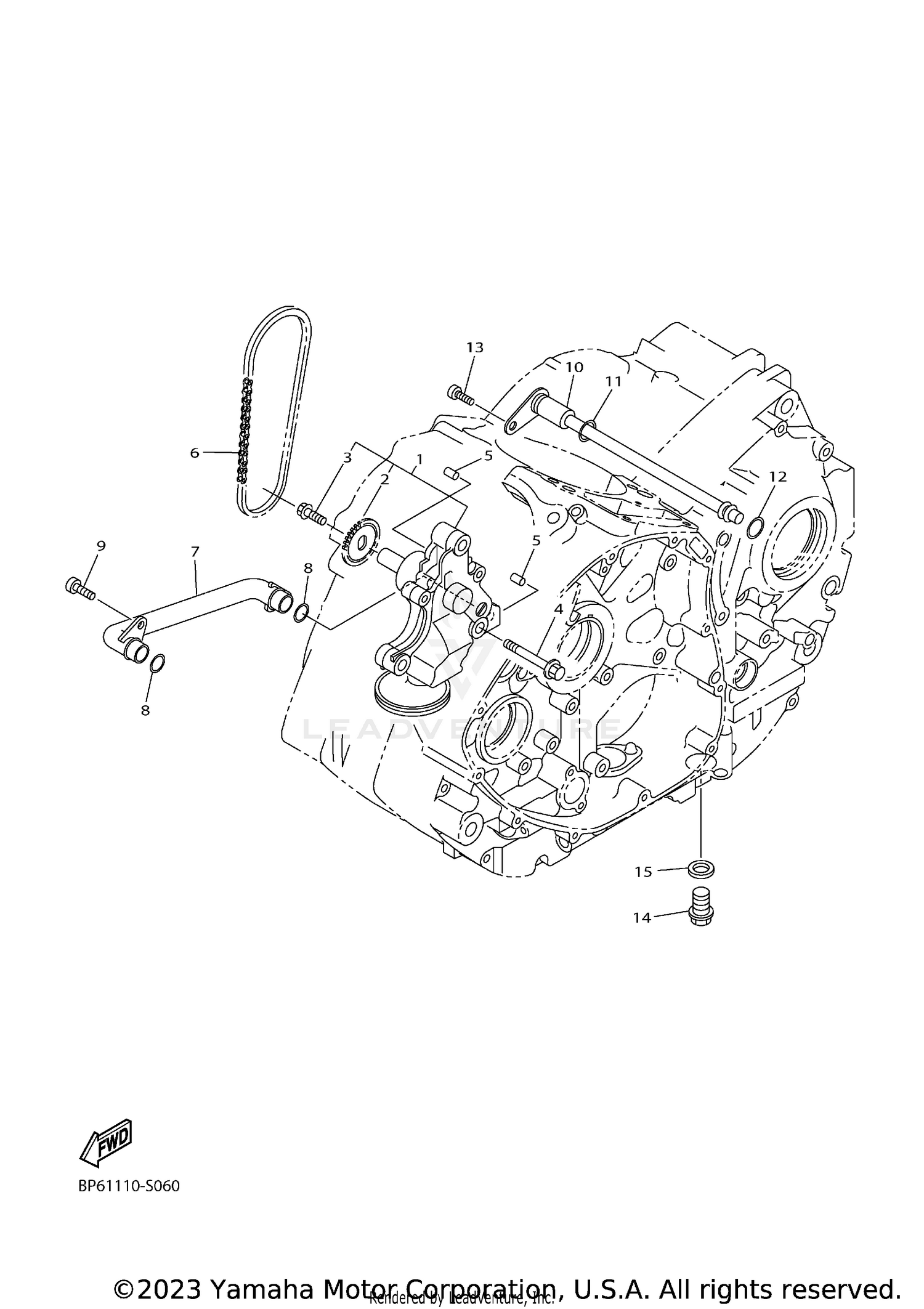

OIL PUMP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5S7-13300-00-00 | OIL PUMP ASSY Price: $241.99 |
| 2 | 3D8-13355-00-00 | SPROCKET, DRIVEN Price: $22.99 |
| 3 | 90105-06066-00 | BOLT, FLANGE Price: $9.49 |
| 4 | 95814-08045-00 | BOLT, FLANGE This part replaces 95812-08045-00. Price: $4.75 |
| 5 | 99530-08012-00 | PIN, DOWEL Price: $6.60 |
| 6 | 94580-25062-00 | CHAIN (DID25 62L) Price: $12.49 |
| 7 | 3D8-13416-00-00 | PIPE, OIL 1 Price: $48.99 |
| 8 | 93210-14003-00 | O-RING Price: $9.49 |
| 9 | 91317-06016-00 | BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
| 10 | BL3-13171-00-00 | PIPE, DELIVERY 2 Price: $67.99 |
| 11 | 93210-09350-00 | O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 12 | 93210-06714-00 | O-RING Price: $6.49 |
| 13 | 91317-06016-00 | BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
| 14 | 90340-14132-00 | PLUG, STRAIGHT SCREW Price: $3.15 |
