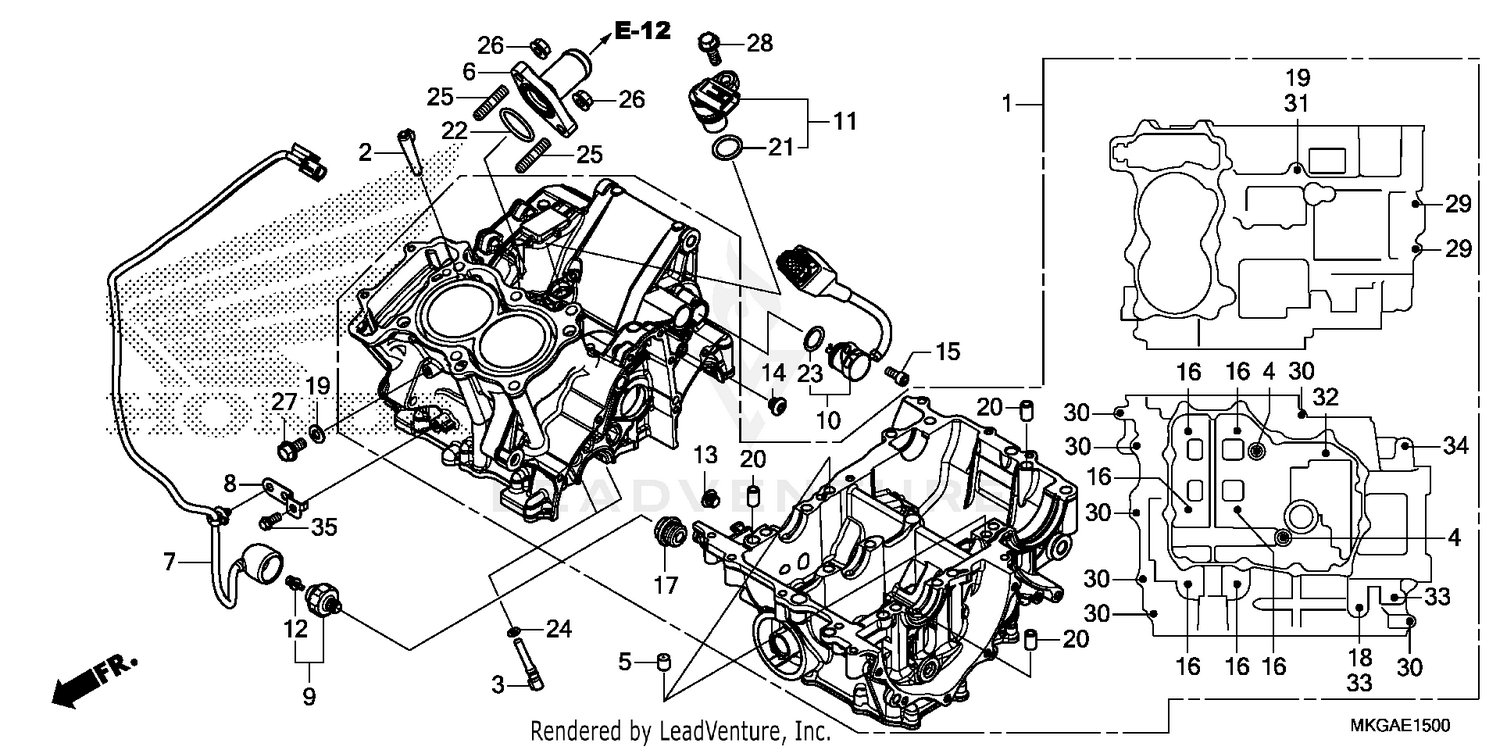

| Ref | Part Number | Description |
|---|
| 1 |
11000-MKP-D00 |
CRANKCASE SET Price: $2,128.16 |
| 2 |
11103-MGZ-J00 |
PIN, PARTITION Price: $4.47 |
| 3 |
11140-MGZ-J00 |
JET, OIL Price: $21.18 |
| 4 |
12207-KYJ-900 |
BOLT, SEALING (12MM) Price: $1.69 |
| 5 |
15515-MGZ-J00 |
ORIFICE A (1.0MM) Price: $1.04 |
| 6 |
19060-MGZ-J00 |
JOINT, WATER Price: $26.02 |
| 7 |
32102-MKG-A30 |
SUB-HARNESS, OIL PRESSURE Price: $6.84 |
| 8 |
32157-MGZ-J00 |
STAY, HARNESS CLIP Price: $1.65 |
| 9 |
35500-MEH-661 |
SWITCH ASSY., OIL PRESSURE (DENSO) Price: $55.84 |
| 10 |
35759-MKG-A31 |
SWITCH ASSY., CHANGE Price: $93.93 |
| 11 |
37700-MJE-D01 |
SENSOR ASSY., SPEED (TDK-EPC) Price: $29.33 |
| 12 |
90002-PA6-003 |
BOLT-WASHER (4X8) (DENSO) Price: $6.13 |
| 13 |
90005-MAZ-000 |
BOLT, SOCKET (10MM) Price: $2.58 |
| 14 |
90009-MGZ-J00 |
BOLT, SOCKET (10MM) Price: $4.49 |
| 15 |
90011-MGP-000 |
BOLT, SOCKET KNOCK (6MM) Price: $8.11 |
| 16 |
90015-MGZ-J01 |
BOLT, UBS (8X105) Price: $8.33 |
| 17 |
90048-MY5-600 |
BOLT, SEALING (18MM) Price: $15.78 |
| 18 |
90442-028-000 |
WASHER, SEALING (8MM) Price: $2.02 |
| 19 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 20 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 21 |
91303-KF0-003 |
O-RING (14.8X2.4) (ARAI) Price: $2.02 |
| 22 |
91304-MCP-900 |
O-RING (23X2.4) Price: $3.29 |
| 23 |
91305-KC1-850 |
O-RING (16.5X2.5) Price: $2.24 |
| 24 |
91305-MCJ-751 |
O-RING (3.2X1.1) Price: $2.27 |
| 25 |
92900-06016-0E |
BOLT, STUD (6X16) Price: $2.15 |
| 26 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 27 |
95701-06012-00 |
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12) Price: $1.70 |
| 28 |
95701-06018-00 |
BOLT, FLANGE (6X18) BOLT, HEX. (6X18) Price: $1.70 |
| 29 |
95701-06035-00 |
BOLT, FLANGE (6X35) Price: $1.97 |
| 30 |
95701-06040-08 |
BOLT, FLANGE (6X40) Price: $1.91 |
| 31 |
95701-06095-00 |
BOLT, FLANGE (6X95) Price: $2.31 |
| 32 |
95701-08055-00 |
BOLT, FLANGE (8X55) Price: $2.57 |
| 33 |
95701-08075-00 |
BOLT, FLANGE (8X75) Price: $3.02 |
| 34 |
95701-10075-00 |
BOLT, FLANGE (10X75) Price: $2.78 |
