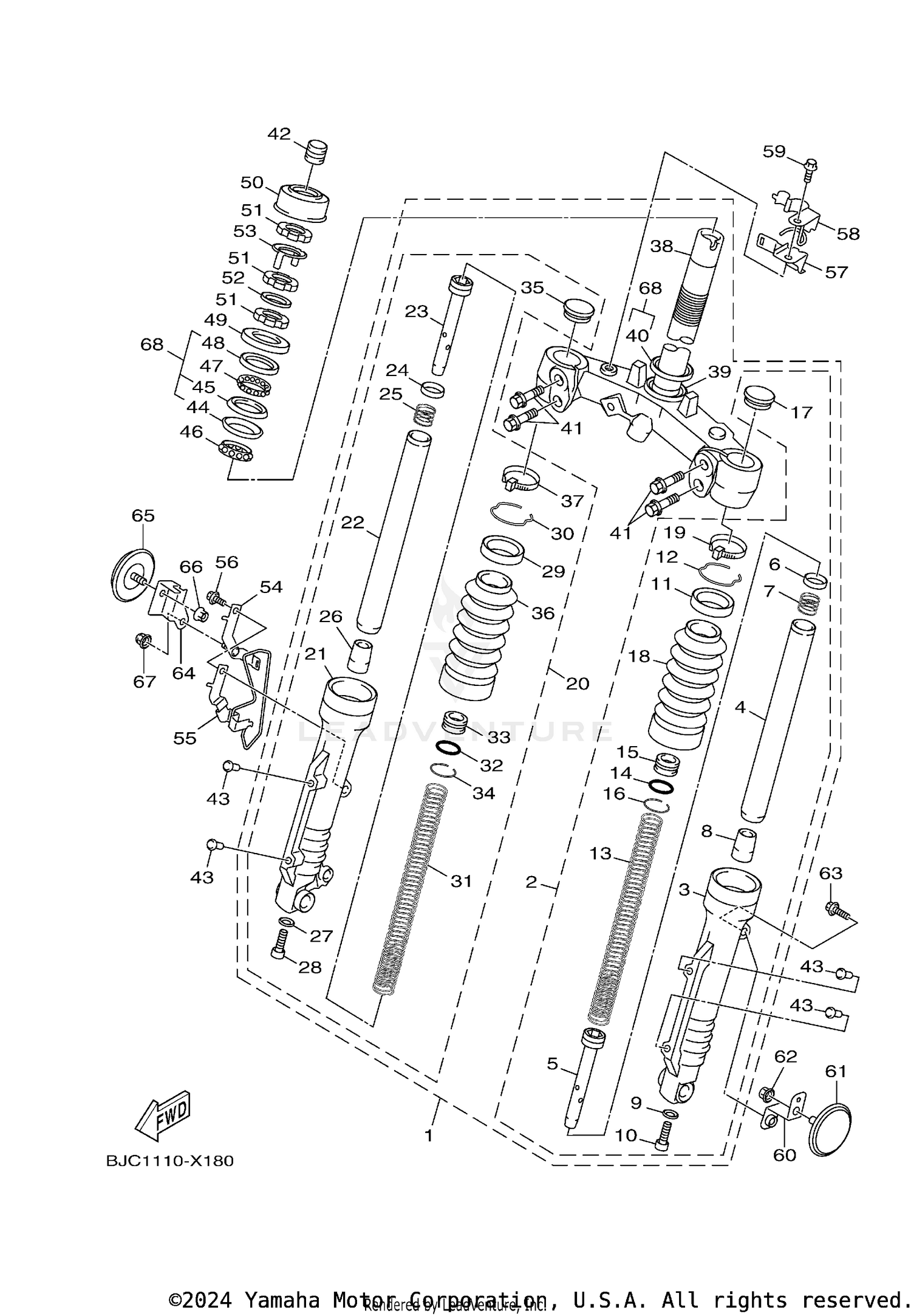

| Ref | Part Number | Description |
|---|
| 1 |
BBJ-F3100-20-00 |
FRONT FORK ASSY Price: $415.99 |
| 2 |
BBJ-F3102-20-00 |
FRONT FORK ASSY (L.H) Price: $158.99 |
| 3 |
BBJ-F3126-20-00 |
TUBE, OUTER (L.H) Price: $102.99 |
| 7 |
4C6-F3151-00-00 |
SPRING, REBOUND Price: $1.30 |
| 17 |
4P9-F3154-00-00 |
CAP Price: $1.15 |
| 18 |
2JS-F3191-00-00 |
BOOT Price: $13.49 |
| 19 |
4C6-F3192-00-00 |
BAND Price: $1.15 |
| 20 |
BBJ-F3103-20-00 |
FRONT FORK ASSY (R.H) Price: $165.99 |
| 21 |
BBJ-F3136-20-00 |
TUBE, OUTER 2 Price: $105.99 |
| 25 |
4C6-F3151-00-00 |
SPRING, REBOUND Price: $1.30 |
| 35 |
4P9-F3154-00-00 |
CAP Price: $1.15 |
| 36 |
2JS-F3191-00-00 |
BOOT Price: $13.49 |
| 37 |
4C6-F3192-00-00 |
BAND Price: $1.15 |
| 39 |
3KW-F3462-00-00 |
SEAL, DUST Price: $2.35 |
| 40 |
4FP-F3411-10-00 |
RACE, BALL 1 Price: $26.99 |
| 42 |
10B-F312G-00-00 |
PLUG, HOLE Price: $0.80 |
| 43 |
BBJ-F312G-10-00 |
PLUG, HOLE This part replaces BBJ-F312G-00-00. Price: $0.45 |
| 44 |
1KL-F3412-10-00 |
RACE, BALL 2 Price: $2.95 |
| 45 |
4RT-F3412-10-00 |
RACE, BALL 2 Price: $10.99 |
| 46 |
5VL-F341E-10-00 |
RETAINER, BALL BEARING Price: $5.99 |
| 47 |
1P6-F341E-10-00 |
RETAINER, BALL BEA Price: $4.55 |
| 48 |
4RT-F3411-10-00 |
RACE, BALL 1 Price: $3.10 |
| 49 |
4C6-F3416-00-00 |
COVER, BALL RACE 2 Price: $2.80 |
| 50 |
41D-F3415-00-00 |
COVER, BALL RACE 1 Price: $2.25 |
| 51 |
90179-25811-00 |
NUT Price: $6.49 |
| 52 |
90202-26142-00 |
WASHER, PLATE Price: $10.49 |
| 53 |
1SK-F3418-00-00 |
WASHER, SPECIAL Price: $2.35 |
| 54 |
BBJ-F5876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $4.55 |
| 55 |
BBJ-F5876-10-00 |
HOLDER, BRAKE HOSE 2 Price: $7.49 |
| 56 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95807-06012-00. Price: $1.95 |
| 57 |
BBJ-F5887-00-00 |
HOLDER, BRAKE HOSE 3 Price: $2.15 |
| 58 |
BBJ-F5887-10-00 |
HOLDER, BRAKE HOSE 3 Price: $5.99 |
| 59 |
95D02-06012-00 |
BOLT, FLANGE DEEP Price: $0.50 |
| 60 |
BBJ-H5112-00-00 |
BRACKET, REFLECTOR 1 Price: $4.65 |
| 61 |
1CH-H5131-01-00 |
REFLECTOR, REAR 1 Price: $6.49 |
| 62 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 63 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95807-06020-00. Price: $3.50 |
| 64 |
BBJ-H5122-00-00 |
BRACKET, REFLECTOR 2 Price: $3.85 |
| 65 |
1CH-H5131-01-00 |
REFLECTOR, REAR 1 Price: $6.49 |
| 66 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 67 |
90176-06055-00 |
NUT, CROWN Price: $6.49 |
