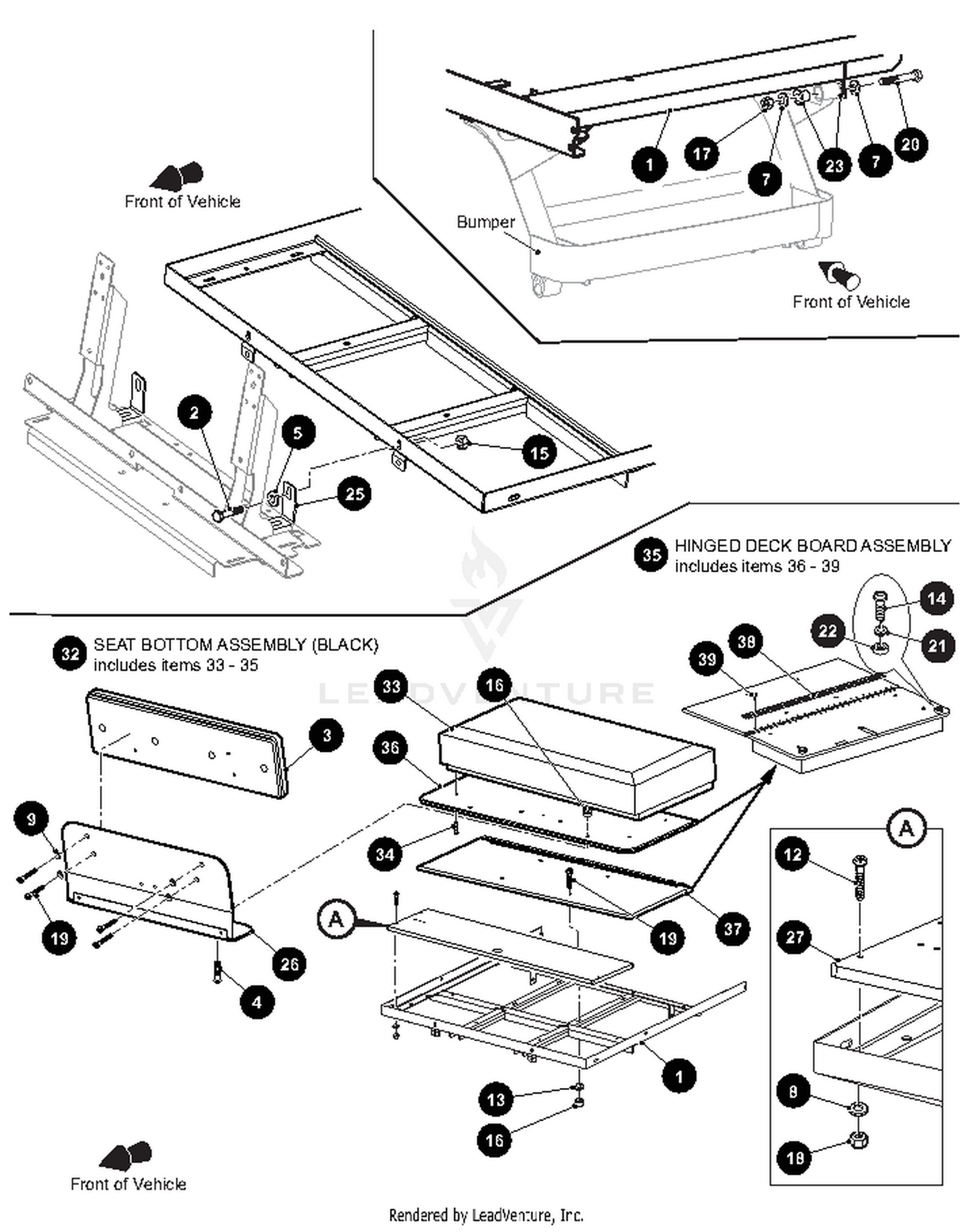

| Ref | Part Number | Description |
|---|
| 1 |
640259 |
SEAT FRAME Price: $470.99 |
| 2 |
00427G2 |
HEX HEAD BOLT, 3/8-16 X 1 1/4 Price: $3.99 |
| 3 |
71274G02 |
SEAT BACK ASSY, BLACK Price: $207.99 |
| 4 |
16705G1 |
TRUSS HEAD SCREW, 1/4-20X1 Price: $2.99 |
| 7 |
00560G3 |
FLAT WASHER, 1/2 Price: $0.99 |
| 8 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 9 |
00664G7 |
LOCK WASHER, 0.255" X 0.263" Price: $0.99 |
| 12 |
00789G2 |
TRUSS HEAD PHILLIPS SCREW, #10-24X1 1/4 Price: $0.99 |
| 13 |
01110G01 |
FLAT WASHER, 1/4" Price: $0.99 |
| 14 |
800344 |
TRUSS HEAD PHILLIPS SCREW, #10-16 x 5/8 Price: $1.99 |
| 16 |
14390G4 |
LOCK NUT,1/4"-20 Price: $1.99 |
| 17 |
14390G6 |
LOCK NUT, 1/2-13 Price: $2.99 |
| 18 |
14390G10 |
LOCK NUT, #10-24 Price: $1.99 |
| 19 |
16705G9 |
TRUSS HEAD PHILLIPS SCREW,1/4-20X1 1/4 Price: $0.99 |
| 20 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 21 |
616671 |
FLAT WASHER, 15.8 X 8.5 X 1.5 Price: $1.99 |
| 22 |
619756 |
RUBBER BUMPER Price: $4.99 |
| 23 |
624030 |
FLANGED BUSHING, IGUS Price: $1.99 |
| 25 |
627797 |
SEAT FRAME BRACKET Price: $13.84 |
| 26 |
627804 |
SEAT BACK SUPPORT Price: $233.54 |
| 27 |
627809 |
BOARD,FILLER,DECK,REAR Price: $153.49 |
| 31 |
605834 |
NYLON CLAMP,36" Price: $5.99 |
| 32 |
629654 |
SEAT BOT ASSY,BLK,ECON,AMBUSH Price: $521.72 |
| 33 |
632837G06 |
SEAT BOTTOM,BLACK-ASSEMBLY This part replaces 621036. Price: $183.03 |
| 34 |
16705G1 |
TRUSS HEAD SCREW, 1/4-20X1 Price: $2.99 |
| 35 |
627157 |
DECK BOARD ASSY,HINGED Price: $423.55 |
| 36 |
627156 |
DECK BOARD,HINGED-SVC Not Available Price: |
| 37 |
617133 |
DECK BD,SEAT BOT,ECON-SVC Price: $175.81 |
| 38 |
617134 |
HINGE,SEAT,ECON-SVC Price: $13.24 |
