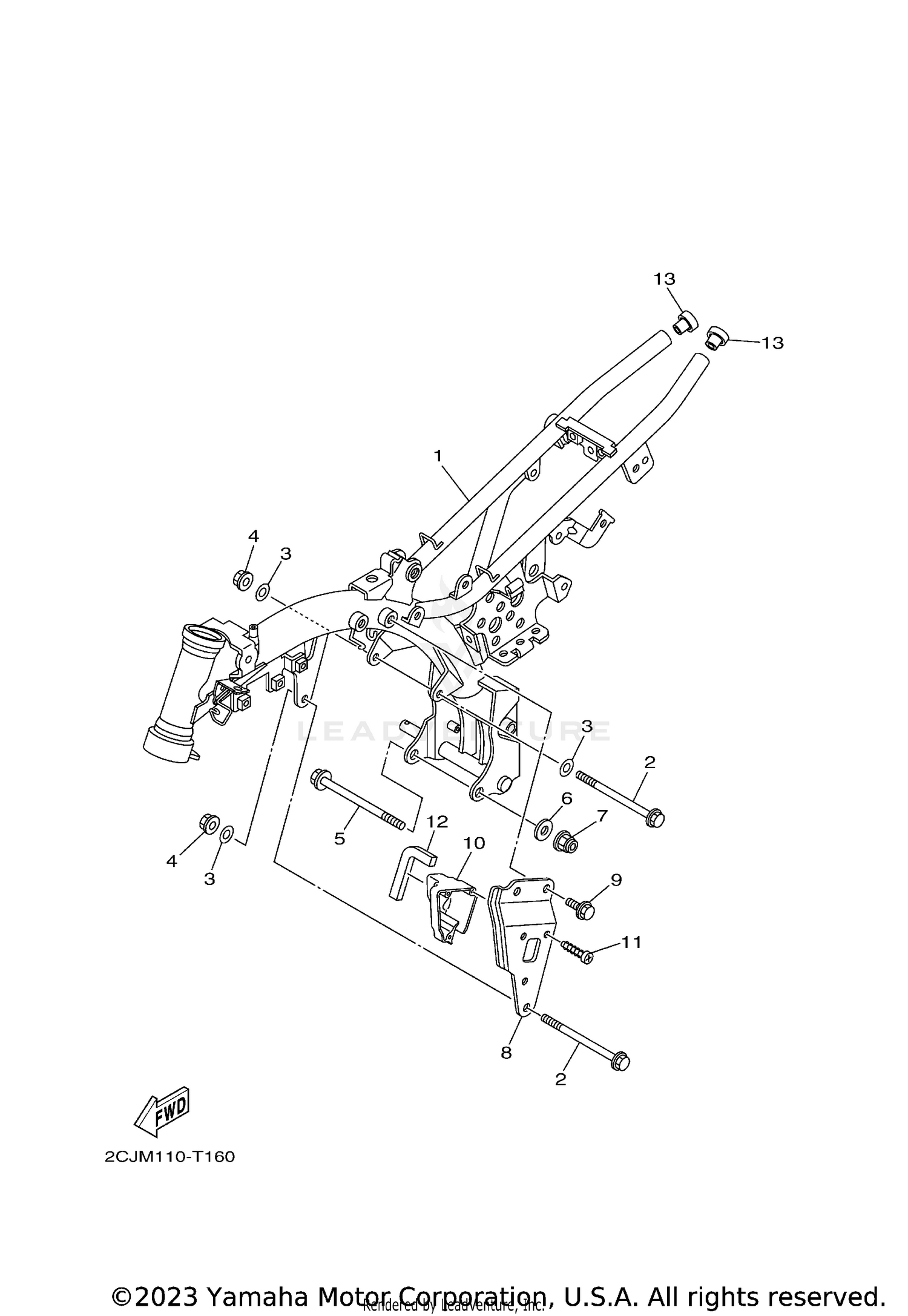

FRAME
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 90105-08097-00 | BOLT, FLANGE Price: $5.49 |
| 3 | 92907-08200-00 | WASHER Price: $9.49 |
| 4 | 95602-08200-00 | NUT, SELF-LOCKING Price: $3.20 |
| 5 | 90105-10123-00 | BOLT, FLANGE Price: $5.99 |
| 6 | 92907-10200-00 | WASHER, PLAIN Price: $5.49 |
| 7 | 95602-10200-00 | NUT, S/L FLANGE Price: $2.70 |
| 8 | 1P6-F1387-10-00 | STAY, ENGINE 7 Price: $17.99 |
| 9 | 95817-08016-00 | BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 10 | 1P6-F117F-10-00 | COVER Price: $8.49 |
| 11 | 97707-50516-00 | SCREW, TAPPING Price: $0.80 |
| 12 | 90520-20807-00 | DAMPER, PLATE Price: $8.49 |
