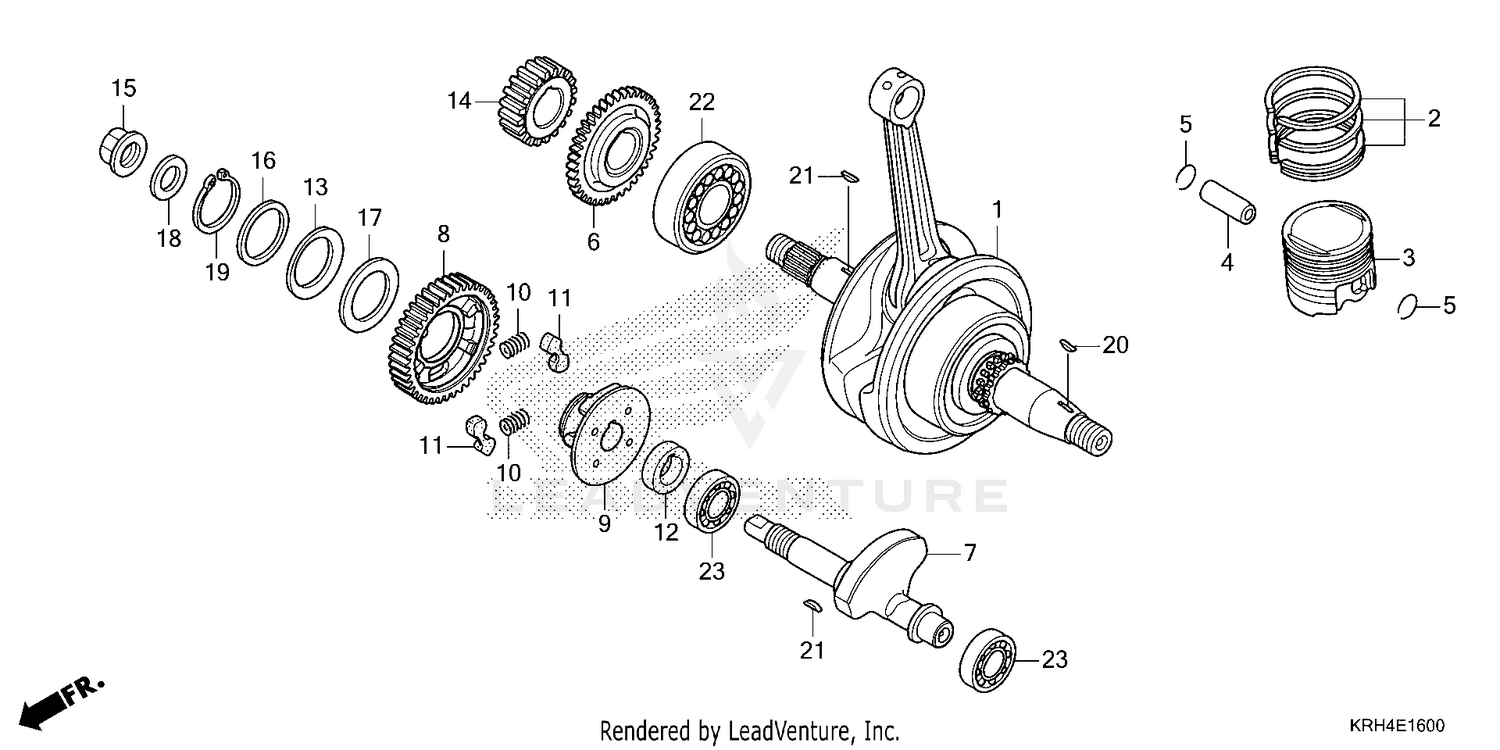

| Ref | Part Number | Description |
|---|
| 1 |
13000-KTT-C00 |
CRANKSHAFT Price: $409.24 |
| 2 |
13011-KRM-305 |
RING SET, PISTON (STD) (RIKEN) Price: $55.62 |
| 3 |
13101-KRM-930 |
PISTON (STD) Price: $45.16 |
| 4 |
13111-KTT-900 |
PIN, PISTON (NOT AVAILABLE) Price: $10.74 |
| 5 |
13112-KRM-840 |
CLIP, PISTON PIN (14MM) Price: $0.84 |
| 6 |
13411-KTT-900 |
GEAR (41T) Price: $82.64 |
| 7 |
13421-KRM-840 |
SHAFT, BALANCER Price: $117.67 |
| 8 |
13422-KTT-900 |
GEAR (41T) Price: $69.60 |
| 9 |
13426-KTT-900 |
BUSH Price: $30.53 |
| 10 |
13427-KTT-900 |
SPRING, DAMPER Price: $5.05 |
| 11 |
13428-KRM-840 |
RUBBER, DAMPER Price: $0.55 |
| 12 |
13429-KTT-900 |
COLLAR Price: $5.13 |
| 13 |
13538-KTT-900 |
SPRING, THRUST Price: $5.45 |
| 14 |
23121-KTT-900 |
GEAR, PRIMARY DRIVE (20T) Price: $55.83 |
| 15 |
90201-KRM-840 |
NUT, FLANGE (14MM) Price: $1.76 |
| 16 |
90402-KTT-900 |
WASHER (28.1X36X1.8) Price: $3.62 |
| 17 |
90403-KTT-900 |
WASHER (28.1X45X1.4) Price: $4.00 |
| 18 |
90501-KPT-A00 |
WASHER (14.1X29X2.8) Price: $3.49 |
| 19 |
90604-KTT-900 |
CIRCLIP (OUTER) (28) Price: $3.27 |
| 20 |
90741-KFB-000 |
KEY, WOODRUFF (4MM) Price: $3.67 |
| 21 |
90741-KGH-900 |
KEY, WOODRUFF (4MM) Price: $2.58 |
| 22 |
91001-KRM-842 |
BEARING, ROLLER (30X58X17) (NTN) Price: $65.25 |
| 22 |
91001-KSP-913 |
BEARING (30X58X17) Price: $20.89 |
