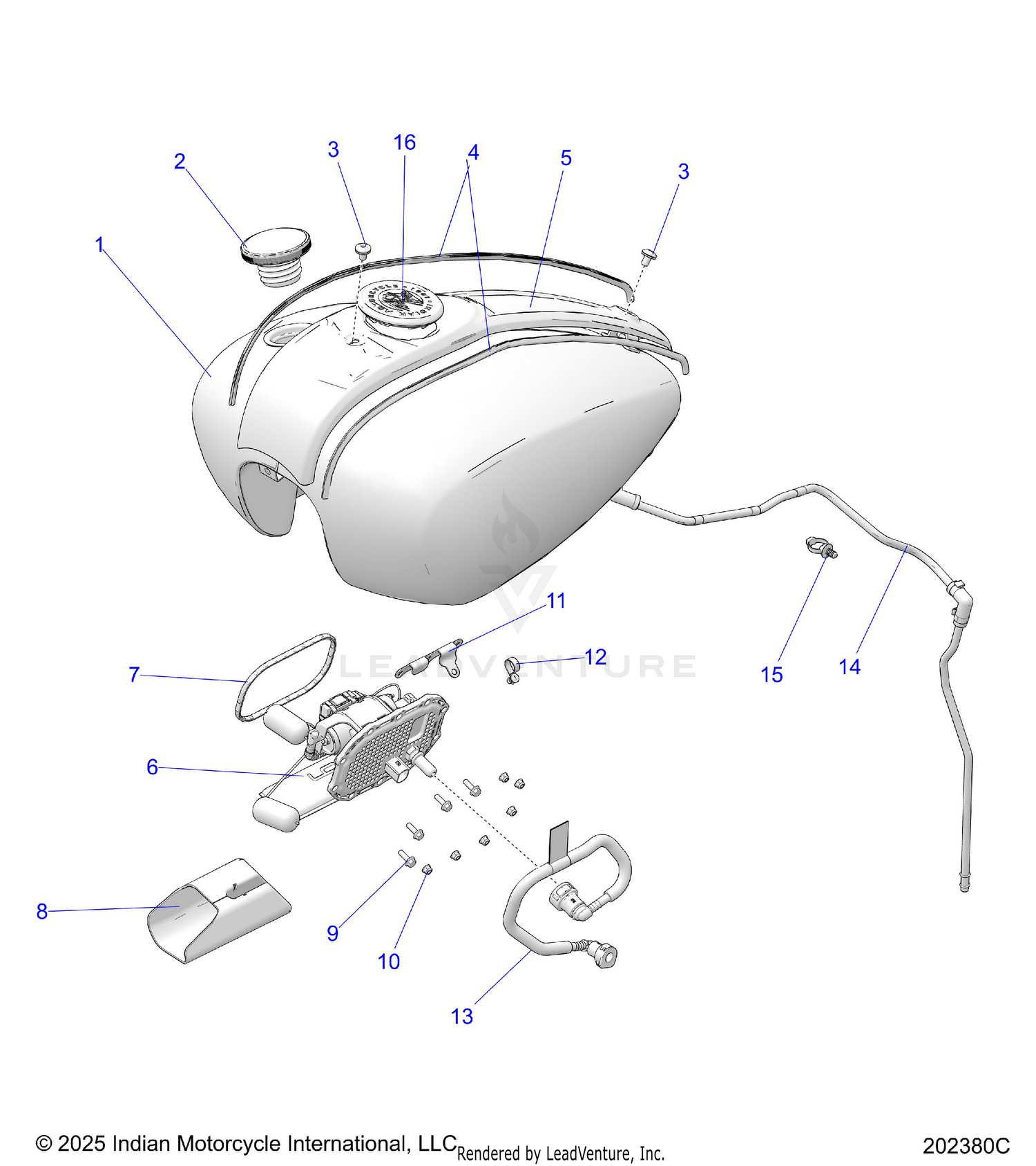

| Ref | Part Number | Description |
|---|
| 2 |
2522214-266 |
CAP, FUEL, BLK Price: $129.99 |
| 3 |
7527851 |
SCR-HXBH-M6X1.0X12-W/WASHER Price: $5.99 |
| 4 |
8360229 |
TRIM-EDGE,CONSOLE,665MM Price: $14.99 |
| 5 |
5270419-266 |
CONSOLE-TANK,STAMP,GPS,BLK Price: $254.99 |
| 6 |
2522501 |
PUMP-FUEL,CSR Price: $349.99 |
| 6 |
2522516 |
FILTER-FUEL,CSR,SVC Price: $59.99 |
| 6 |
7080138H |
CABLE-TIE,DIA12-50MM,WTHR-RES. Price: $2.99 |
| 7 |
5414830H |
SEAL, FUEL, PFA Price: $44.99 |
| 8 |
5417716 |
BAFFLE-PICKUP,FUEL Price: $49.99 |
| 9 |
7521169 |
SCREW-HXFL-M5X0.80X16 8.8 ZY3 Price: $3.99 |
| 10 |
7547829H |
NUT-HXFL-M5X0.8 8 ZPC NYL Price: $3.99 |
| 11 |
5269412-329 |
BRKT-RETENTION,FUEL LINE,ECOAT Price: $34.99 |
| 12 |
7081461 |
Strap, Retainer, Dart Price: $4.99 |
| 13 |
8450286 |
LINE-FUEL,CSR Price: $129.99 |
| 15 |
7081496H |
CLIP FIR-TREE,DIA6-33MM Price: $5.99 |
