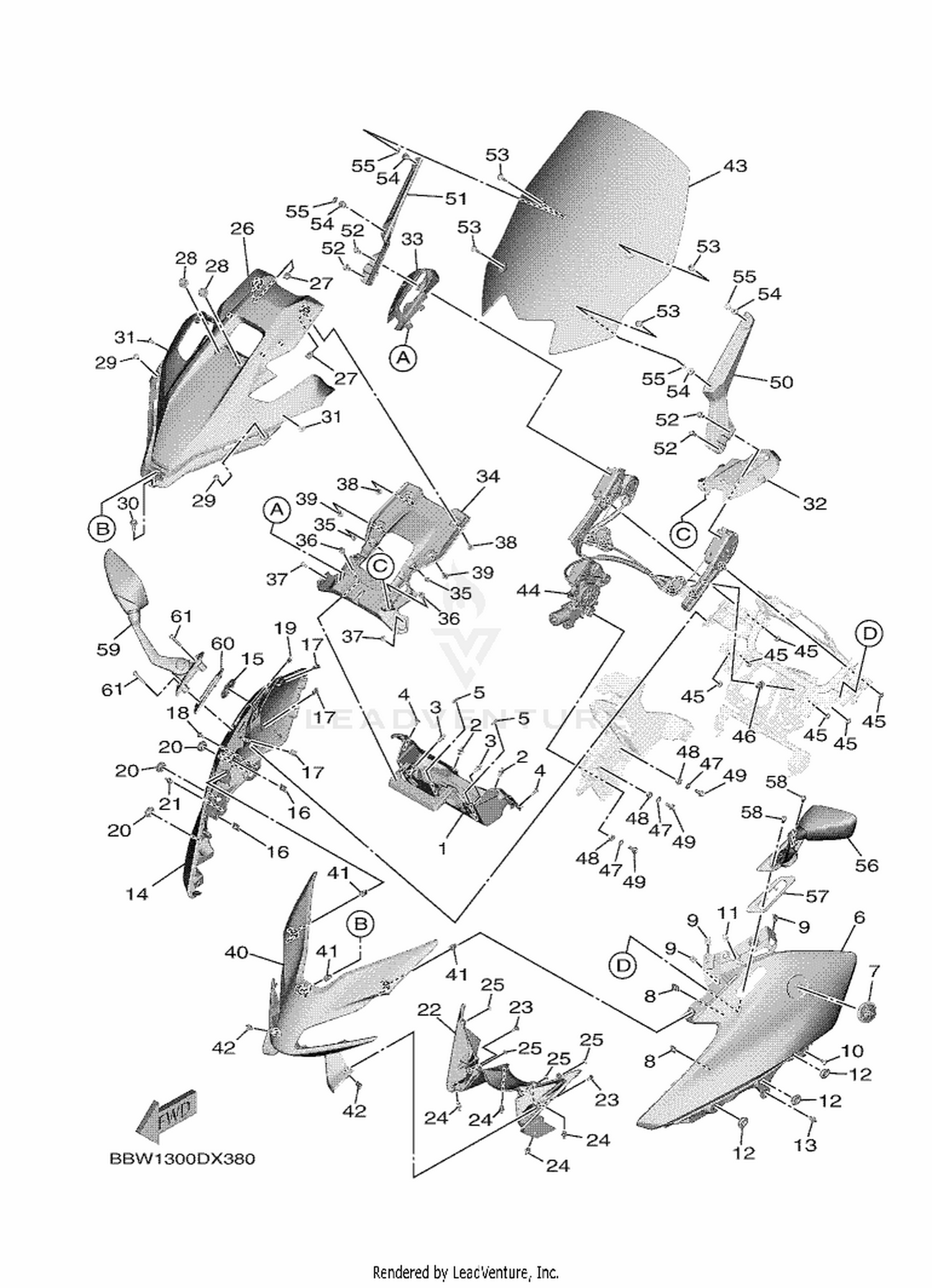

| Ref | Part Number | Description |
|---|
| 1 |
BBW-2836K-00 |
PANEL, INNER 1 Price: Call Us |
| 2 |
90269-06008 |
RIVET Price: Call Us |
| 3 |
90269-07014 |
RIVET Price: Call Us |
| 4 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 5 |
1HX-27415-00 |
PLATE, DAMPER Price: Call Us |
| 7 |
1RC-2413B-01 |
EMBLEM Price: Call Us |
| 8 |
90183-060A6 |
NUT, SPRING Price: Call Us |
| 9 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 10 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 11 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 12 |
90480-01559 |
GROMMET Price: Call Us |
| 13 |
90269-06008 |
RIVET Price: Call Us |
| 15 |
1RC-2413B-01 |
EMBLEM Price: Call Us |
| 16 |
90183-060A6 |
NUT, SPRING Price: Call Us |
| 17 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 18 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 19 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 20 |
90480-01559 |
GROMMET Price: Call Us |
| 21 |
90269-06008 |
RIVET Price: Call Us |
| 22 |
BBW-22863-00 |
COVER, UNDER Price: Call Us |
| 23 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 24 |
90269-06008 |
RIVET Price: Call Us |
| 25 |
90183-05M02 |
NUT, SPRING Price: Call Us |
| 26 |
BBW-2836L-00 |
PANEL, INNER 2 Price: Call Us |
| 27 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 28 |
90269-08005 |
RIVET Price: Call Us |
| 29 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 30 |
90110-06437 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 31 |
B7M-28331-00 |
BOLT, LEG SHIELD Price: Call Us |
| 32 |
BBW-21521-00 |
FLAP, FRONT FENDER Price: Call Us |
| 33 |
BBW-21561-00 |
FLAP 2 Price: Call Us |
| 34 |
BBW-83559-00 |
COVER, METER Price: Call Us |
| 35 |
90338-06018 |
PLUG Price: Call Us |
| 36 |
90269-06008 |
RIVET Price: Call Us |
| 37 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 38 |
90111-05002 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 39 |
90269-06019 |
RIVET Price: Call Us |
| 41 |
90464-07018 |
CLAMP Price: Call Us |
| 42 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 43 |
BBW-2837U-00 |
SCREEN Price: Call Us |
| 44 |
BBW-83306-00 |
DRIVE UNIT ASSY Price: Call Us |
| 45 |
95702-06500 |
NUT, WITH WASHER Price: Call Us |
| 46 |
90464-12001 |
CLAMP Price: Call Us |
| 47 |
90201-06032 |
WASHER, PLATE Price: Call Us |
| 48 |
90387-07006 |
COLLAR Price: Call Us |
| 49 |
95D37-06016 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 50 |
BBW-2833C-00 |
LINK 1 Price: Call Us |
| 51 |
BBW-2833D-00 |
LINK 2 Price: Call Us |
| 52 |
95D32-06014 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 53 |
90111-05065 |
BOLT, HEXAGON SOCKET BUTTON Price: Call Us |
| 54 |
90179-05003 |
NUT Price: Call Us |
| 56 |
BBW-26280-00 |
REAR VIEW MIRROR ASSY (LEFT) Price: Call Us |
| 57 |
BBW-2628N-00 |
BASE, MIRROR (LEFT) Price: Call Us |
| 58 |
92014-06030 |
BOLT, BUTTON HEAD Price: Call Us |
| 59 |
BBW-26290-00 |
REAR VIEW MIRROR ASSY (RIGHT) Price: Call Us |
| 60 |
BBW-2628R-00 |
BASE, MIRROR (RIGHT) Price: Call Us |
