Home / POWERSPORTS / SNOWMOBILE / 2015 / 2015 BEARCAT 5000 XT INTERNATIONAL BLUE [S2015BCNWTOSL] / HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY [101645]

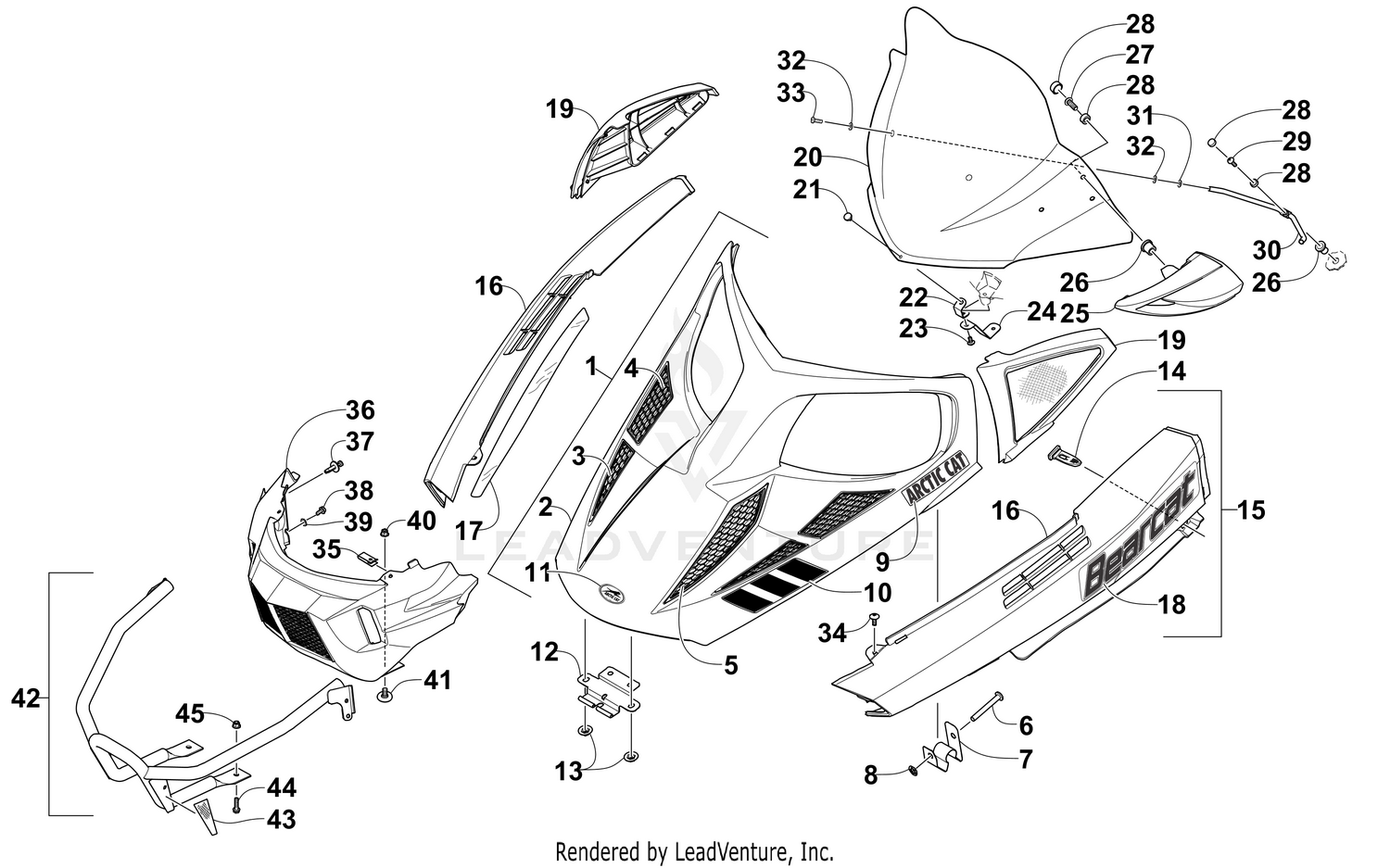

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY [101645]

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY [101645]

Parts (47)

RefPart NumberDescription
3 4606-624 Vent, Hood - Outer Front - Right - Black Price: $21.77
3 4606-625 Vent, Hood - Outer Front - Left - Black Price: $1.79
4 4606-640 Vent, Hood - Outer Rear - Right - Black Price: $21.77
4 4606-641 Vent, Hood - Outer Rear - Left - Black Price: $21.77
5 4606-614 Vent, Hood Lid - Inner - Right Hand - Mold (Black) Price: $25.78
5 4606-615 Vent, Hood Lid - Inner - Left Hand - Mold (Black) Price: $27.95
6 1623-610 Pin, Retaining Price: $26.95
7 5706-084 Clip, Hood Hold-Down - Right Price: $18.13
7 5706-085 Clip, Hood Hold-Down - Left Price: $18.13
8 1623-409 Retainer, Pushnut Price: $0.19
9 0621-572 Decal, "Arctic Cat" Price: $0.28
10 1621-246 Decal, Hood - Right Price: $5.61
10 1621-247 Decal, Hood - Left Price: $4.18
11 9611-751 Decal, "Arctic Cat" Price: $39.14
12 6606-027 Bracket, Hinge Price: $24.20
13 1623-469 Nut, Stamped Price: $1.32
14 4606-926 Strap, Hold-Down Price: $4.84
16 4706-680 Spar, Front - w/o Decals - Right - Blue Price: $188.95
16 4706-681 Spar, Front - w/o Decals - Left - Blue Price: $188.95
17 4606-934 Foil, Spar - Right Price: $1.70
18 1621-241 Decal, Front Spar Price: $21.77
19 5706-582 Bezel, Intake - Right - White Price: $126.95
19 5706-583 Bezel, Intake - Left - White Price: $126.95
20 6606-263 Windshield Price: $208.95
21 1623-677 Rivet, Plastic Price: $1.45
22 4606-961 Bracket, Windshield - Hold-Down Price: $19.35
23 1623-129 Screw, Self-Tapping Price: $0.29
24 5606-277 Bracket, Windshield Price: $33.95
26 0623-845 Nut, Expansion Price: $2.66
27 0623-902 Screw, Machine Price: $1.08
28 0124-054 Cap, Snap - Washer Price: $1.32
29 0623-121 Screw, Machine Price: $5.21
30 5706-073 SUPPORT,WINDSHIELD-PTD BLK Price: $15.71
31 8050-242 Washer Price: $2.26
32 1623-837 Washer, Rubber Price: $10.66
33 1623-902 Screw, Machine Price: $11.89
34 0623-797 Screw, Self-Tapping Price: $0.42
35 1623-030 Clip, U-Nut Price: $1.08
36 5706-025 Fascia, Front Price: $84.95
37 0623-362 Rivet, Reinstallable Price: $0.71
38 0623-966 Screw, Self-Tapping Price: $1.20
39 8053-242 Washer, External Tooth Lock Price: $1.53
40 8427-602 Nut, Hex Price: $0.23
41 1623-775 SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y Price: $1.92
43 9611-386 Decal, Reflector - Right - Amber Price: $20.75
43 9611-387 Decal, Reflector - Left - Amber Price: $22.41
44 8408-025 SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y Price: $3.38
