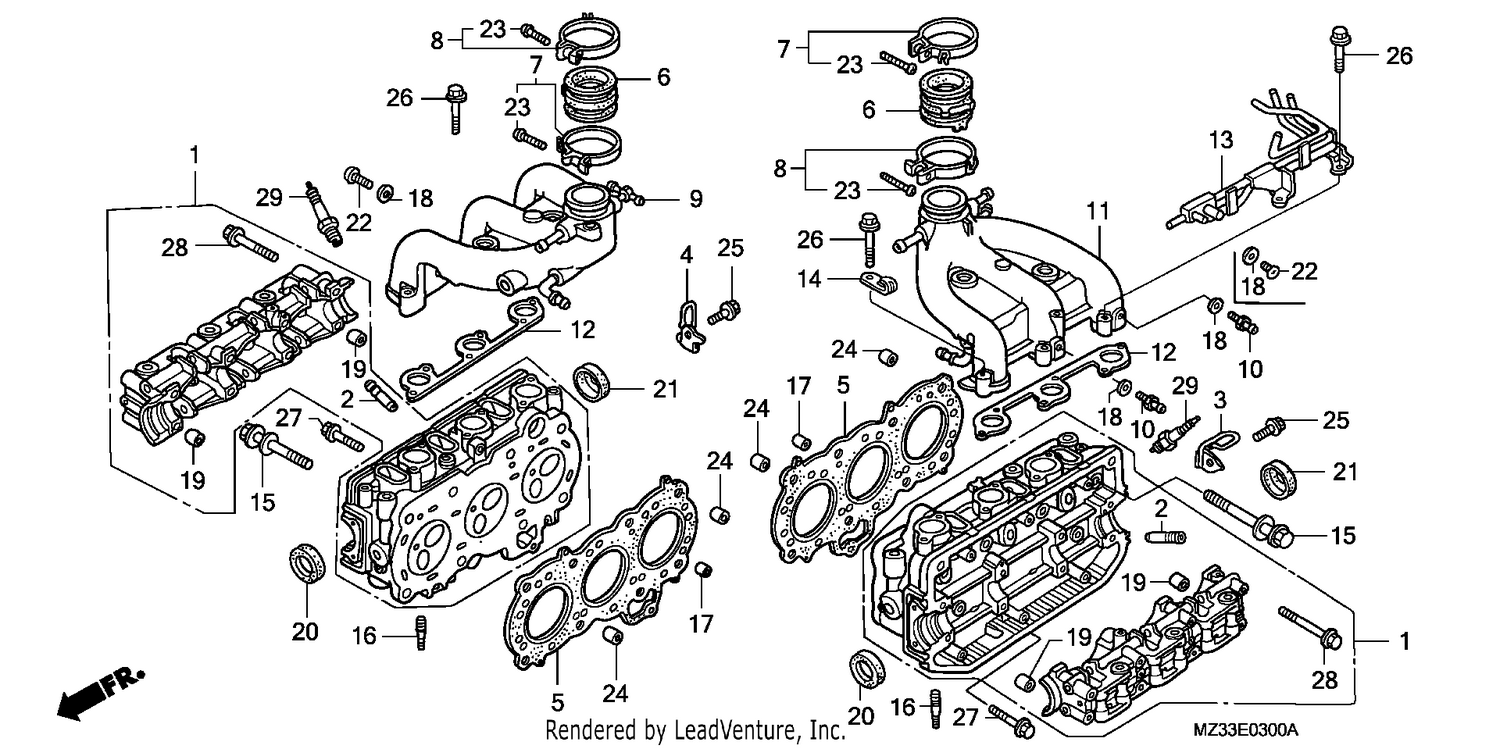

| Ref | Part Number | Description |
|---|
| 1 |
12200MT8601 |
HEAD ASSY., CYLINDER Price: Call Us |
| 2 |
12204MN5305 |
GUIDE, VALVE (O.S.) Price: Call Us |
| 3 |
12214MN5000 |
CLAMPER, TUBE (G) Price: Call Us |
| 4 |
12215MT2000 |
CLAMPER, TUBE (D) Price: Call Us |
| 5 |
12251MN5004 |
GASKET, CYLINDER HEAD Price: Call Us |
| 5 |
12251MN5013 |
GASKET, CYLINDER HEAD (NIPPON LEAKLESS) Price: Call Us |
| 5 |
12251MN5305 |
GASKET, CYLINDER HEAD (0.75/1.00) Price: Call Us |
| 6 |
16211MN5000 |
INSULATOR, CARBURETOR Price: Call Us |
| 7 |
16218MN5000 |
BAND, INSULATOR (A) Price: Call Us |
| 8 |
16219MN5000 |
BAND, INSULATOR (B) Price: Call Us |
| 9 |
17110MY4000 |
MANIFOLD COMP., R. INTAKE Price: Call Us |
| 10 |
17113MT8000 |
JOINT, PRESSURE BOOST (D) Price: Call Us |
| 11 |
17120MY4000 |
MANIFOLD COMP., L. INTAKE Price: Call Us |
| 12 |
17231MN5003 |
GASKET, INTAKE MANIFOLD (NIPPON LEAKLESS) Price: Call Us |
| 12 |
17231MN5004 |
GASKET, INTAKE MANIFOLD (MCCORD) Price: Call Us |
| 13 |
17380MT8600 |
PIPE A, INSTALL Price: Call Us |
| 14 |
32170443850 |
CLIP, WIRE HARNESS Price: Call Us |
| 15 |
90010MT8003 |
BOLT, FLANGE, 9X91 Price: Call Us |
| 16 |
90035MN5000 |
BOLT, STUD, 8-6X40 Price: Call Us |
| 17 |
90084MN5000 |
ORIFICE, 2.0 Price: Call Us |
| 18 |
90452323000 |
WASHER, SEALING, 5MM Price: Call Us |
| 19 |
90701GB4680 |
DOWEL PIN, 10X13.5 Price: Call Us |
| 20 |
91209371003 |
OIL SEAL, 27X43X9 Price: Call Us |
| 21 |
91209463013 |
CAP, SEAL, 43X9 Price: Call Us |
| 22 |
93500050080A |
SCREW, PAN, 5X8 Price: Call Us |
| 23 |
93500050250G |
SCREW, PAN, 5X25 Price: Call Us |
| 24 |
9430112200 |
DOWEL PIN, 12X20 Price: Call Us |
| 25 |
957010601408 |
BOLT, FLANGE, 6X14 Price: Call Us |
| 26 |
957010603508 |
BOLT, FLANGE, 6X35 Price: Call Us |
| 27 |
957010604008 |
BOLT, FLANGE, 6X40 Price: Call Us |
| 28 |
957010808000 |
BOLT, FLANGE, 8X80 Price: Call Us |
| 29 |
9806956916 |
PLUG, SPARK (DPR6EA-9) (NGK) Price: Call Us |
| 29 |
9806956926 |
PLUG, SPARK (X20EPR-U9) (DENSO) Price: Call Us |
| 29 |
9806957916 |
PLUG, SPARK (DPR7EA-9) (NGK) Price: Call Us |
| 29 |
9806958916 |
PLUG, SPARK (DPR8EA-9) (NGK) Price: Call Us |
| 29 |
9806958926 |
PLUG, SPARK (X24EPR-U9) (DENSO) Price: Call Us |
